DALI-15-100-400-F1P2

Colour Finish :

White

Qty: Order Item Add to Wishlist

Multiple Dimming Interface, Standard DALI logarithmic dimming curve, High power factor and low THD, High Efficiency, Comply with Safety Extra Low Voltage standard. Multiple current and wide voltage range, Indoor use only.

LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...

To Follow

Quick Spec

Brief Description	DALI, Push Dim, PWM 1.05-15W Current Dimmable Driver DC:3-54V 100-400mA output, IP20.
Colour Finish	White
Item Nett Weight (kg)	0.15kg
Length (mm)	175mm
Width (mm)	44mm
Height (mm)	30mm
Protection Class	Class 2 - Double Insulated
Dimmable	Yes - Suitable Dimmer Required
IP Rating	IP20
Working Humidity (%RH)	20 - 95%RH
Average Life (hrs)	50000hrs
Warranty (yrs)	5yrs

Features

Features, Will be added soon

Full Specifications

Marketing Information

Collection Group	Constant Current
Barcode	5056037131014
Brief Description	DALI, Push Dim, PWM 1.05-15W Current Dimmable Driver DC:3-54V 100-400mA output, IP20.

Physical Characteristics

Colour Finish	White

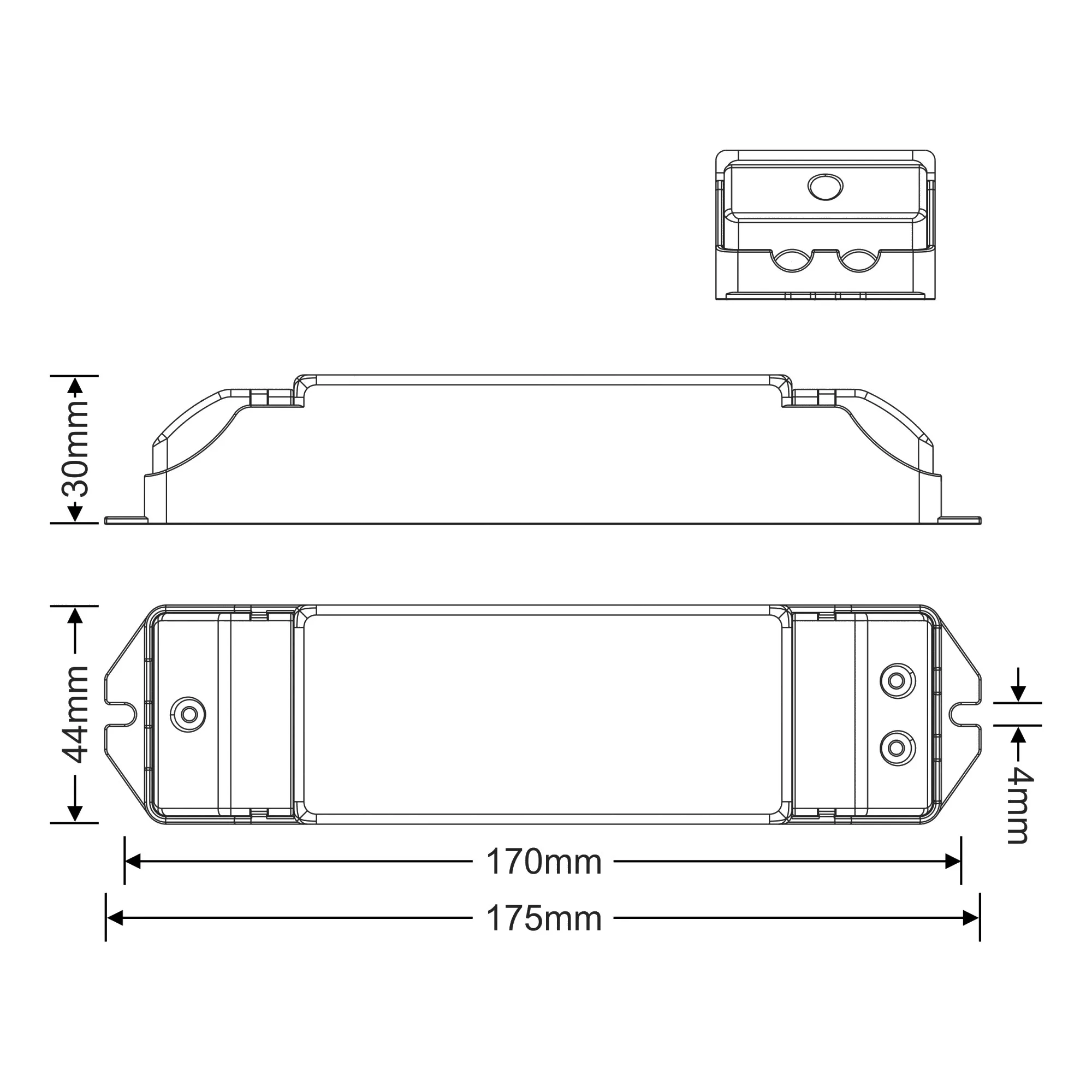

Mechanical Specification

Item Nett Weight (kg)	0.15kg
Length (mm)	175mm
Width (mm)	44mm
Height (mm)	30mm

Driver Specification

Type of Driver	Constant Current
Dimming Range (%)	0-100%
Power Factor (?)	>0.99 (±5%)
Constant Current Output (mA)	100/120/150/200/250/300/350/400mA
Min/Max. Voltage Output (V)	3-54V
Load Range (W)	0.3-15W
Maximum Output Distance (m)	2m
Ta (°C)	-30°C to 55°C
Tc (°C)	+75°C
Casing Material	Polycarbonate
Connection Terminal	Green Terminal
Average Life Of Driver (hrs)	50000hrs
Dimming Protocol	DALI, 0/1-10V, PWM, Push Dim
Efficiency	>85%

Electrical & Safety Specification

Protection Class	Class 2 - Double Insulated
Input Voltage (V)	100-240V~50/60Hz
Input Current (A)	0.0652A
Dimmable	Yes - Suitable Dimmer Required
IP Rating	IP20

Sensor Specification

Working Humidity (%RH)	20 - 95%RH

Quality Standards

Average Life (hrs)	50000hrs
Warranty (yrs)	5yrs
UKCA/CE	Yes
Rohs	Yes
SELV	Yes
EMV/EMC	Yes
IEC Compliant	IEC/EN61347-1, IEC/EN61347-2-13, En55015, EN61000-3-2 Class C, IEC61000-3-3, EN61000-4-2,3,4,5,6,8,11 EN61547.

Carton Information

Number of Cartons	1
Carton Length (cm)	17.8cm
Carton Width (cm)	4.8cm
Carton Height (cm)	3.3cm
Carton CBM	0.0002
Carton Nett Weight (kg)	0.15kg (±5%)
Carton Gross Weight (kg)	0.160kg (±5%)

Additional Information

Additional Details	Short circuit / Over-heat / Over load protection, Class 2 power supply, DALI bus standard: IEC62386-101, 102, 207.
UK Commodity Code	8504401400
Country of Origin	China
