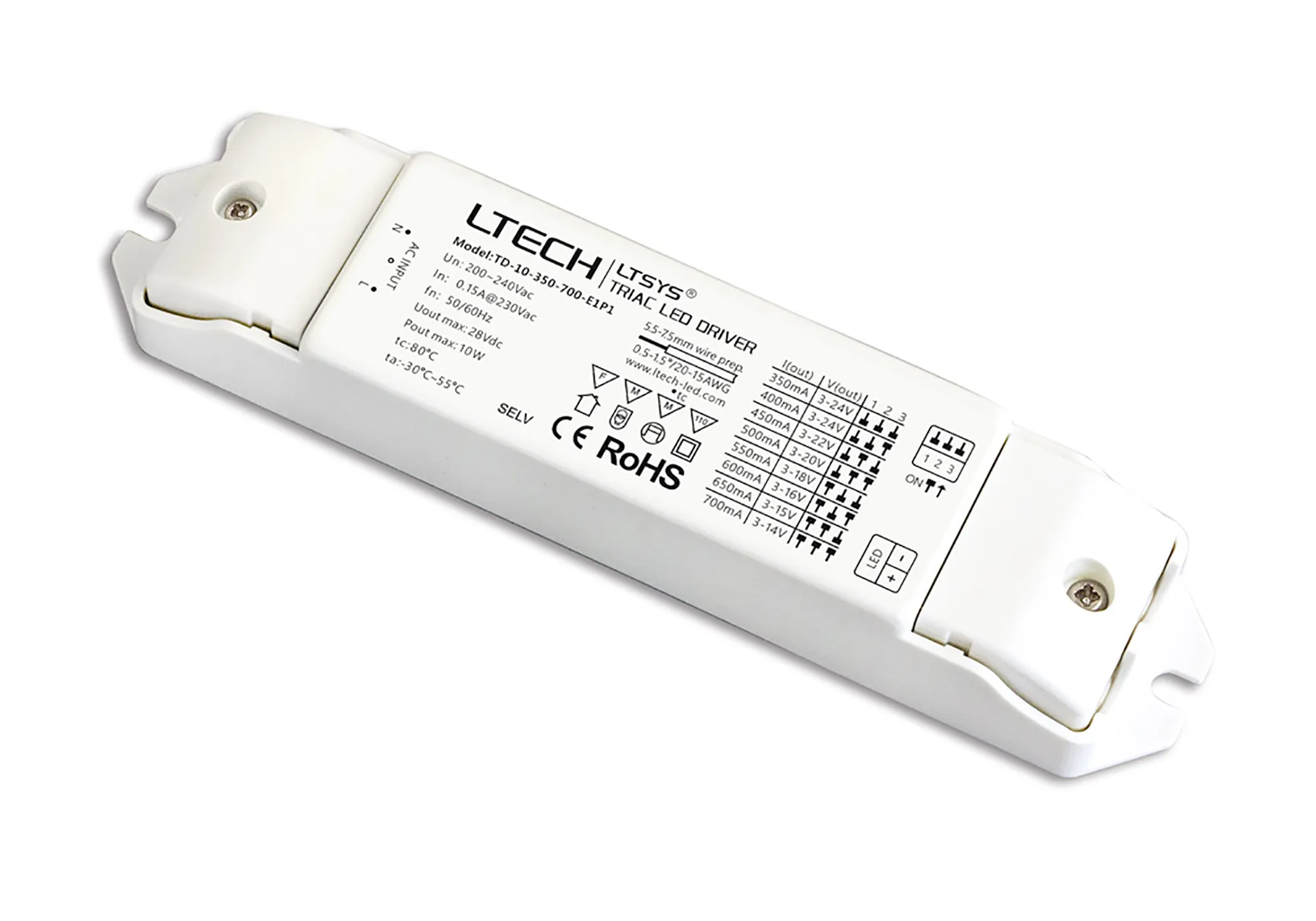

Triac/ELV PWM 1.05-10W C. Current Dimmable Driver, 3-24Vdc, 350-700mA, 200-240Vac input, IP44.

Triac/ELV PWM, 1.05-10W, Constant Current Dimmable Driver, 350/400/450/500/550/600/650/700mA, DC:3-24V, EFF>82%, 200-240Vac input, IP44, 3yrs Warranty

TD-10-350-700-E1P1

Wattage :

Qty: Order Item Add to Wishlist

Constant current TRIAC driver with built-in power supply, Multiple current, wide voltage, compatible with a variety of LED lights, Class 2 power supply. Full protective plastic housing, Short circuit / Over-heat / Over load protection. Compliant with Safety Extra Low Voltage standard
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionTriac/ELV PWM 1.05-10W C. Current Dimmable Driver, 3-24Vdc, 350-700mA, 200-240Vac input, IP44.
Colour FinishWhite
Item Nett Weight (kg)0.07kg

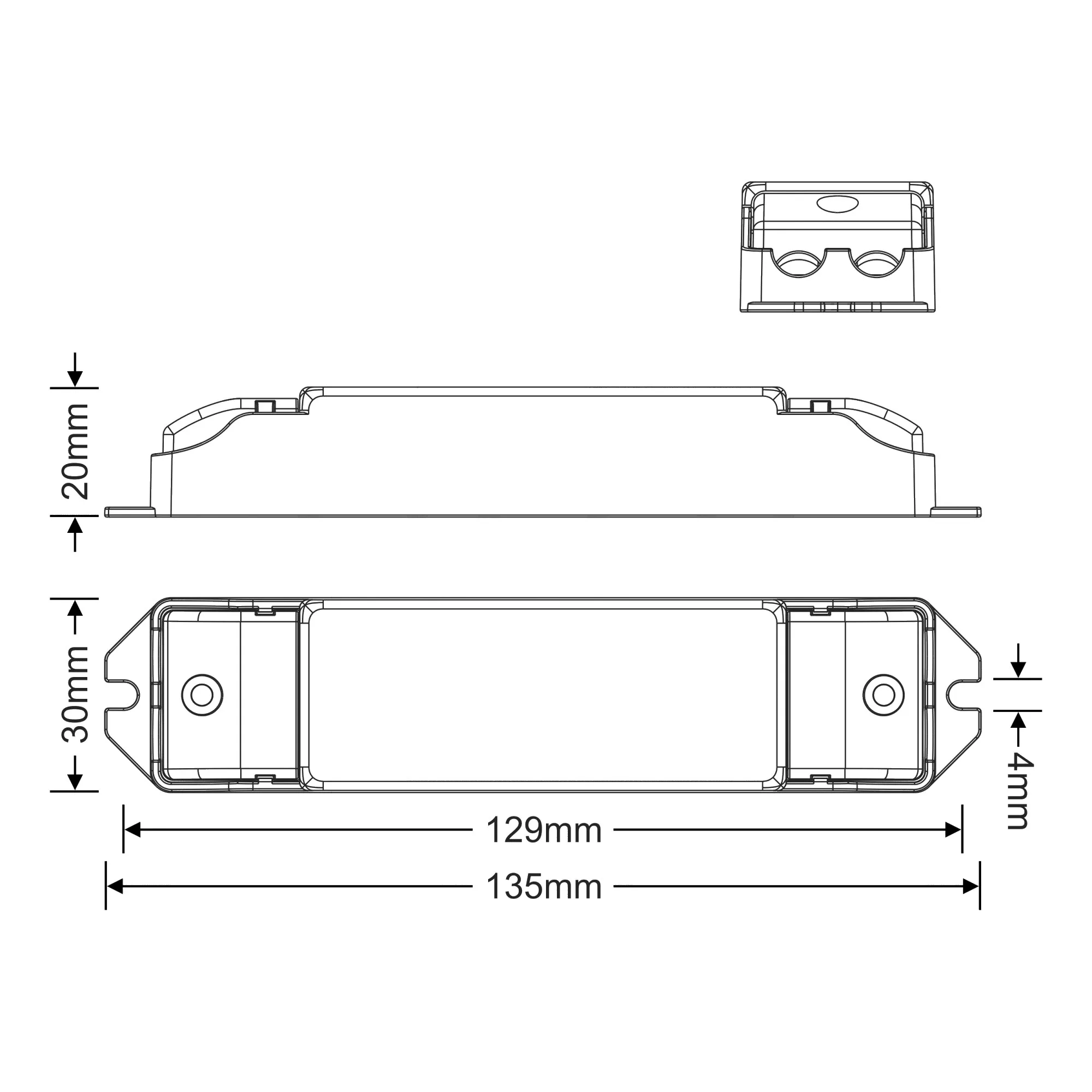

Length (mm)135mm
Width (mm)30mm
Height (mm)20mm
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP44
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupConstant Current
Barcode
Brief DescriptionTriac/ELV PWM 1.05-10W C. Current Dimmable Driver, 3-24Vdc, 350-700mA, 200-240Vac input, IP44.
Colour FinishWhite
Item Nett Weight (kg)0.07kg
Length (mm)135mm
Width (mm)30mm
Height (mm)20mm
Type of DriverConstant Current
Dimming Range (%)0-100%
Power Factor (?)N/A (±5%)
Constant Current Output (mA)350/400/450/500/550/600/650/700mA
Min/Max. Voltage Output (V)3-24V
Load Range (W)1.05-10W
Typical Current Ripple (%)<2%
Maximum Output Distance (m)2m
Ta (°C)-30°C to 55°C
Tc (°C)+80°C
Casing MaterialPolycarbonate
Connection TerminalScrew Terminal
Average Life Of Driver (hrs)50000hrs

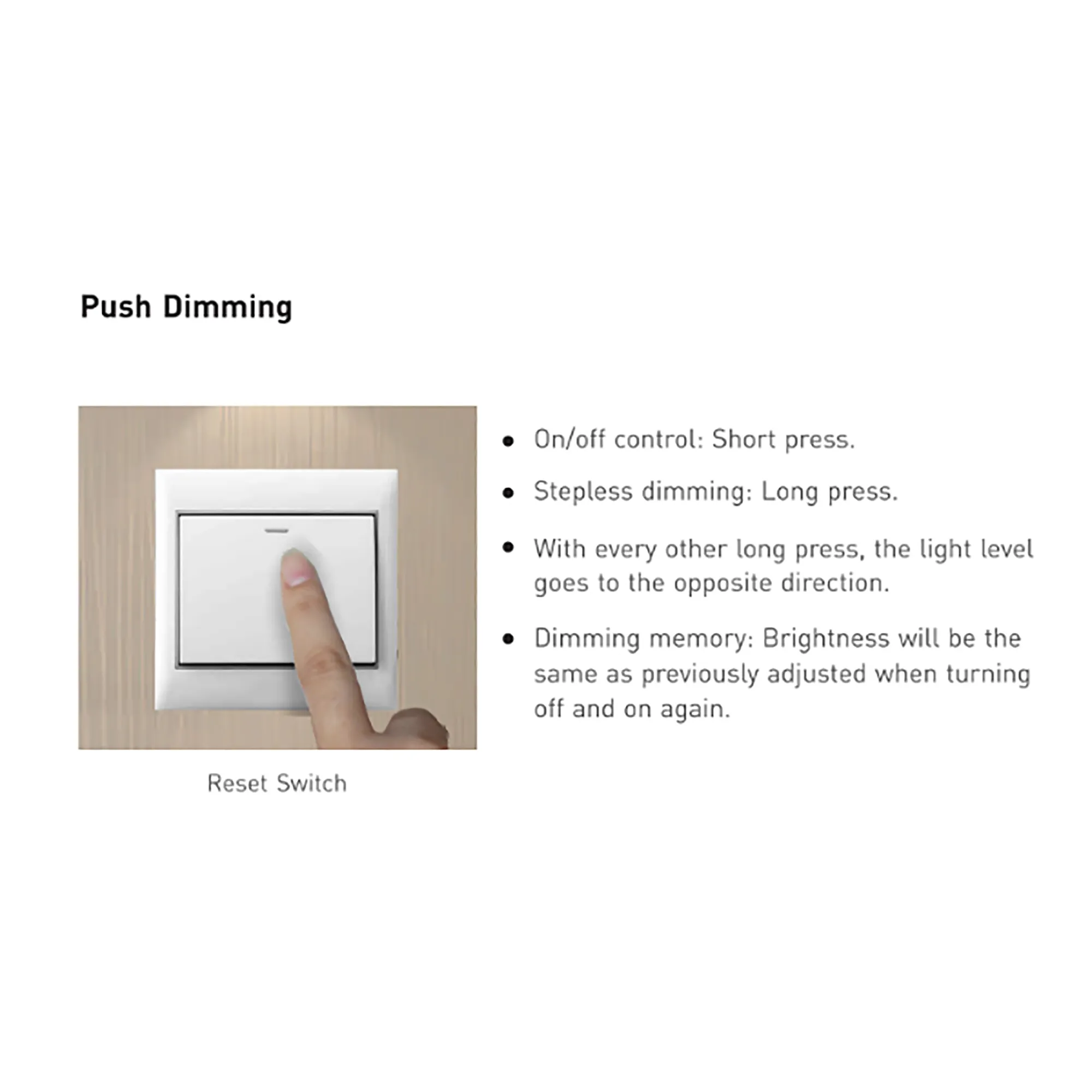

Dimming ProtocolTriac/ELV, PWM
Efficiency>82%
Protection ClassClass 2 - Double Insulated
Input Voltage (V)200-240V~50/60Hz
Input Current (A)0.15A
Battery RequiredNo
Battery SuppliedNo
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP44
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
SELVYes
EMV/EMCYes
IEC CompliantIEC/EN61347-1, IEC/EN61347-2-13, EN55015, EN61000-3-2 Class C, IEC61000-3-3, EN61000-4-2,3,4,5,6,8,11 EN61548
Number of Cartons1
Carton Length (cm)14cm
Carton Width (cm)3.4cm
Carton Height (cm)2.3cm
Carton CBM0.0001
Carton Nett Weight (kg)0.07kg (±5%)
Carton Gross Weight (kg)0.080kg (±5%)
Additional Details8 output currents optional. Withstand Voltage I/P-O/P-3750Vac , Isolation Resistance-I/P-O/P: 100MO/500VDC/25°C/70%RH
UK Commodity Code8504401400
Country of OriginChina
