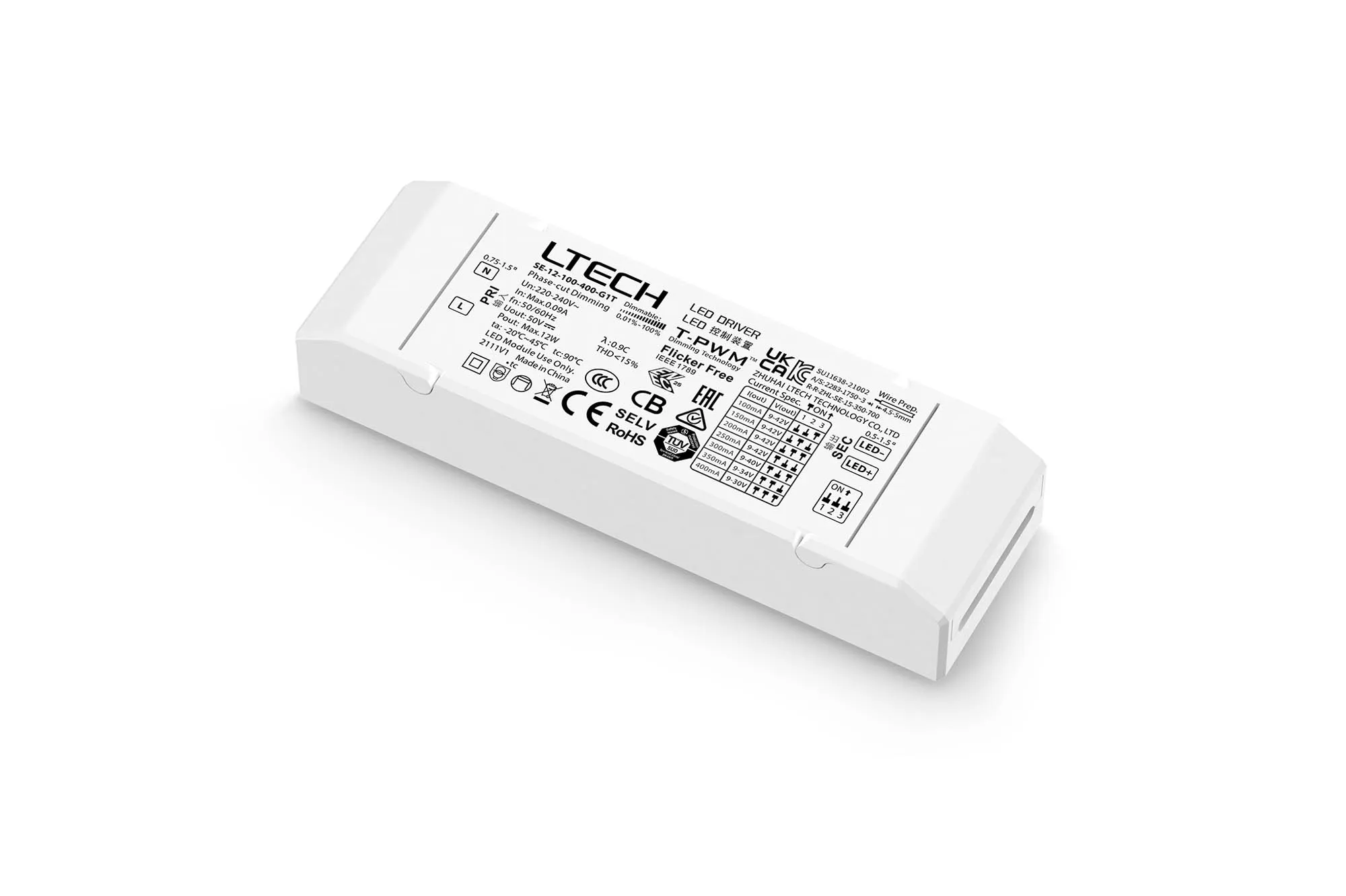

Triac/ELV Push Dim PWM 12W Constant Current Dimmable Driver 9-42V 100-400mA, IP20.

Triac/ELV, PWM,0.9-12W, C. Current Dimmable Driver, 100/150/200/250/300/350/400mA, DC:9-42Vdc, EFF>78%, 5yrs Warranty

SE-12-100-400-G1T

Qty: Order Item Add to Wishlist

Constant Current Leading edge / Trailing edge Triac, Push dimming, T-PWM digital dimming, Class 2 power supply. Full protective plastic housing, Short circuit, Over-heat and Over load protections. Compliant with Safety Extra Low Voltage standard, Wide Dimming Range, Linear Dimming Curve, Intelligent power life protection.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionTriac/ELV Push Dim PWM 12W Constant Current Dimmable Driver 9-42V 100-400mA, IP20.
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupConstant Current
Brief DescriptionTriac/ELV Push Dim PWM 12W Constant Current Dimmable Driver 9-42V 100-400mA, IP20.
Type of DriverConstant Current
Constant Current Output (mA)100/150/200/250/300/400mA
Load Range (W)0.9-12W
Average Life Of Driver (hrs)50000hrs
Dimming ProtocolTriac/ELV, Push Dim, PWM
Input Voltage (V)200-240V~50/60Hz
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Number of Cartons1
UK Commodity Code8504401400
Country of OriginChina
