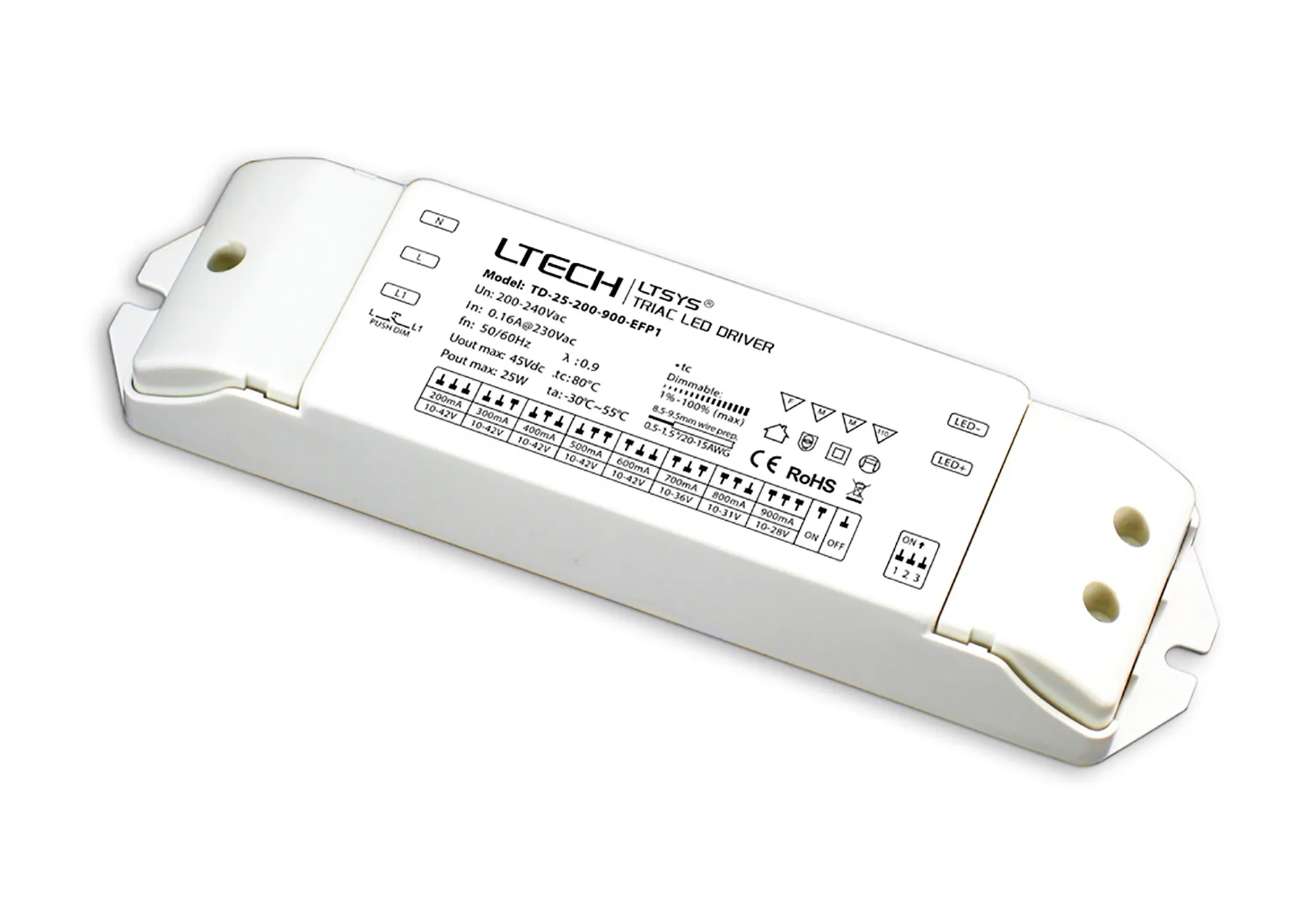

Triac/ELV Push Dim PWM 2-25W 45V 200-900mA Constant Current Dimmable Driver, IP44.

Intelligent LED driver, Triac/ELV, Push Dim, PWM, 2-25W, Constant Current Dimmable Driver, 200/300/400/500/600/700/800/900mA, 83% efficiency, IP44

TD-25-200-900-EFP1

Wattage :

Qty: Order Item Add to Wishlist

Constant Current Leading edge / Trailing edge Triac, Push dimming, T-PWM digital dimming, Class 2 power supply. Full protective plastic housing, Short circuit, Over-heat and Over load protections. Compliant with Safety Extra Low Voltage standard, Wide Dimming Range, Linear Dimming Curve, Intelligent power life protection.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionTriac/ELV Push Dim PWM 2-25W 45V 200-900mA Constant Current Dimmable Driver, IP44.
Colour FinishWhite
Item Nett Weight (kg)0.15kg

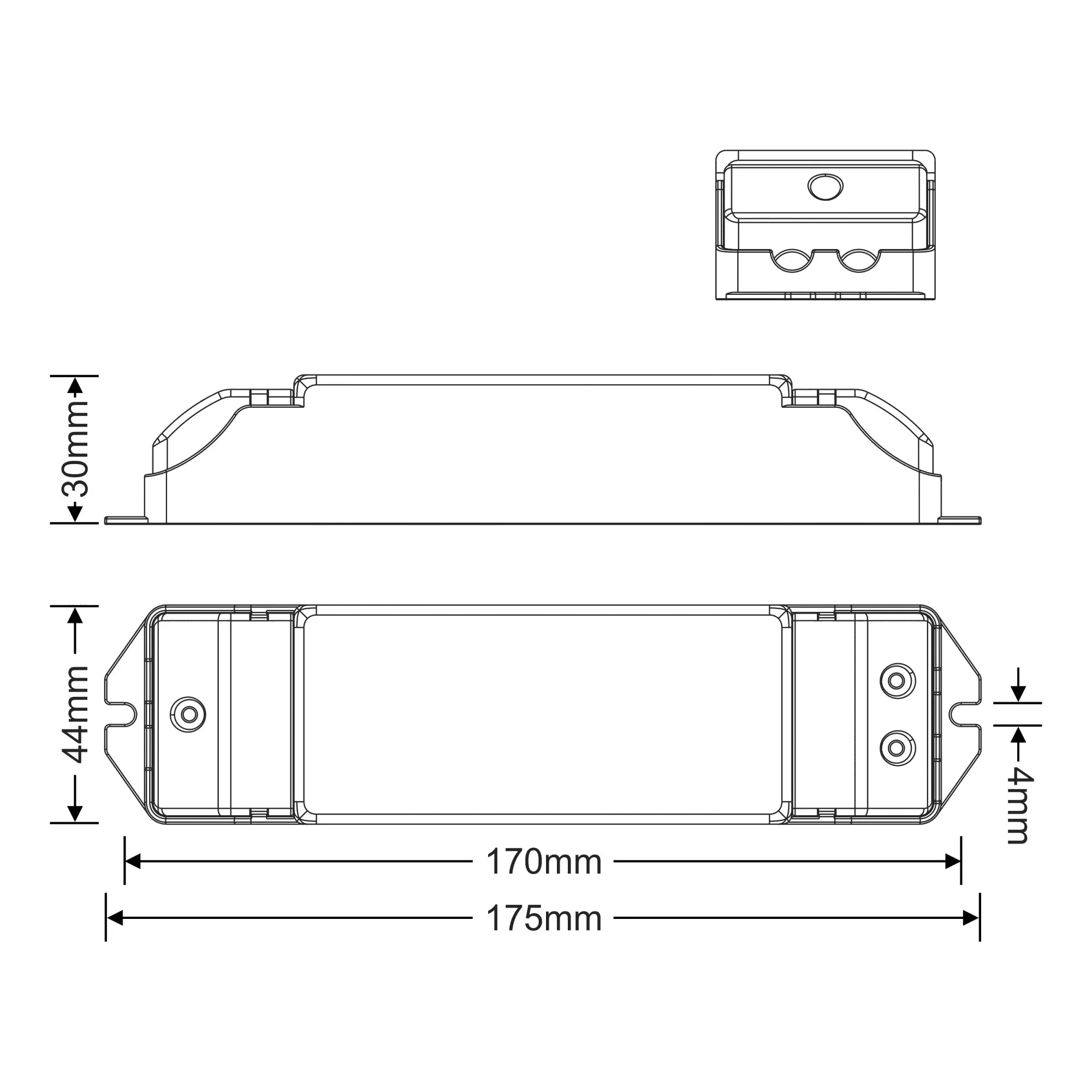

Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP44
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupConstant Current
Barcode
Brief DescriptionTriac/ELV Push Dim PWM 2-25W 45V 200-900mA Constant Current Dimmable Driver, IP44.
Colour FinishWhite
Item Nett Weight (kg)0.15kg
Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
Type of DriverConstant Current
Dimming Range (%)0-100%
Power Factor (?)>0.90 (±5%)

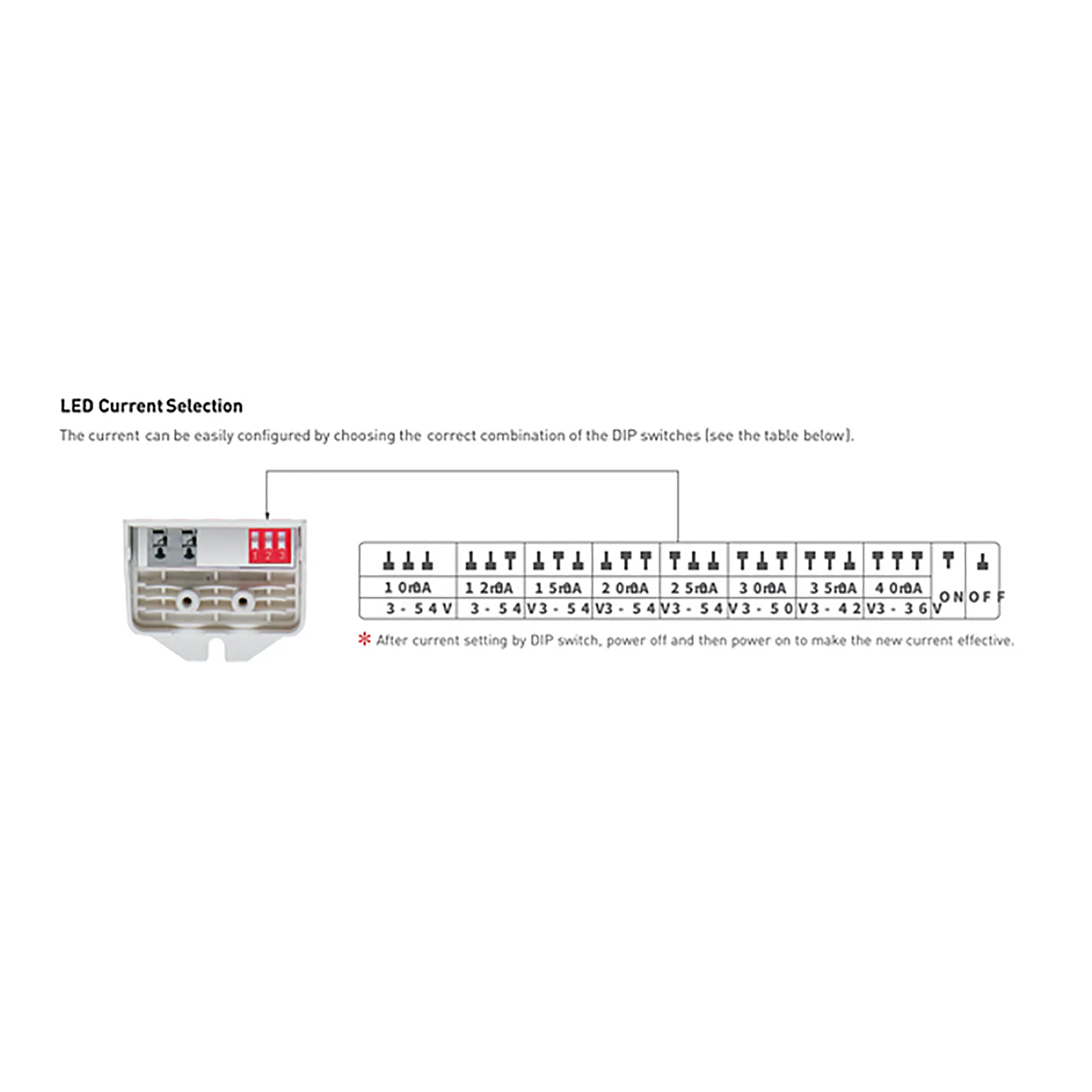

Constant Current Output (mA)200/300/400/500/600/700/800/900mA
Min/Max. Voltage Output (V)10-45V
Load Range (W)2-25W
Typical Current Ripple (%)<2%
Maximum Output Distance (m)2m
Ta (°C)-20°C to 50°C
Tc (°C)+85°C
Casing MaterialPolycarbonate
Connection TerminalPush Terminal
Average Life Of Driver (hrs)50000hrs

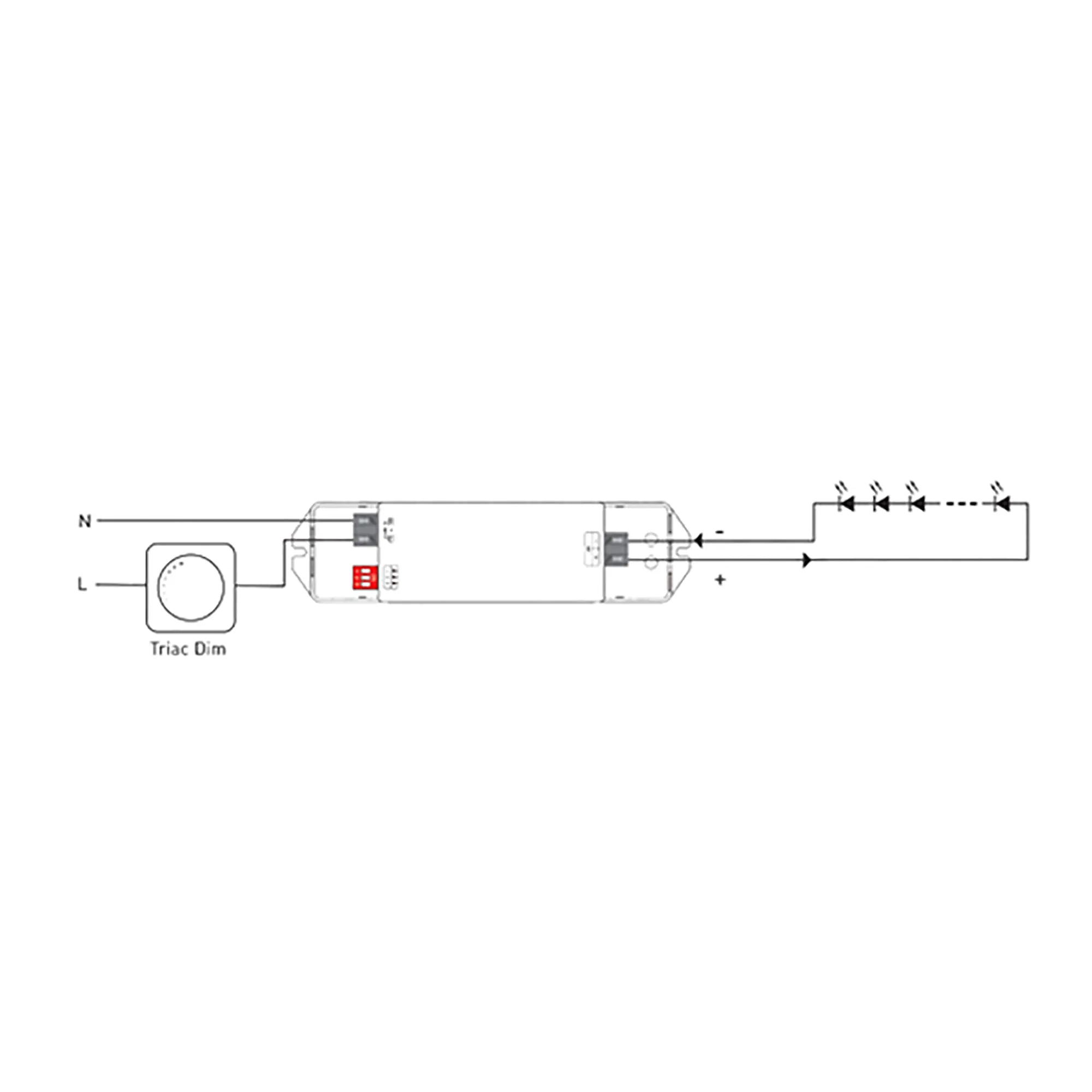

Dimming ProtocolTriac/ELV, Push Dim, PWM
Efficiency>83%
Protection ClassClass 2 - Double Insulated
Input Voltage (V)200-240V~50/60Hz
Input Current (A)0.16A
Battery RequiredNo
Battery SuppliedNo
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP44
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
SELVYes
EMV/EMCYes
IEC CompliantIEC/EN61347-1, IEC/EN61347-2-13, IEEE 1789
Number of Cartons1
Carton Length (cm)17.8cm
Carton Width (cm)4.8cm
Carton Height (cm)3.3cm
Carton CBM0.0002
Carton Nett Weight (kg)0.15kg (±5%)
Carton Gross Weight (kg)0.160kg (±5%)
Additional DetailsMulti-current & wide voltage, Innovative thermal management technology. Flicker-free (IEEE 1789), achieve the level of exemption assessment. Built-in SCM, dimming curve and smoothing time can be customized.100MO/500VDC/25°C/70%RH Isolation Resistance, I/P-O/P: 3750Vac Withstand Voltage.
UK Commodity Code8504401400
Country of OriginChina
