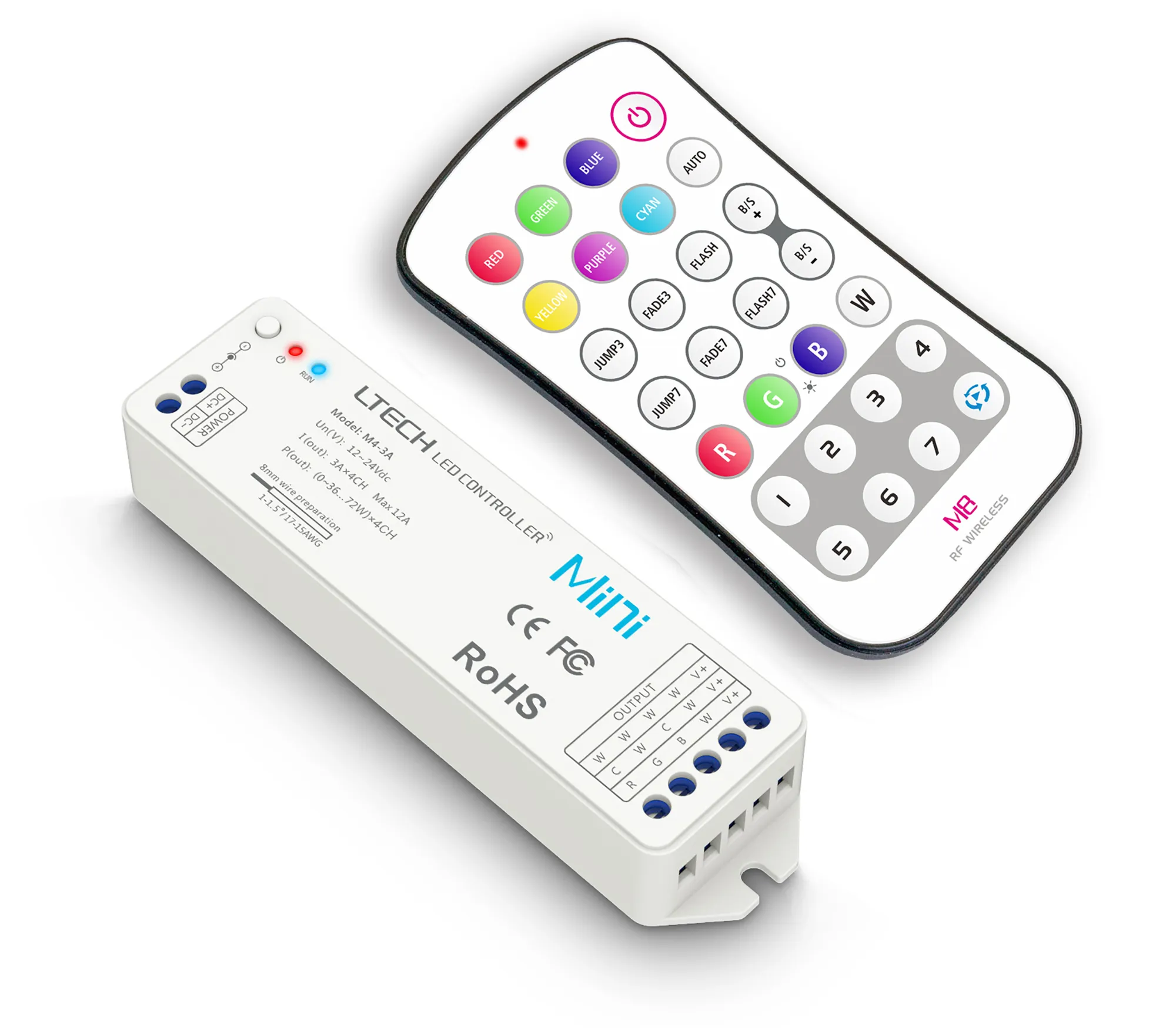

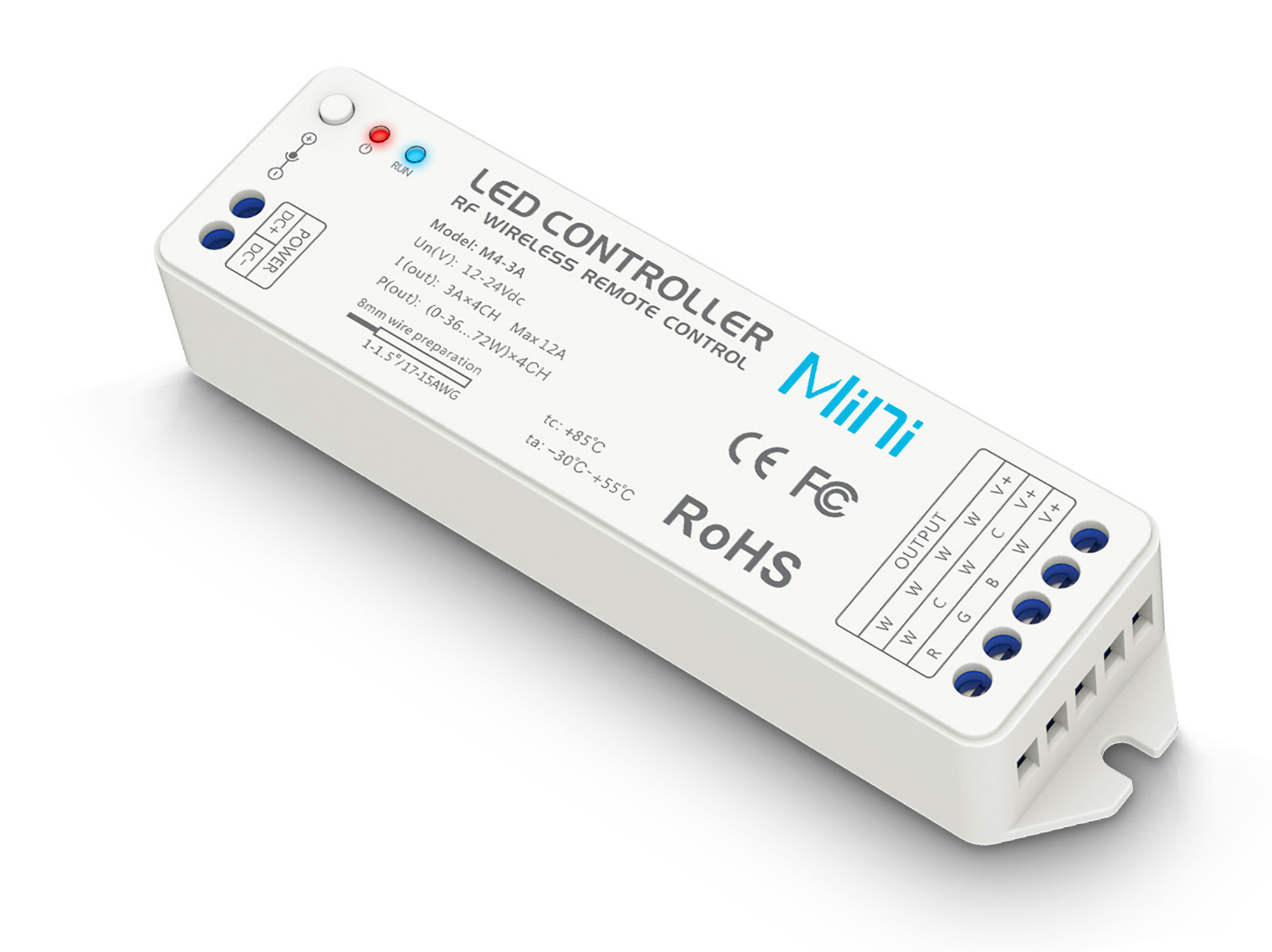

CV Receiving Controller for RGBW 12/24V DC 3A x 4CH 144W/288W IP20

CV receiving controller, 144/288W, 12A (3A x4CH), Compatible with M4/M8, PWM-CV output, 40m remote range, IP20, 3yrs Warranty

M4-3A

Qty: Order Item Add to Wishlist

Compact size constant voltage RF receiver, Wide input range. Short circuit, Reverse polarity, overload protections. Stable dimming using PWM output .
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionCV Receiving Controller for RGBW 12/24V DC 3A x 4CH 144W/288W IP20
Colour FinishWhite
Item Nett Weight (kg)0.06kg

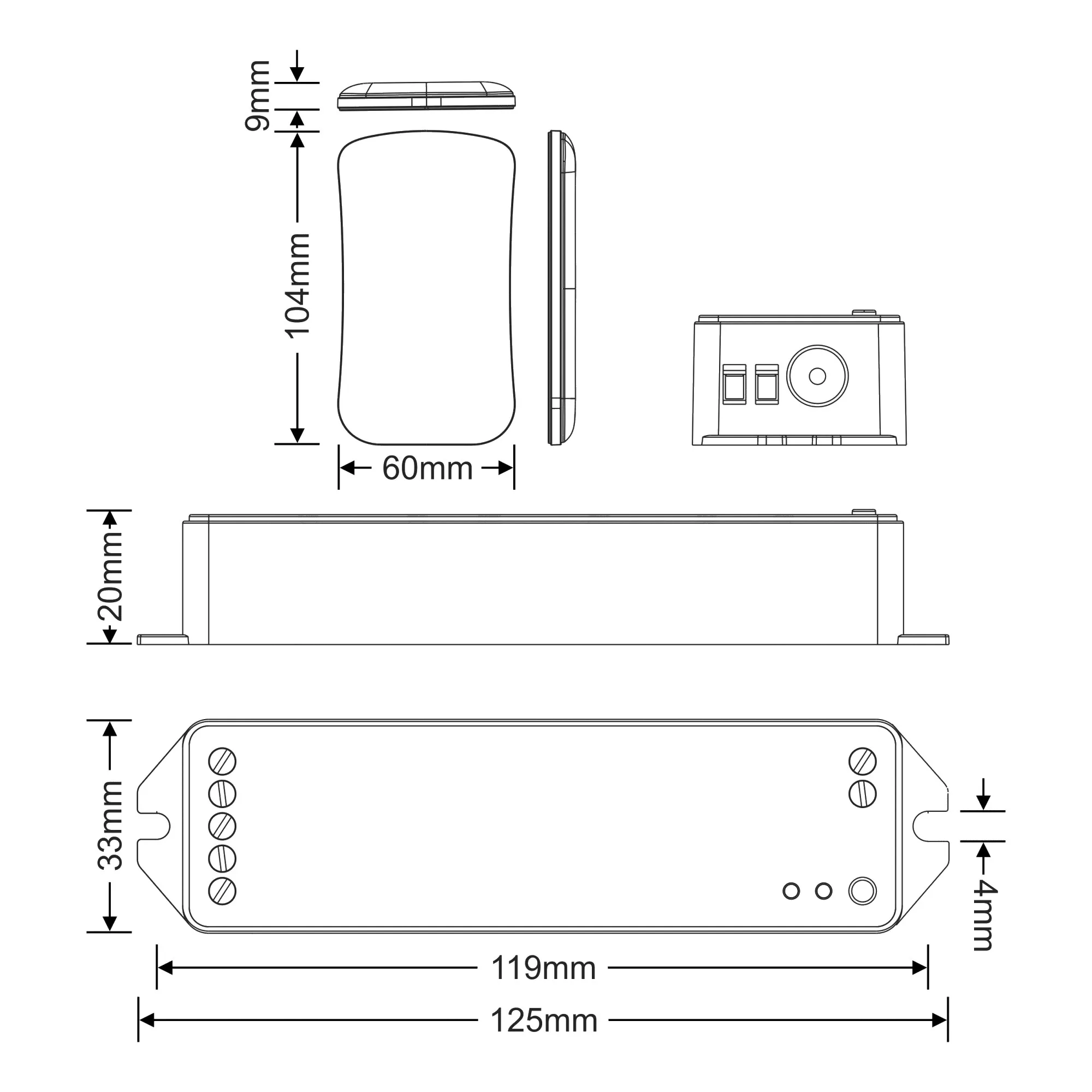

Length (mm)125mm
Width (mm)33mm
Height (mm)20mm
IP RatingIP20
Detection Distance (m)40m
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupWireless Driver
Barcode5056037131069
Brief DescriptionCV Receiving Controller for RGBW 12/24V DC 3A x 4CH 144W/288W IP20
Colour FinishWhite
Item Nett Weight (kg)0.06kg
Length (mm)125mm
Width (mm)33mm
Height (mm)20mm
Type of DriverConstant Voltage
Dimming Range (%)0-100%
Constant Voltage Output (V)12V/24V
Max. Current Output (A)12A(3A x 4CH)
Min/Max. Voltage Output (V)12-24V
Load Range (W)0-288W
Maximum Output Distance (m)2m
Ta (°C)-30°C to 55°C
Tc (°C)+75°C
Casing MaterialPolycarbonate
Connection TerminalGreen terminal
Average Life Of Driver (hrs)50000hrs
Dimming ProtocolRF, PWM-CV
Input Voltage (V)12/24V DC
Battery RequiredCR2033
Battery SuppliedYes
IP RatingIP20
Detection Distance (m)40m
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
Additional CertificationFCC
IEC CompliantETSI EN 301 489-1 V1.9.2 (2011-09), ETSI EN 301 489-3 V1.4.1 (2002-08)
Number of Cartons1
Carton Length (cm)12.5cm
Carton Width (cm)3.3cm
Carton Height (cm)2.0cm
Carton CBM0.0000825
Carton Nett Weight (kg)0.06kg (±5%)
Carton Gross Weight (kg)0.08kg (±5%)
Additional DetailsOne receiver compatible with eight different functions of the remote, that is use one receiver can experience dimming, colour temperature and RGB/RGBW control. 4096/road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the light is more gentle, dynamic changing modes become more rich and colourful.
UK Commodity Code8537109090
Country of OriginChina
