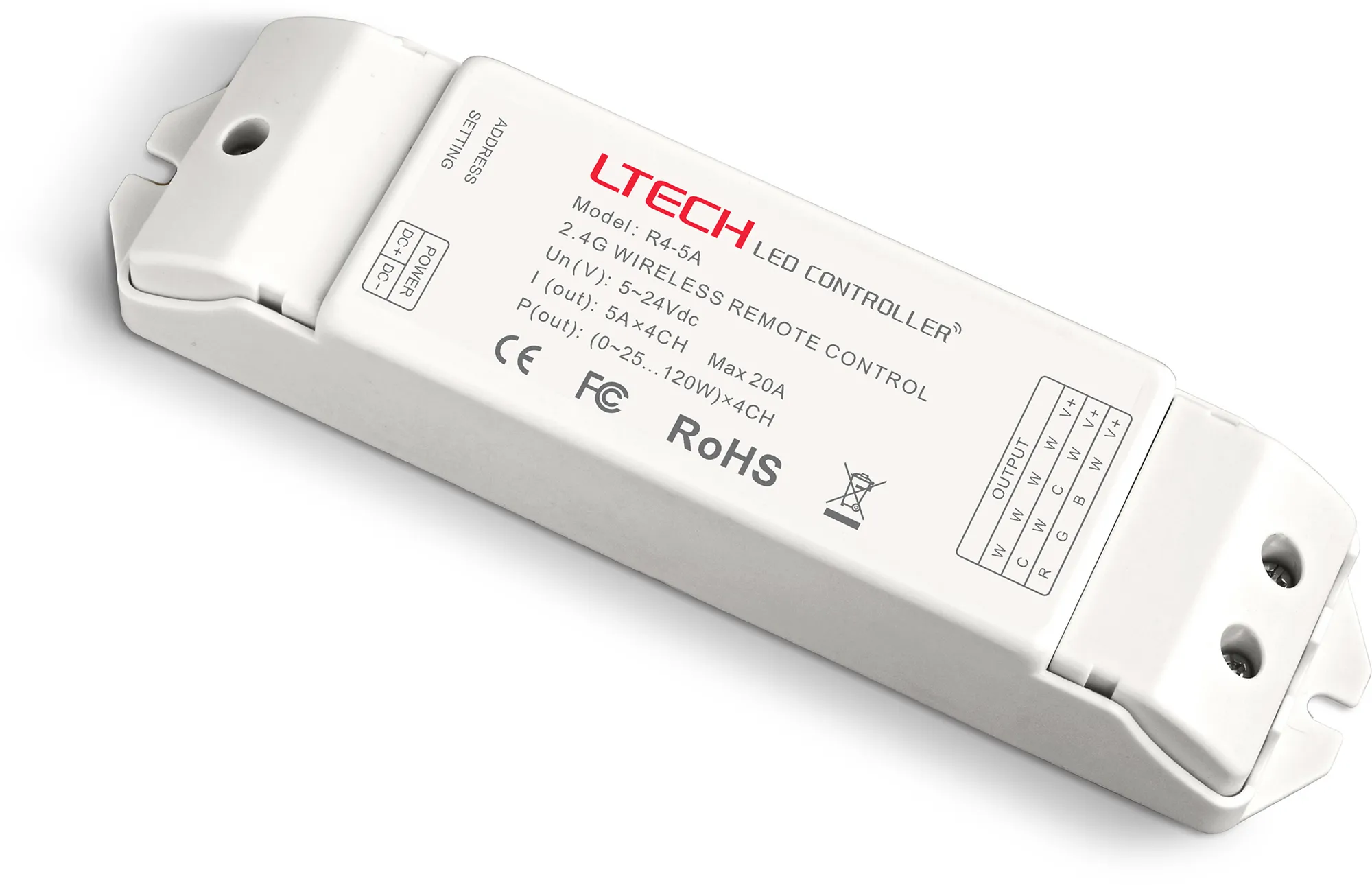

RF 2.4GHz Wireless Receiver CV 5/12/24V DC 5Ax4CH 100/240/480W, Support Wi-Fi 104, DX5 or DX8, IP44.

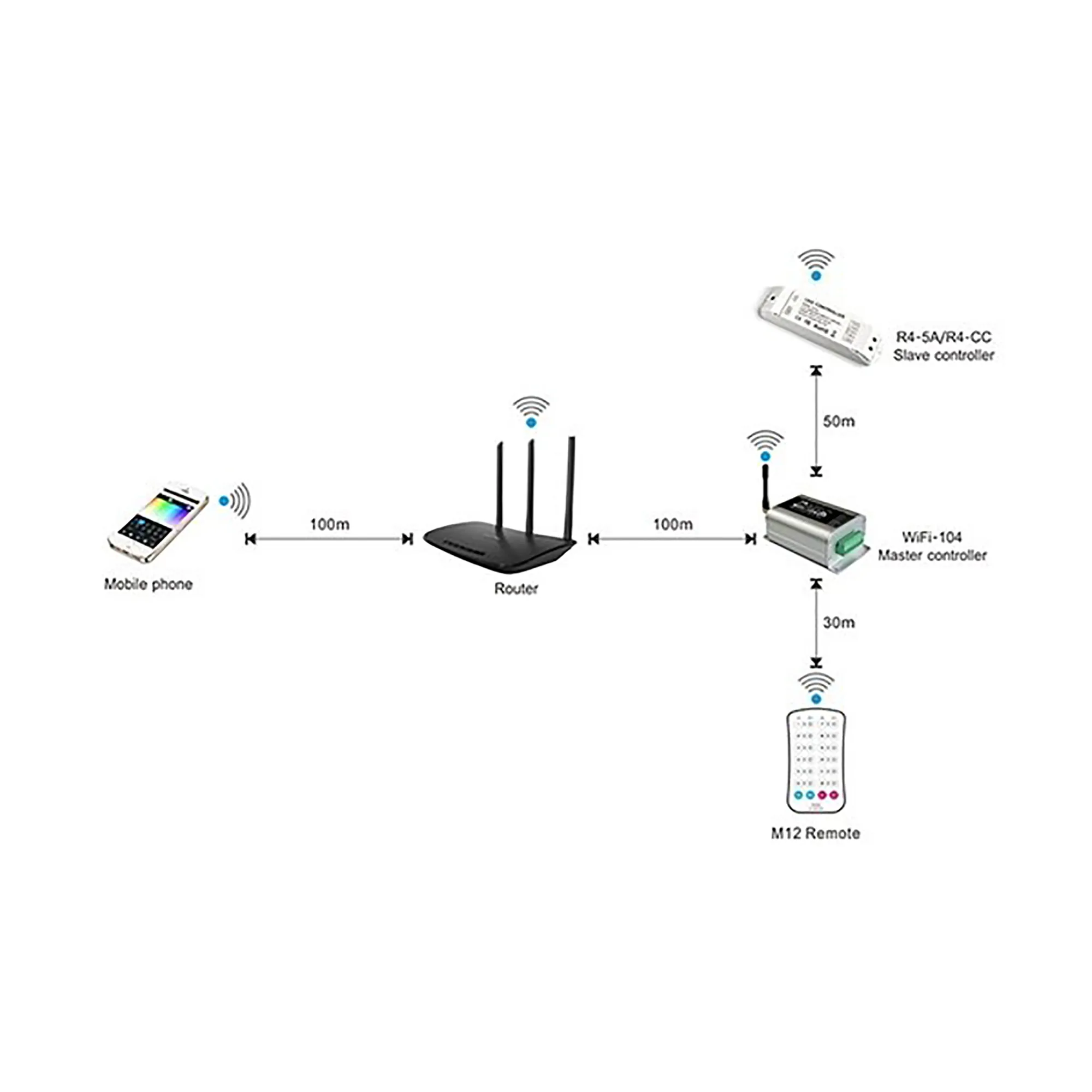

CV RF Wireless Receiver, Compatible with Wifi 104, DX5 or DX8 controllers, 50m range for WiFi 104 and 30m range for DX6 and DX8, IP44, 3yrs Warranty.

R4-5A

Qty: Order Item Add to Wishlist

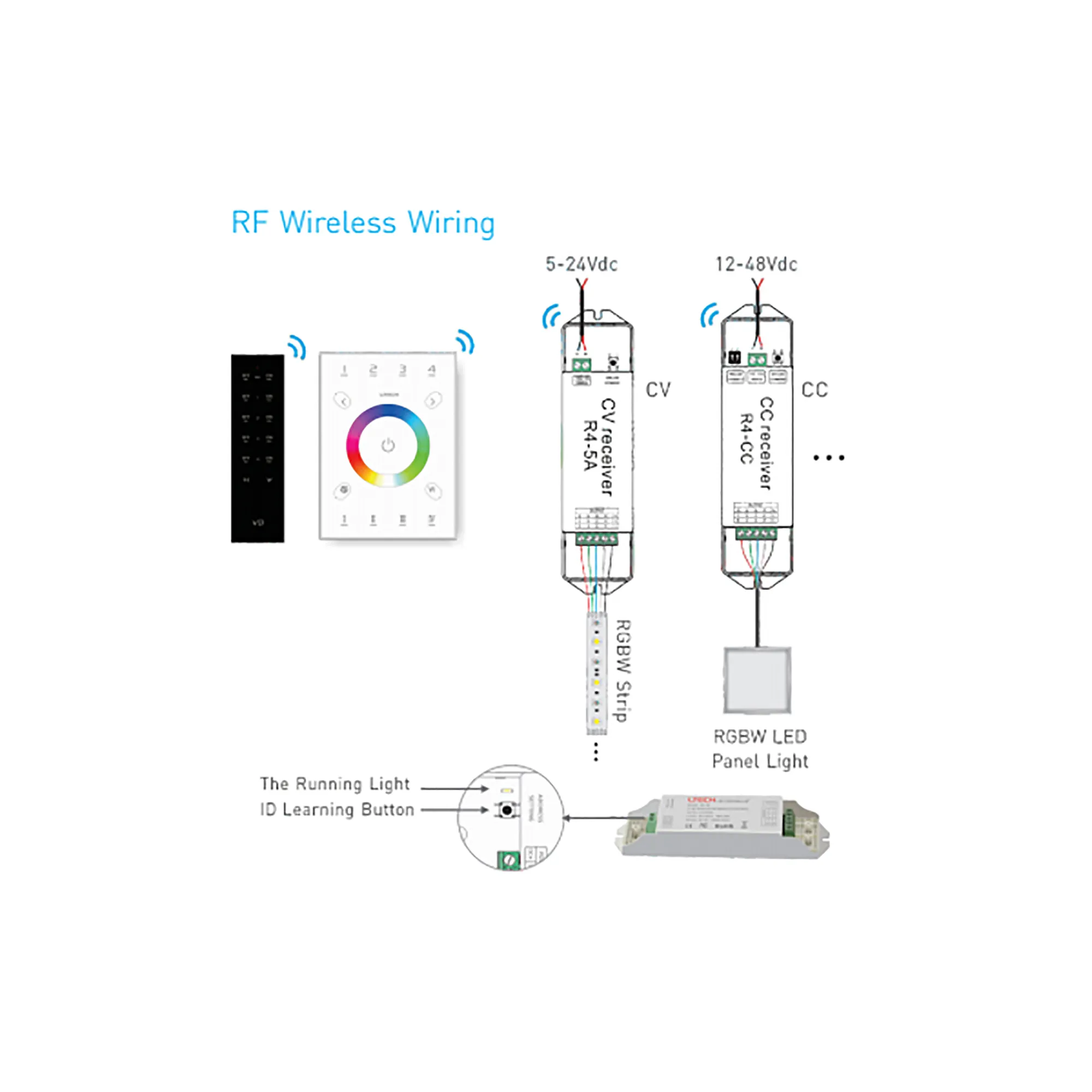

RF 2.4GHz wireless signal, no need signal cable. Compact Size, Easy configuration, Wide Operating temperature, PWM-CV output , Support V series remote controlling, Support DX/UX series touch panel controlling.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionRF 2.4GHz Wireless Receiver CV 5/12/24V DC 5Ax4CH 100/240/480W, Support Wi-Fi 104, DX5 or DX8, IP44.
Colour FinishWhite
Item Nett Weight (kg)0.150kg

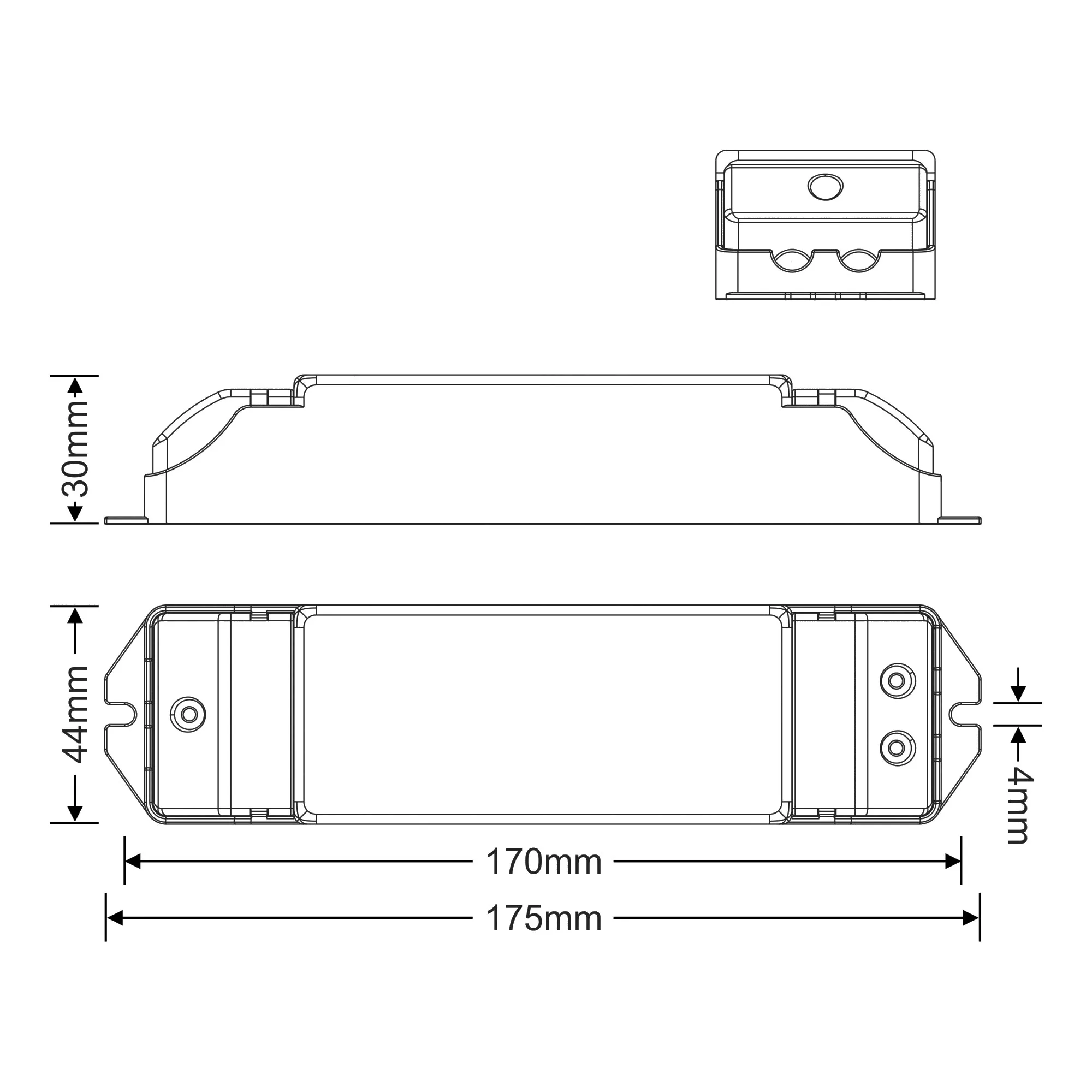

Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
DimmableYes - Item Is a Dimmable Driver
Dimmer IncludedNo
IP RatingIP20
Detection Distance (m)50/30m
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupWireless Driver
Barcode5056037130963
Brief DescriptionRF 2.4GHz Wireless Receiver CV 5/12/24V DC 5Ax4CH 100/240/480W, Support Wi-Fi 104, DX5 or DX8, IP44.
Colour FinishWhite
Item Nett Weight (kg)0.150kg
Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
Type of DriverConstant Voltage
Dimming Range (%)0-100%
Constant Voltage Output (V)5V/12V/24V
Max. Current Output (A)20A(5A x 4CH)
Min/Max. Voltage Output (V)5-24V
Load Range (W)0-480W
Maximum Output Distance (m)2m
Ta (°C)-30°C to 55°C
Tc (°C)+75°C
Casing MaterialPolycarbonate
Connection TerminalScrew
Average Life Of Driver (hrs)50000hrs
Dimming Protocol2.4GHz RF
Efficiency>0.85
Input Voltage (V)5/12/24V DC
Input Current (A)20A
Battery RequiredNo
Battery SuppliedNo
DimmableYes - Item Is a Dimmable Driver
Dimmer IncludedNo
IP RatingIP20
Detection Distance (m)50/30m
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
Additional CertificationFCC
Number of Cartons1
Carton Length (cm)17.8cm
Carton Width (cm)4.8cm
Carton Height (cm)3.3cm
Carton CBM0.000281
Carton Nett Weight (kg)0.150kg (±5%)
Carton Gross Weight (kg)0.160kg (±5%)
Additional DetailsOver current, Short circuit protection, Over temperature and Open circuit protection. Support WiFi-104 gateway controlling.
UK Commodity Code8537109090
Country of OriginChina
