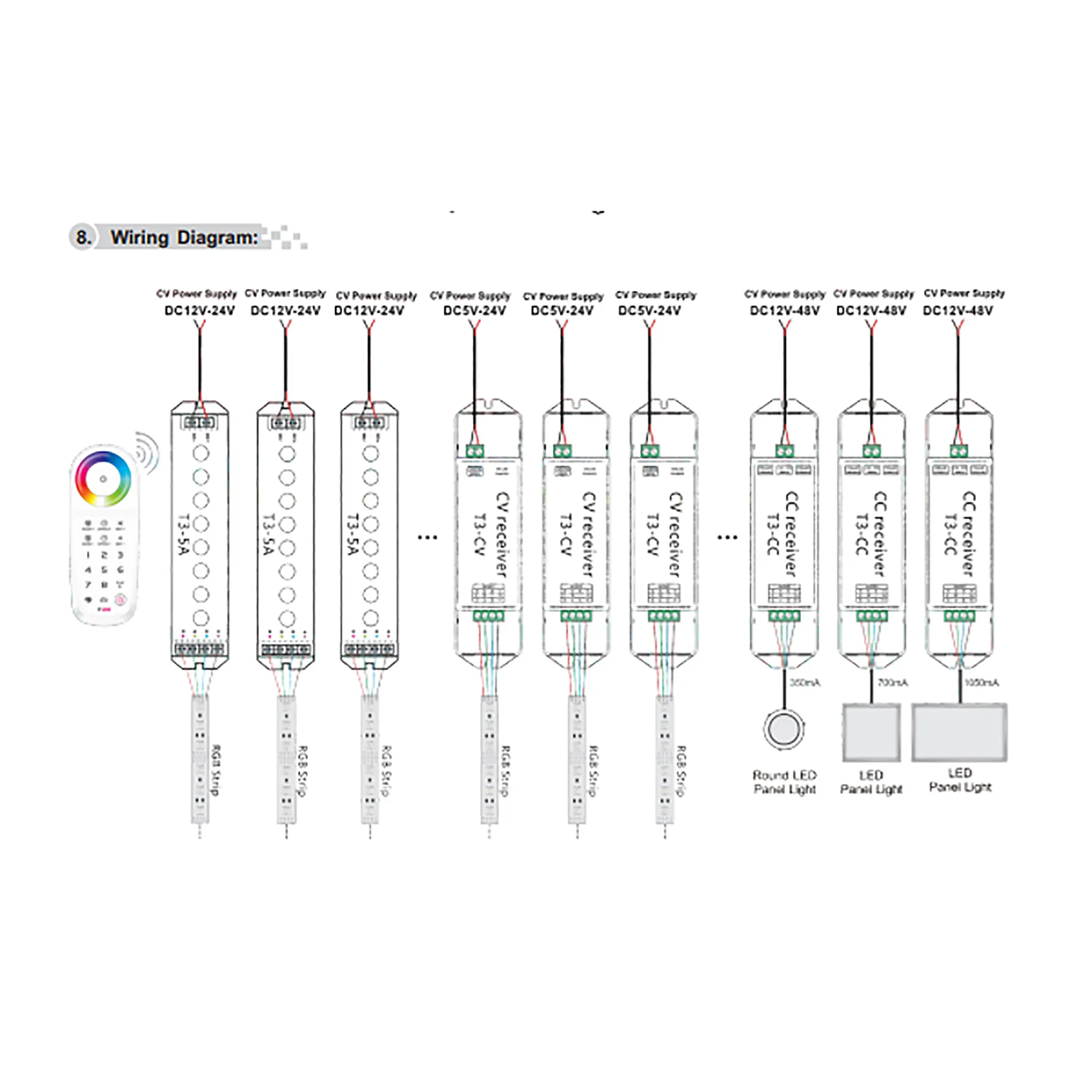

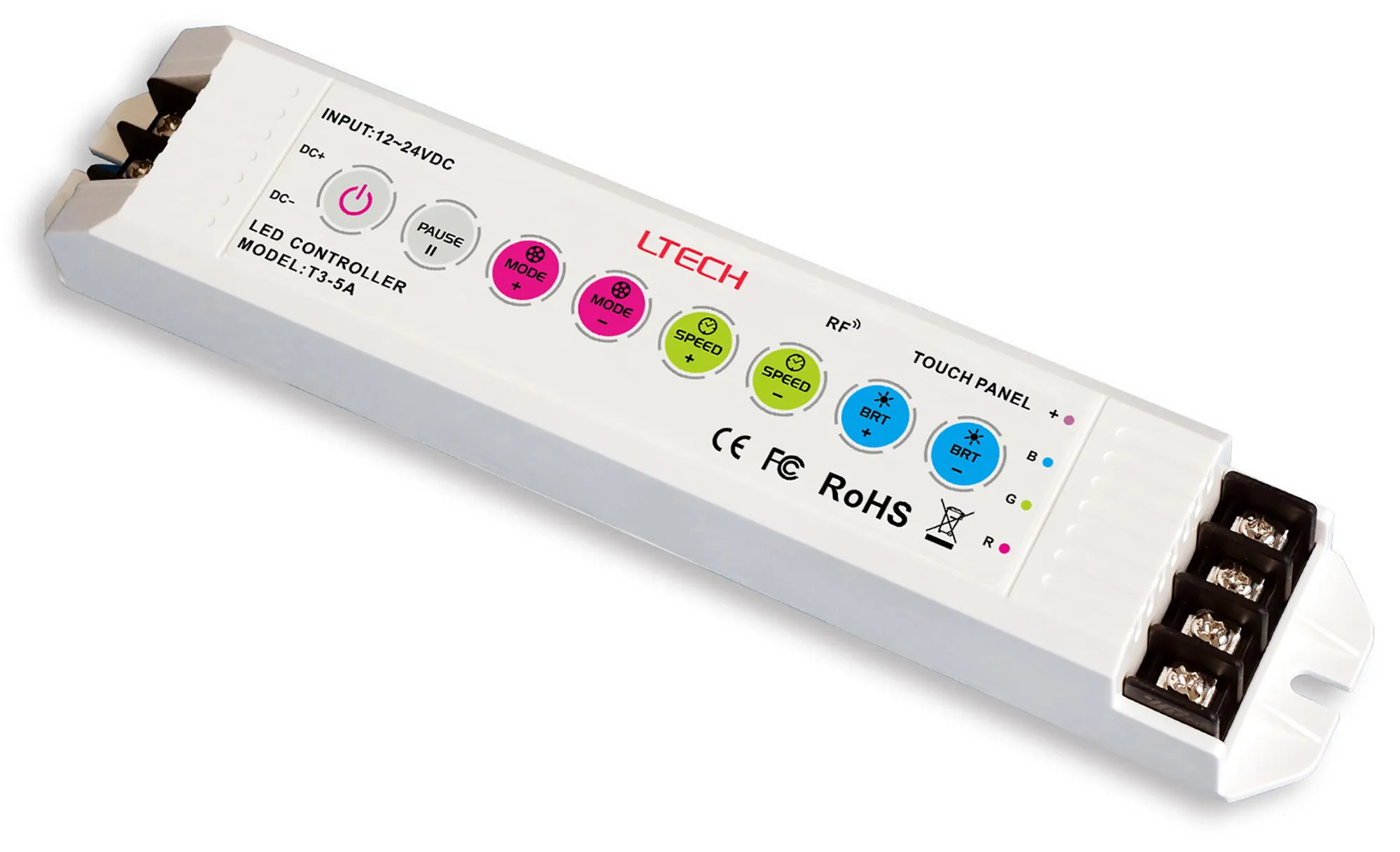

CV 2.4GHz RF Wireless Receiver 12/24V DC,180/360W, 5Ax3CH, 30m range, IP20.

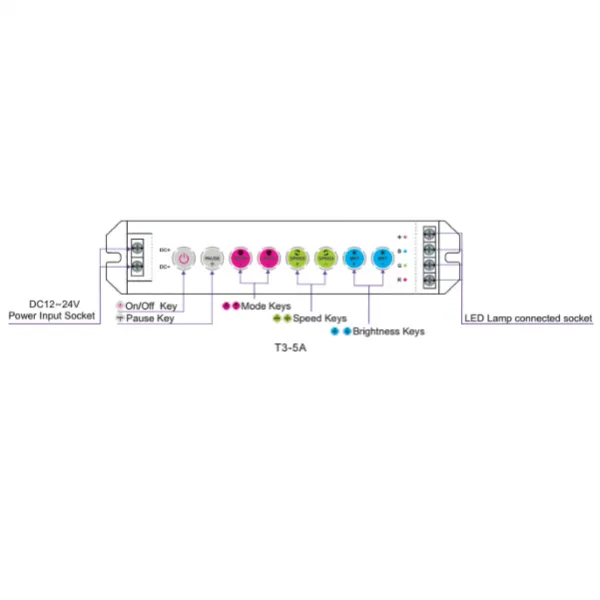

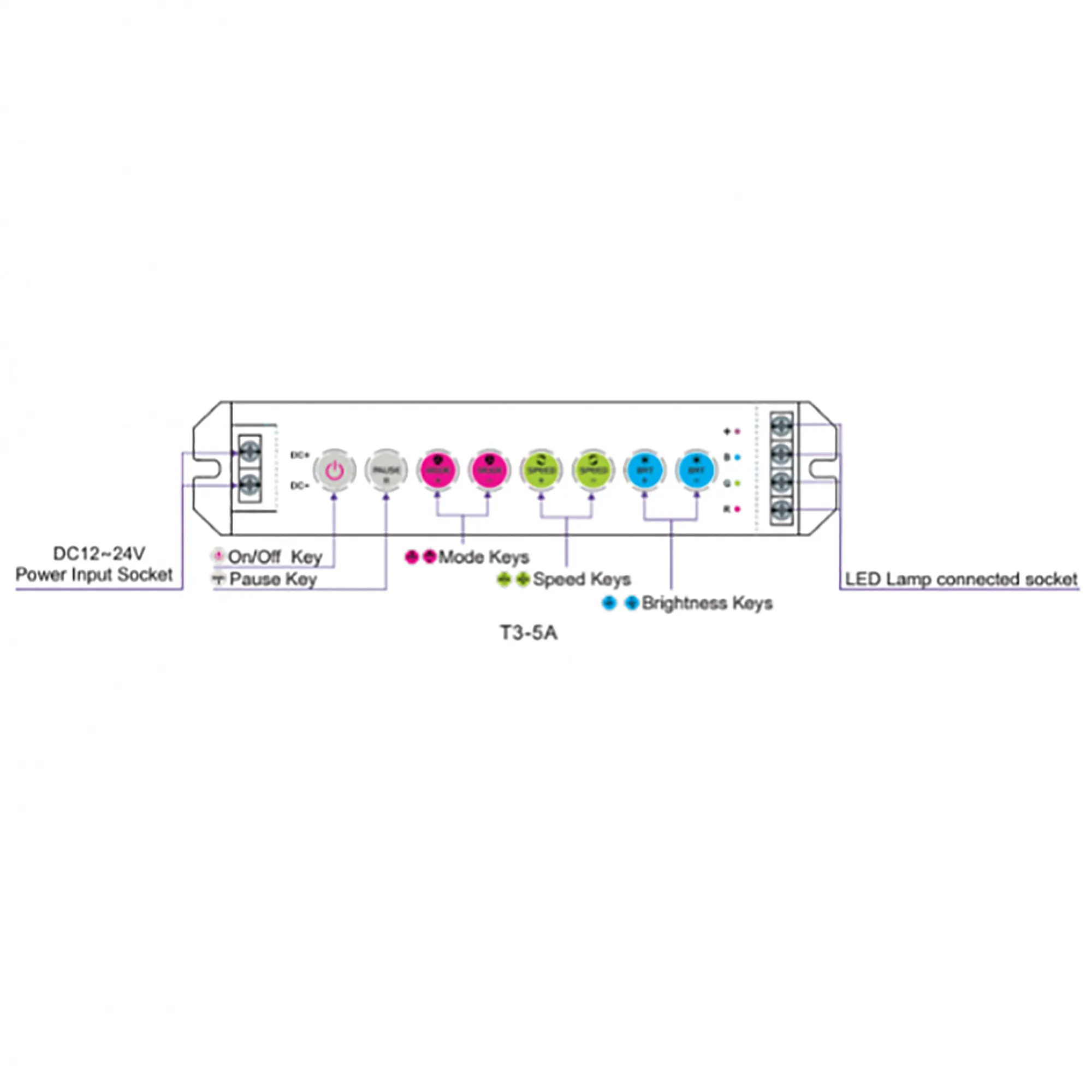

RF Wireless Constant Voltage Receiver, 180/360W, 15A(5A×3CH) current load, 8 touch button Compatible With T3/T3M/T3X, IP44, 3yrs Warranty

T3-5A

Qty: Order Item Add to Wishlist

Compact size, Wide wireless range, 3 channel for load connection, compatible with multiple panel, Wide operating temperature.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionCV 2.4GHz RF Wireless Receiver 12/24V DC,180/360W, 5Ax3CH, 30m range, IP20.
Item Nett Weight (kg)0.180kg

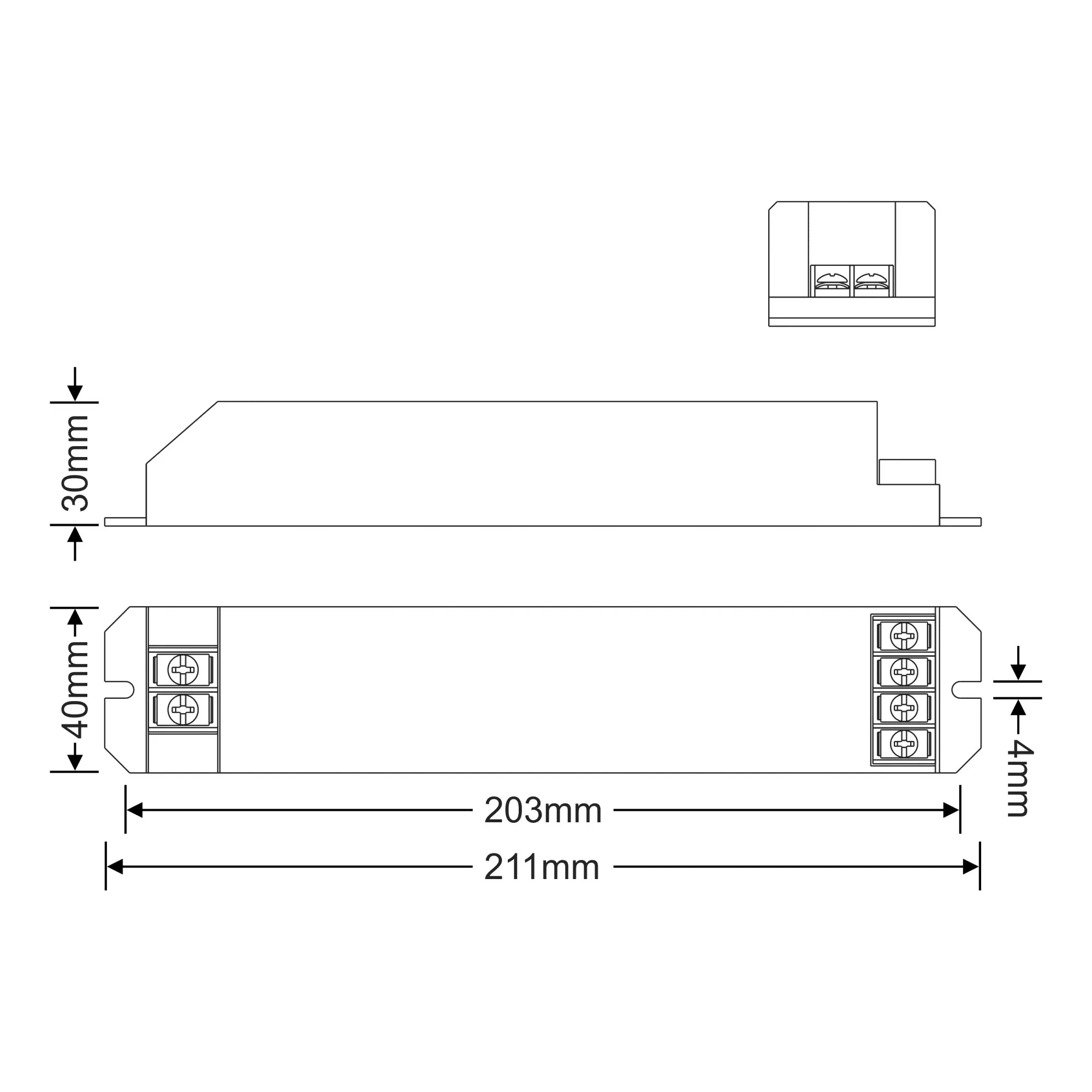

Length (mm)211mm
Width (mm)40mm
Height (mm)30mm
DimmableYes - Suitable Dimmer Required
IP RatingIP44
Detection Distance (m)30m
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupWireless Driver
Barcode5056037131083
Brief DescriptionCV 2.4GHz RF Wireless Receiver 12/24V DC,180/360W, 5Ax3CH, 30m range, IP20.
Item Nett Weight (kg)0.180kg
Length (mm)211mm
Width (mm)40mm
Height (mm)30mm
Type of DriverConstant Voltage
Dimming Range (%)0-100%
Constant Voltage Output (V)12V/24V
Max. Current Output (A)15A(5A x 3CH)
Load Range (W)0-360W
Maximum Output Distance (m)2m
Ta (°C)-30°C to 55°C
Tc (°C)+75°C
Casing MaterialPolycarbonate
Connection TerminalScrew Terminal
Average Life Of Driver (hrs)50000hrs
Dimming Protocol2.4GHz RF
Efficiency>0.85
Input Voltage (V)12-24V DC
Battery RequiredNo
Battery SuppliedNo
DimmableYes - Suitable Dimmer Required
IP RatingIP44
Detection Distance (m)30m
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
Additional CertificationFCC
Number of Cartons1
Carton Length (cm)21.5cm
Carton Width (cm)4.2cm
Carton Height (cm)3.2cm
Carton CBM0.0002
Carton Nett Weight (kg)0.180kg (±5%)
Carton Gross Weight (kg)0.18kg (±5%)
Additional DetailsEasy Installation and configuration.
UK Commodity Code8537109090
Country of OriginChina
