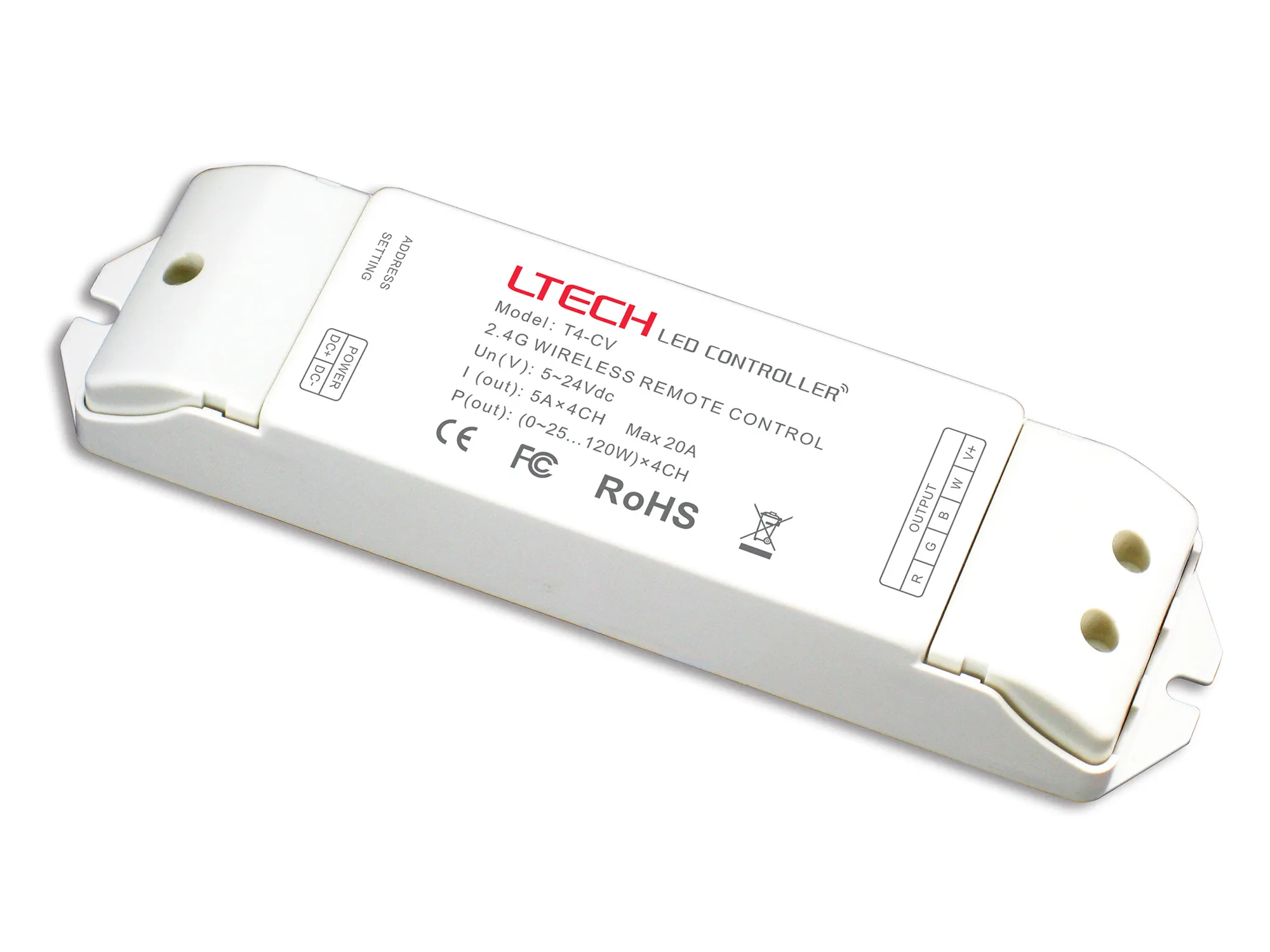

CV Wireless Receiver 5/12/24V DC, 5Ax4CH, 100/240/480W, IP44.

CV 2.4G RF Wireless Receiver, 5/12/24V DC, 20A (5A x 4CH), 100/240/480W, Compatible With T4 Remote, IP44, 3yrs Warranty

T4-CV

Qty: Order Item Add to Wishlist

Compact size, Wide wireless range, 3 channel for load connection, compatible with multiple panel, Wide operating temperature.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionCV Wireless Receiver 5/12/24V DC, 5Ax4CH, 100/240/480W, IP44.
Item Nett Weight (kg)0.150kg

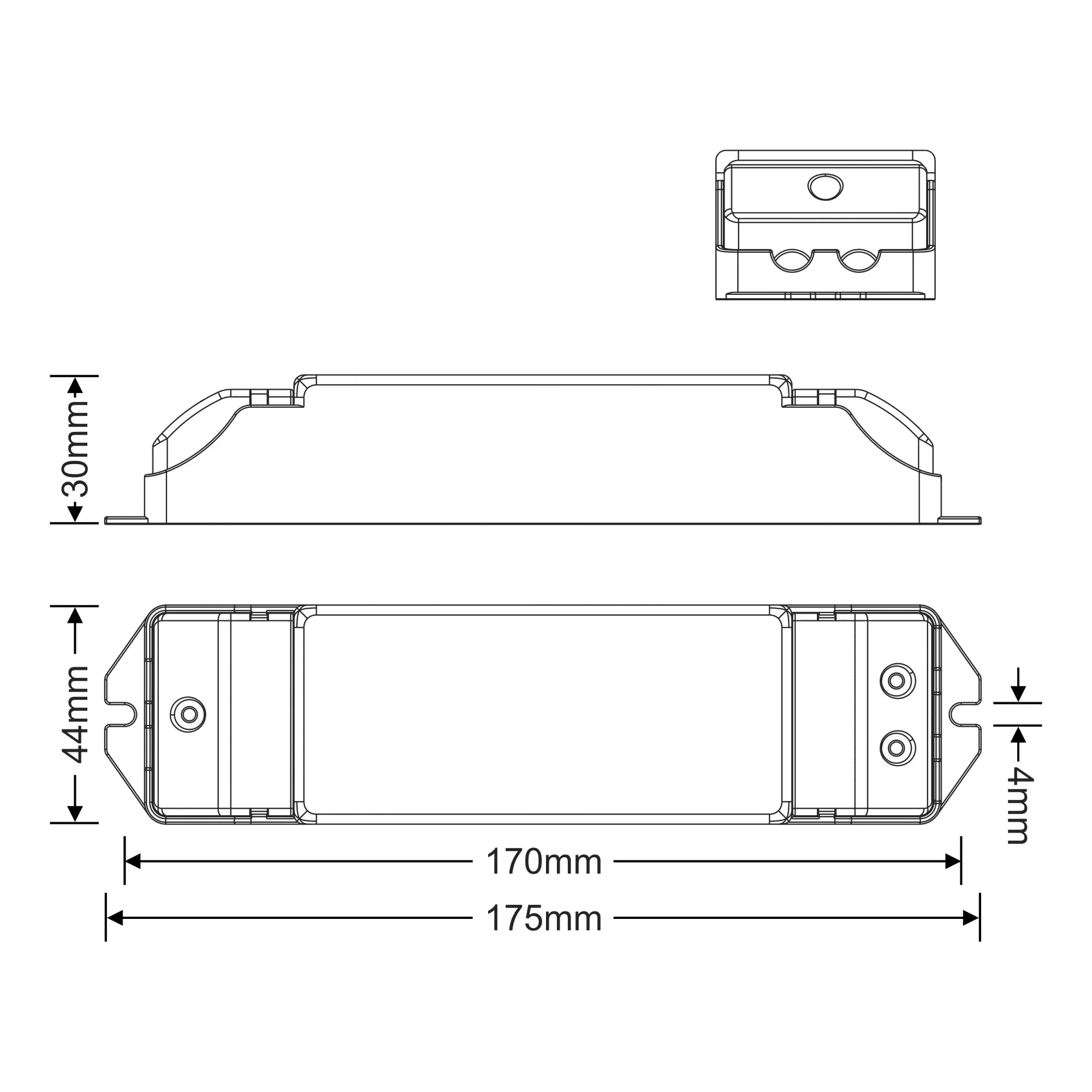

Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
DimmableYes - Suitable Dimmer Required
IP RatingIP44
Detection Distance (m)30m
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupWireless Driver
Barcode5056037131168
Brief DescriptionCV Wireless Receiver 5/12/24V DC, 5Ax4CH, 100/240/480W, IP44.
Item Nett Weight (kg)0.150kg
Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
Type of DriverConstant Voltage
Constant Voltage Output (V)5V/12V/24V
Max. Current Output (A)20A(5A x4CH)
Maximum Output Distance (m)2m
Ta (°C)-30°C to 55°C
Tc (°C)+75°C
Casing MaterialPolycarbonate
Connection TerminalGreen Terminal, Push Terminal
Average Life Of Driver (hrs)50000hrs
Dimming Protocol2.4GHz RF
Input Voltage (V)5/12/24V DC
Battery RequiredNo
Battery SuppliedNo
DimmableYes - Suitable Dimmer Required
IP RatingIP44
Detection Distance (m)30m
Working Humidity (%RH)20 - 95%RH
Average Life (hrs)50000hrs
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
Additional CertificationFCC
Number of Cartons1
Carton Length (cm)17.8cm
Carton Width (cm)4.8cm
Carton Height (cm)3.3cm
Carton CBM0.0002
Carton Nett Weight (kg)0.150kg (±5%)
Carton Gross Weight (kg)0.15kg (±5%)
Additional DetailsEasy Installation and configuration. Wide Input voltage range.
UK Commodity Code8537109090
Country of OriginChina
