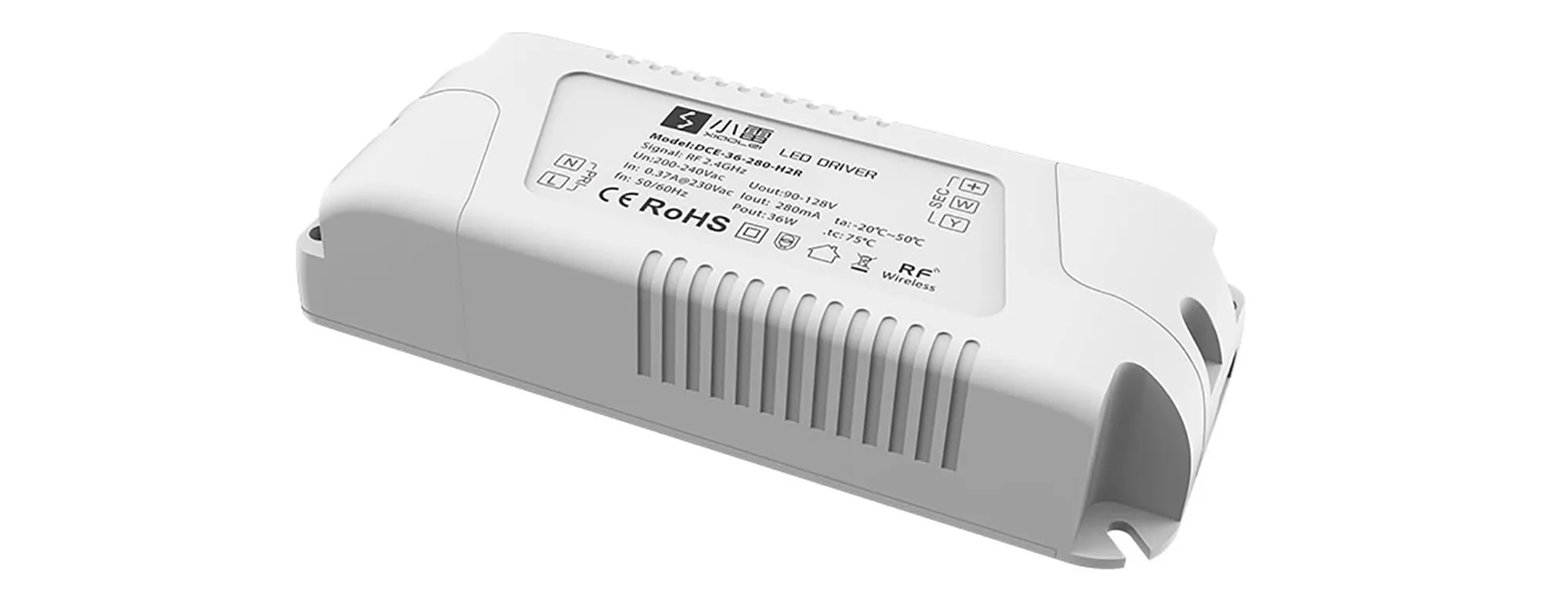

Ltech RF2.4GHz Wireless Dimmable Driver 36W 65-90Vdc/280mA.0-100% PWM dimming level, IP20.

Intelligent LED driver, RF2.4GHz interface 36W 128Vdc / 280mA output, PWM Dimming, Gate Way Support, High PF & Efficency, IP20.

DCE-36-280-H2R

Colour Finish :
White

Qty: Order Item Add to Wishlist

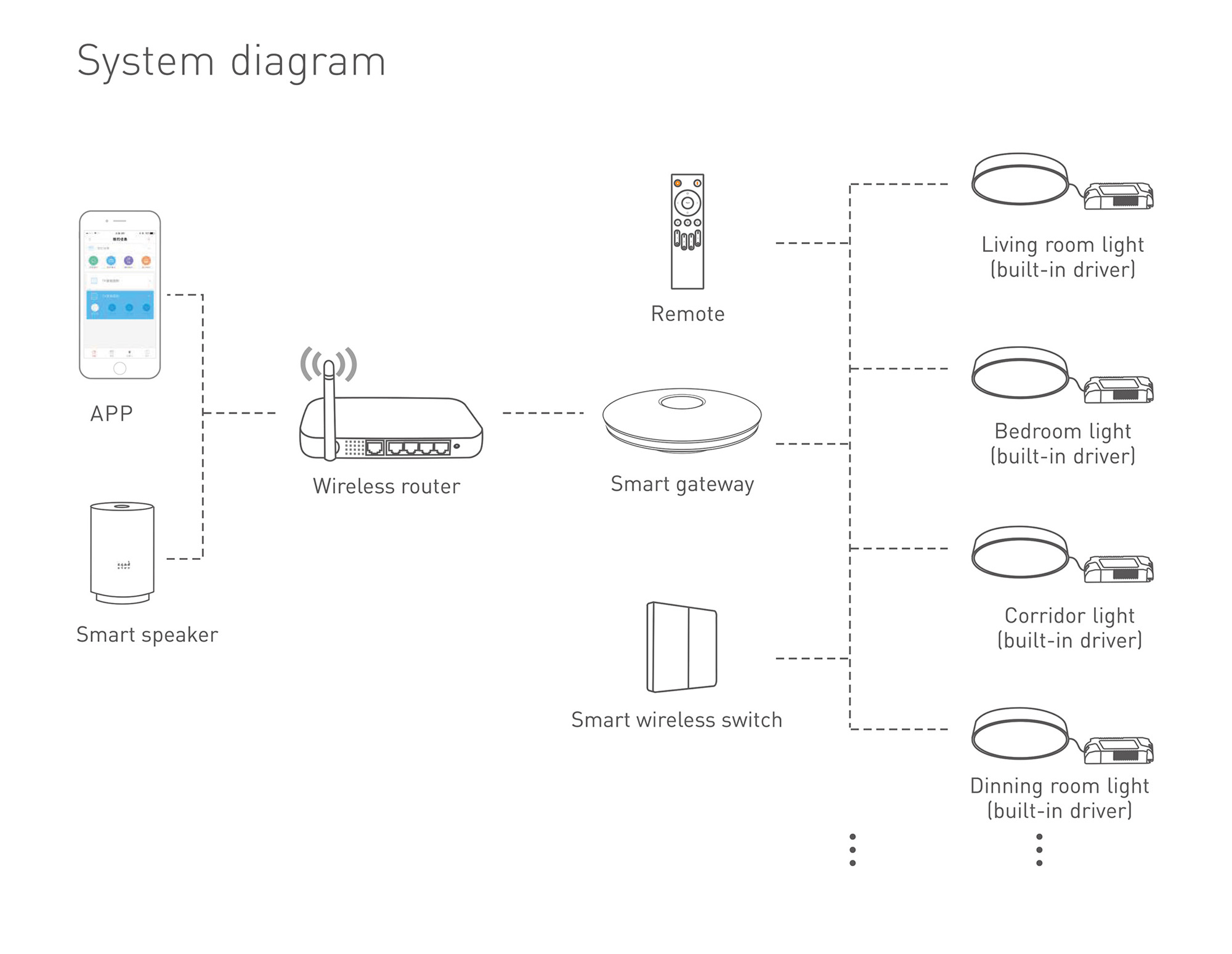

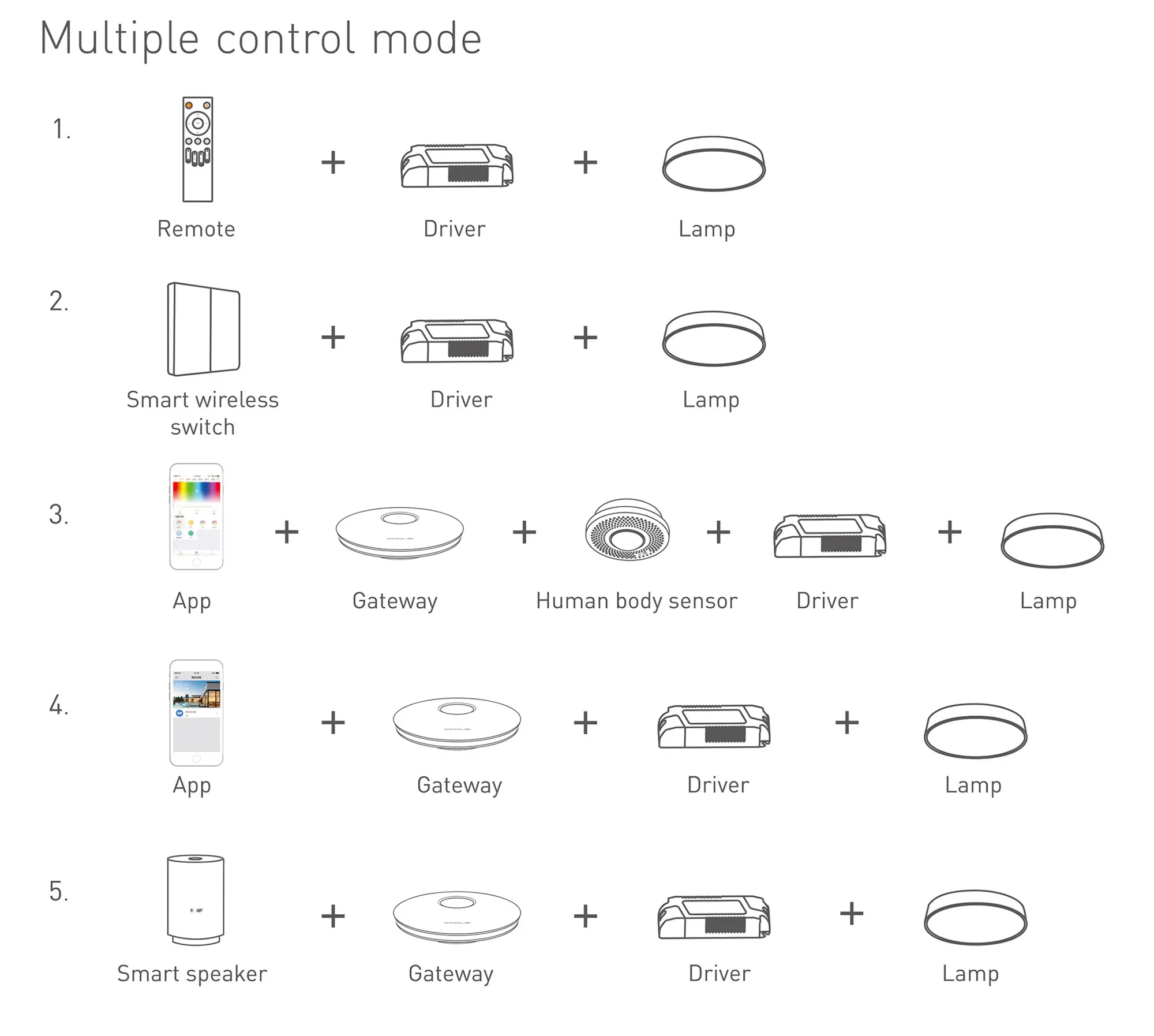

Intelligent LED Driver with stepless dimming, flicker free and achieve high frequency exemption assessment level. Supporting multi control methods. Working with gateway to realize APP control, smart voice control, scene control and Timing control and it also can work with the remote, wall switch and wireless dimming panel control to meet different application requirement.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionLtech RF2.4GHz Wireless Dimmable Driver 36W 65-90Vdc/280mA.0-100% PWM dimming level, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.11kg
Length (mm)132mm
Width (mm)45mm
Height (mm)24mm
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupSmart Home
Barcode
OverviewIntelligent LED Driver with stepless dimming, flicker free and achieve high frequency exemption assessment level. Supporting multi control methods. Working with gateway to realize APP control, smart voice control, scene control and Timing control and it also can work with the remote, wall switch and wireless dimming panel control to meet different application requirement.
Brief DescriptionLtech RF2.4GHz Wireless Dimmable Driver 36W 65-90Vdc/280mA.0-100% PWM dimming level, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.11kg
Length (mm)132mm
Width (mm)45mm
Height (mm)24mm
Type of DriverConstant Current
Dimming Range (%)0-100%
Power Factor (?)>0.83 (±5%) ( ±5%)
Constant Current Output (mA)280mA
Min/Max. Voltage Output (V)90-128V
Load Range (W)27-36W
Typical Current Ripple (%)=2%
Ta (°C)-20° to +50°C
Tc (°C)75°C
Casing MaterialPolycarbonate
Dimming Protocol2.4GHz RF, PWM
Efficiency0.88
Protection ClassClass 2 - Double Insulated
Input Voltage (V)200-240V~50/60Hz
Input Current (A)0.33A
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Additional CertificationIEEE-PAR 1789
IEC CompliantIEC/EN61347-1, IEC/EN61347-2-13
Number of Cartons1
Carton Length (cm)13.2cm
Carton Width (cm)4.5cm
Carton Height (cm)2.4cm
Carton CBM0.0001
Carton Nett Weight (kg)0.11kg (±5%) ( ±5%)
Carton Gross Weight (kg)0.11kg (±5%) ( ±5%)
Additional DetailsWirless Dimmable LED Driver, Overload, Over voltage.Withstand Voltage I/P-O/P: 3750Vac, Isolation Resistance I/P-O/P: 100MO/500VDC/25°C/70%RH
UK Commodity Code8543709990
Country of OriginChina
