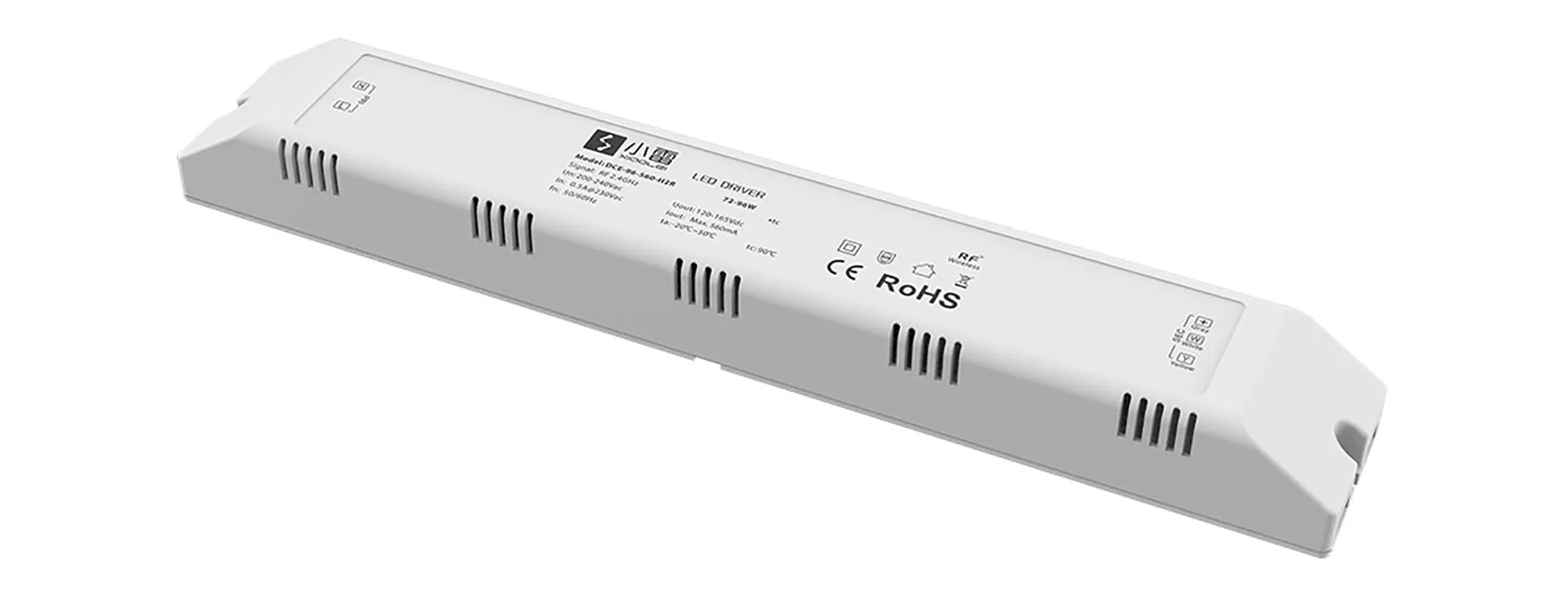

Ltech RF2.4GHz Wireless Dimmable Driver 96W 120-165Vdc/560mA.0-100% PWM dimming level, IP20.

Intelligent LED driver, RF2.4GHz interface 96W 190Vdc / 560mA output, PWM Dimming, High PF & Efficency, Hicup mode, Gate Way Support, IP20.

DCE-96-560-H2R

Colour Finish :
White

Qty: Order Item Add to Wishlist

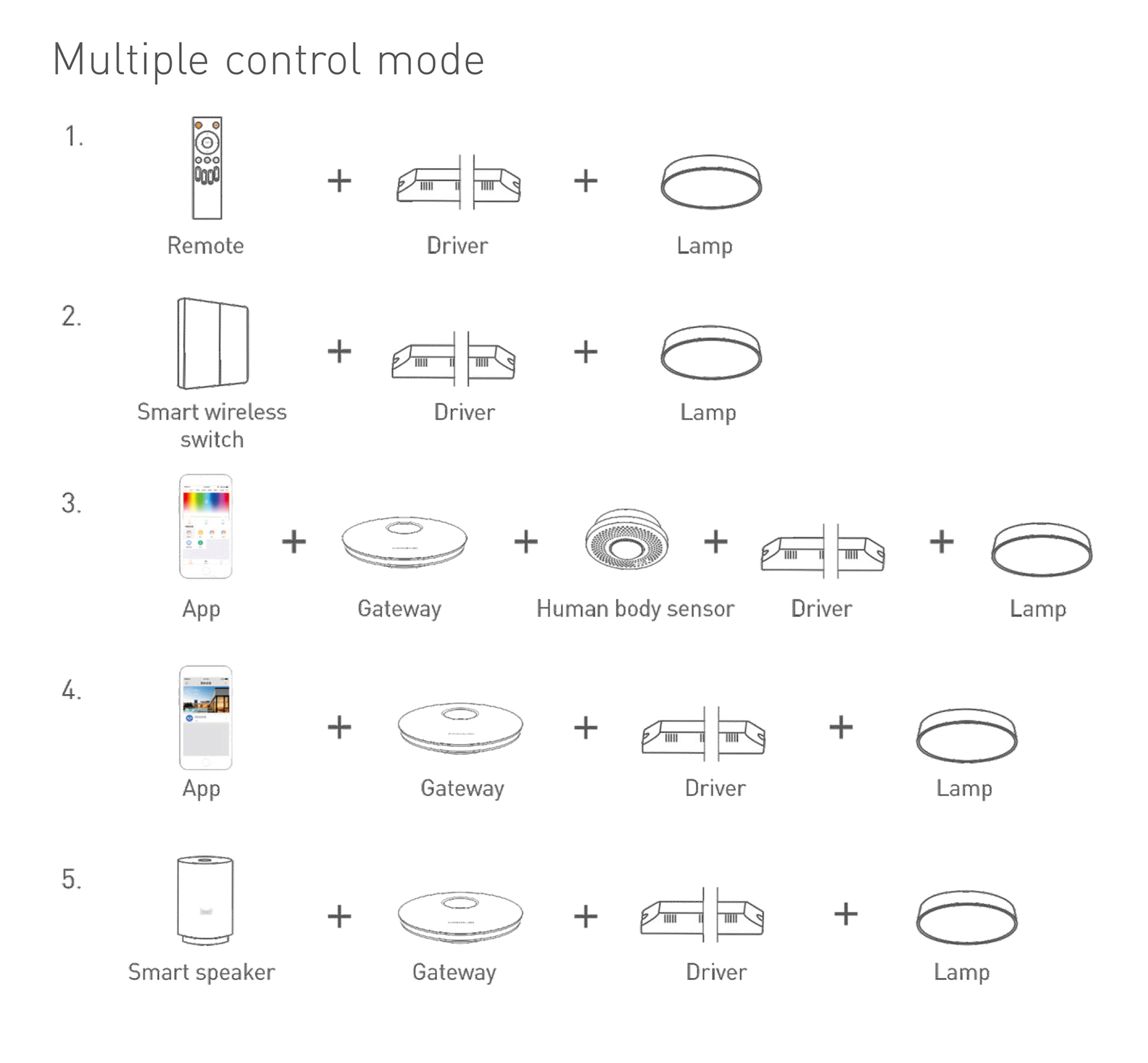

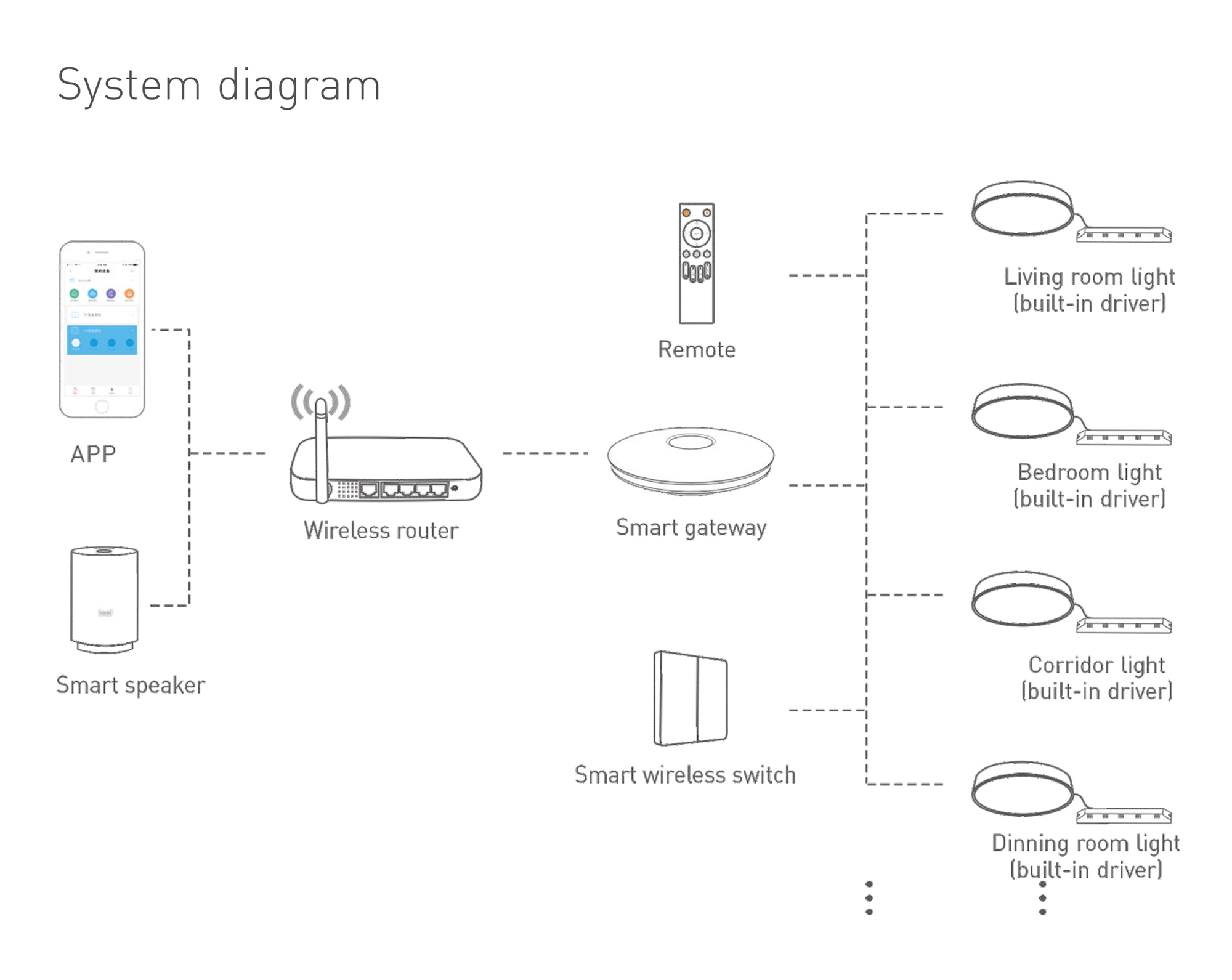

Intelligent LED Driver with stepless dimming, flicker free and achieve high frequency exemption assessment level. Supporting multi control methods. Working with gateway to realize APP control, smart voice control, scene control and Timing control and it also can work with the remote, wall switch and wireless dimming panel control to meet different application requirement.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionLtech RF2.4GHz Wireless Dimmable Driver 96W 120-165Vdc/560mA.0-100% PWM dimming level, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.25kg

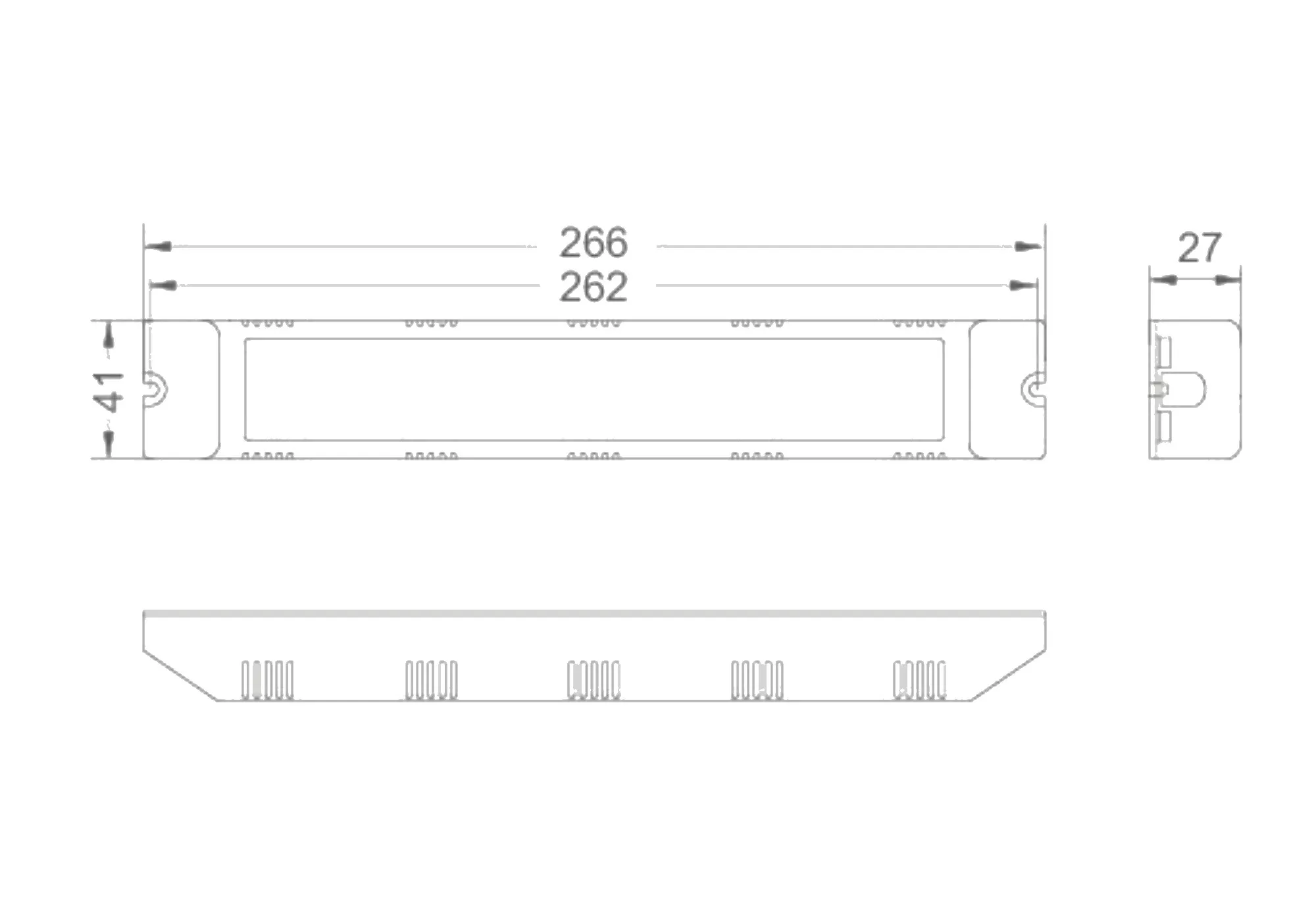

Length (mm)265mm
Width (mm)42mm
Height (mm)27mm
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupSmart Home
Barcode
OverviewIntelligent LED Driver with stepless dimming, flicker free and achieve high frequency exemption assessment level. Supporting multi control methods. Working with gateway to realize APP control, smart voice control, scene control and Timing control and it also can work with the remote, wall switch and wireless dimming panel control to meet different application requirement.
Brief DescriptionLtech RF2.4GHz Wireless Dimmable Driver 96W 120-165Vdc/560mA.0-100% PWM dimming level, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.25kg
Length (mm)265mm
Width (mm)42mm
Height (mm)27mm
Type of DriverConstant Current
Dimming Range (%)0-100%
Power Factor (?)>0.90 (±5%) ( ±5%)
Constant Current Output (mA)560mA
Min/Max. Voltage Output (V)120-165V
Load Range (W)72-96W
Typical Current Ripple (%)=2%
Ta (°C)-20° to +50°C
Tc (°C)90°C
Casing MaterialPolycarbonate
Dimming Protocol2.4GHz RF, PWM
Efficiency0.92
Protection ClassClass 2 - Double Insulated
Input Voltage (V)200-240V~50/60Hz
Input Current (A)0.5A
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Additional CertificationIEEE-PAR 1789
IEC CompliantIEC/EN61347-1, IEC/EN61347-2-13
Number of Cartons1
Carton Length (cm)26.7cm
Carton Width (cm)4.4cm
Carton Height (cm)2.8cm
Carton CBM0.0003
Carton Nett Weight (kg)0.25kg (±5%) ( ±5%)
Carton Gross Weight (kg)0.25kg (±5%) ( ±5%)
Additional DetailsWireless Dimmable LED Driver, Over-heat Protection, Overload Protection, Shut down automatically if short circuit occurs, auto recovers. Withstand Voltage I/P-O/P: 3750Vac
UK Commodity Code8543709990
Country of OriginChina
