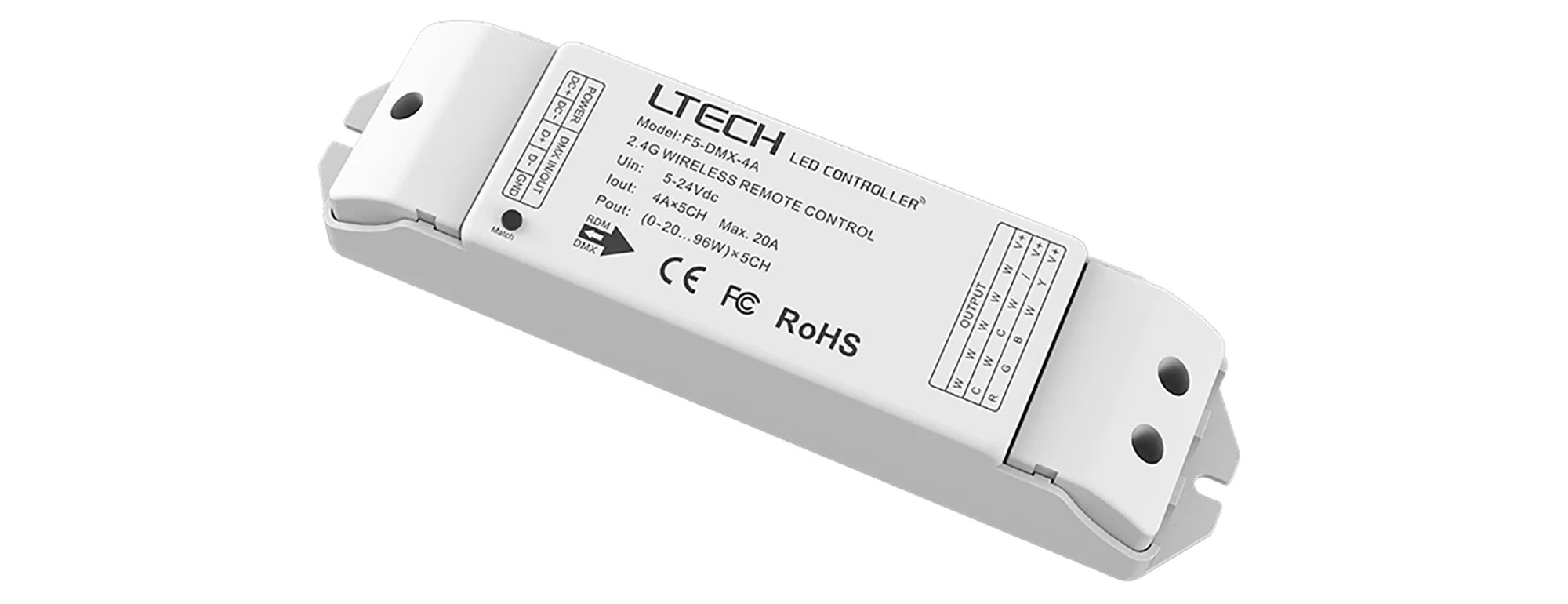

CV RF 2.4GHz/DMX Wireless/Wired Receiver 5/12/24V DC, 20A max. 5A × 4CH, 0-100 Dimming level, IP20.

CV Wireless and Wire Receiver, 5-24V DC, 100-480W, 12A(5Ax4CH), Compatible With EX Series Touch Panels, WiFi-106gateway & F/RC4-RF-B/Q Series Remotes.

F5-DMX-4A

Colour Finish :
White

Qty: Order Item Add to Wishlist

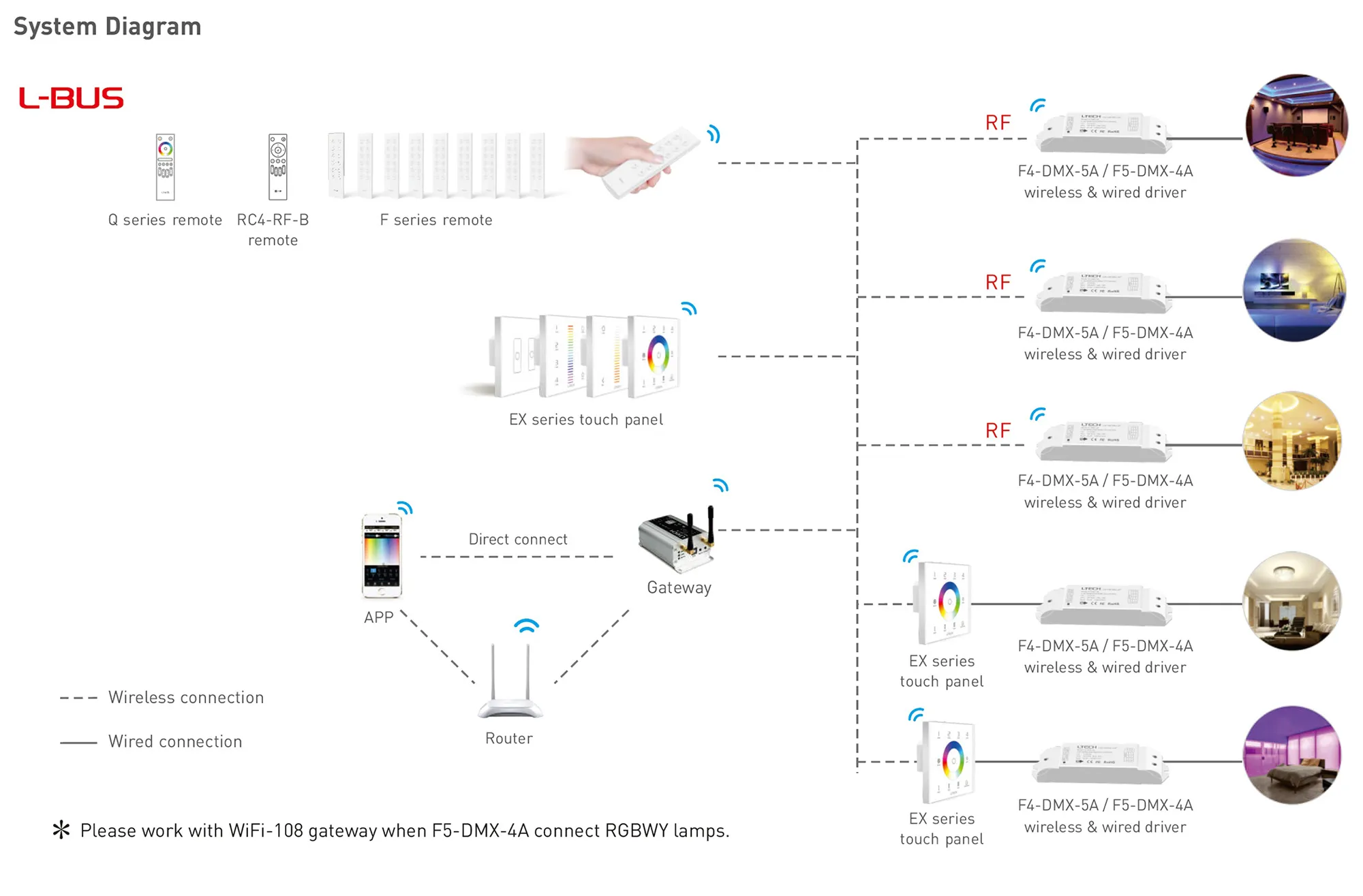

Support RF 2.4GHz wireless signal and DMX wired connection, Can connect dimming, Colour temperature, RGB, RGBW, RGBWY lamps, Compatible with F series remote, RC4-RF-B remote and Q series remote, Remote operation using WIFI Gateway.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionCV RF 2.4GHz/DMX Wireless/Wired Receiver 5/12/24V DC, 20A max. 5A × 4CH, 0-100 Dimming level, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.13kg

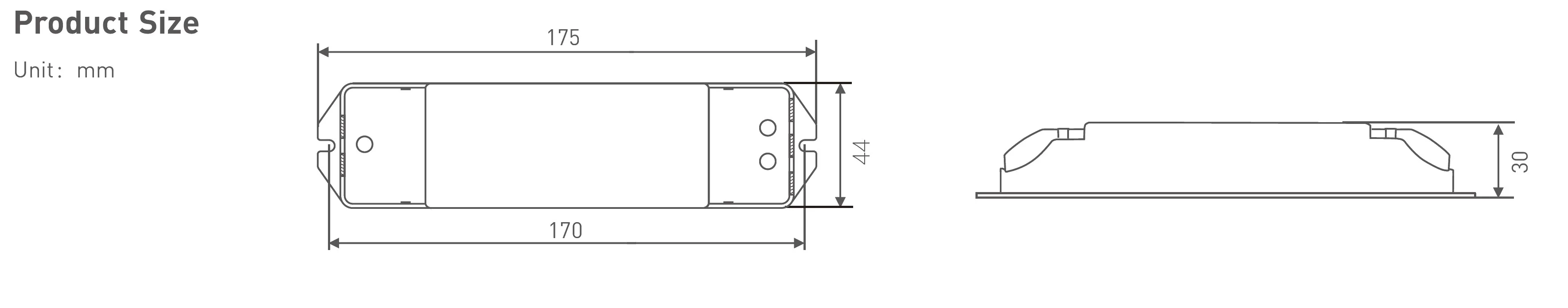

Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupSmart Home
OverviewSupport RF 2.4GHz wireless signal and DMX wired connection, Can connect dimming, Colour temperature, RGB, RGBW, RGBWY lamps, Compatible with F series remote, RC4-RF-B remote and Q series remote, Remote operation using WIFI Gateway.
Brief DescriptionCV RF 2.4GHz/DMX Wireless/Wired Receiver 5/12/24V DC, 20A max. 5A × 4CH, 0-100 Dimming level, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.13kg
Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
Type of DriverConstant Voltage
Dimming Range (%)0-100%
Constant Voltage Output (V)5/12/24V DC
Max. Current Output (A)20A(3A x 4 CH)
Load Range (W)480W
Maximum Output Distance (m)2m
Ta (°C)-30°C to 55°C
Tc (°C)75°C
Casing MaterialPolycarbonate
Connection TerminalScrew Terminal
Dimming ProtocolDMX512/RDM, 2.4GHz RF
Input Voltage (V)5-24V DC
Input Current (A)20A
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
Additional CertificationFCC
Number of Cartons1
Carton Length (cm)17.5cm
Carton Width (cm)4.4cm
Carton Height (cm)3.0cm
Carton CBM0.0002
Carton Nett Weight (kg)0.13kg (±5%)
Carton Gross Weight (kg)0.13kg (±5%)
Additional DetailsCompact Size, Easy installation, Wide RF range .
UK Commodity Code8537109990
Country of OriginChina
