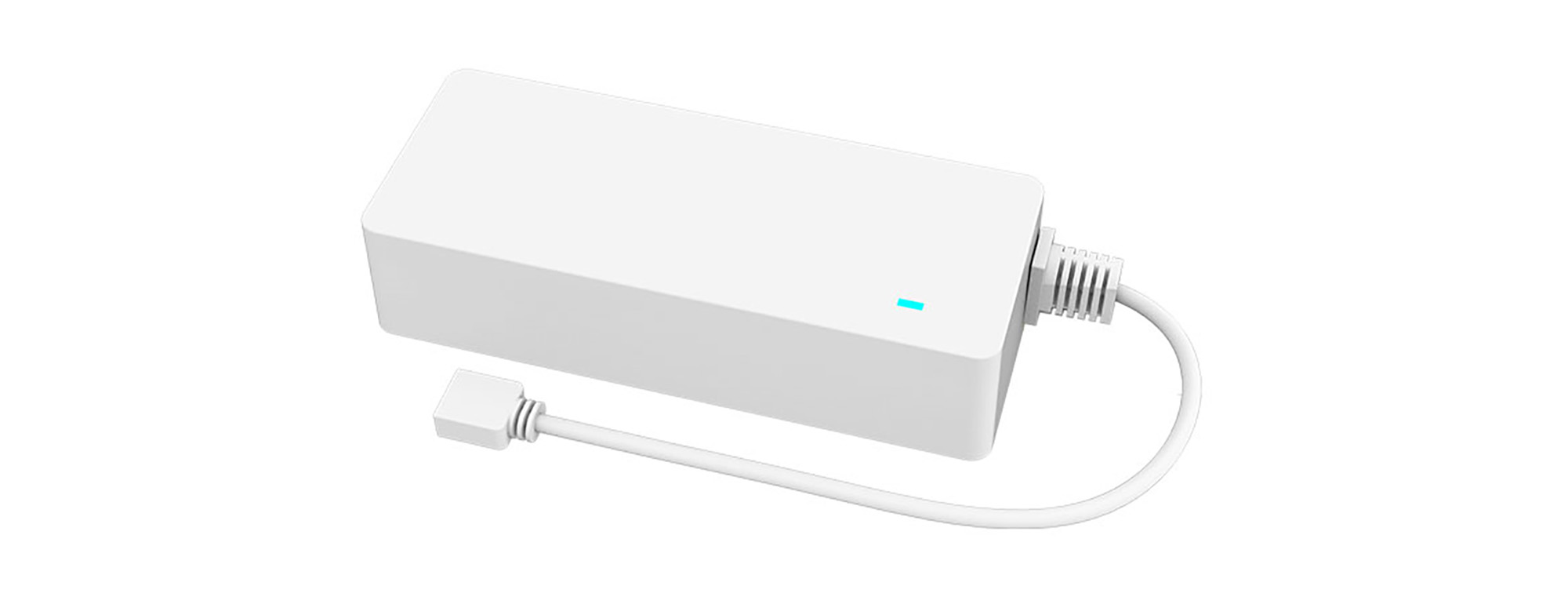

RF2.4GHz, CV 60W 12Vdc 1.67A x 3CH O/P, PWM Dimming, 0-100% Dim, Active PFC, Synchronization, IP20.

Intelligent LED driver, RF2.4GHz, CV 60W 12Vdc 5A(1.67A x 3CH) output, PWM Dimming, 0-100% Dimming, Active PFC, Efficency, IP20, 2yrs Warrenty.

ST-75-12-W3R

Colour Finish :
White

Qty: Order Item Add to Wishlist

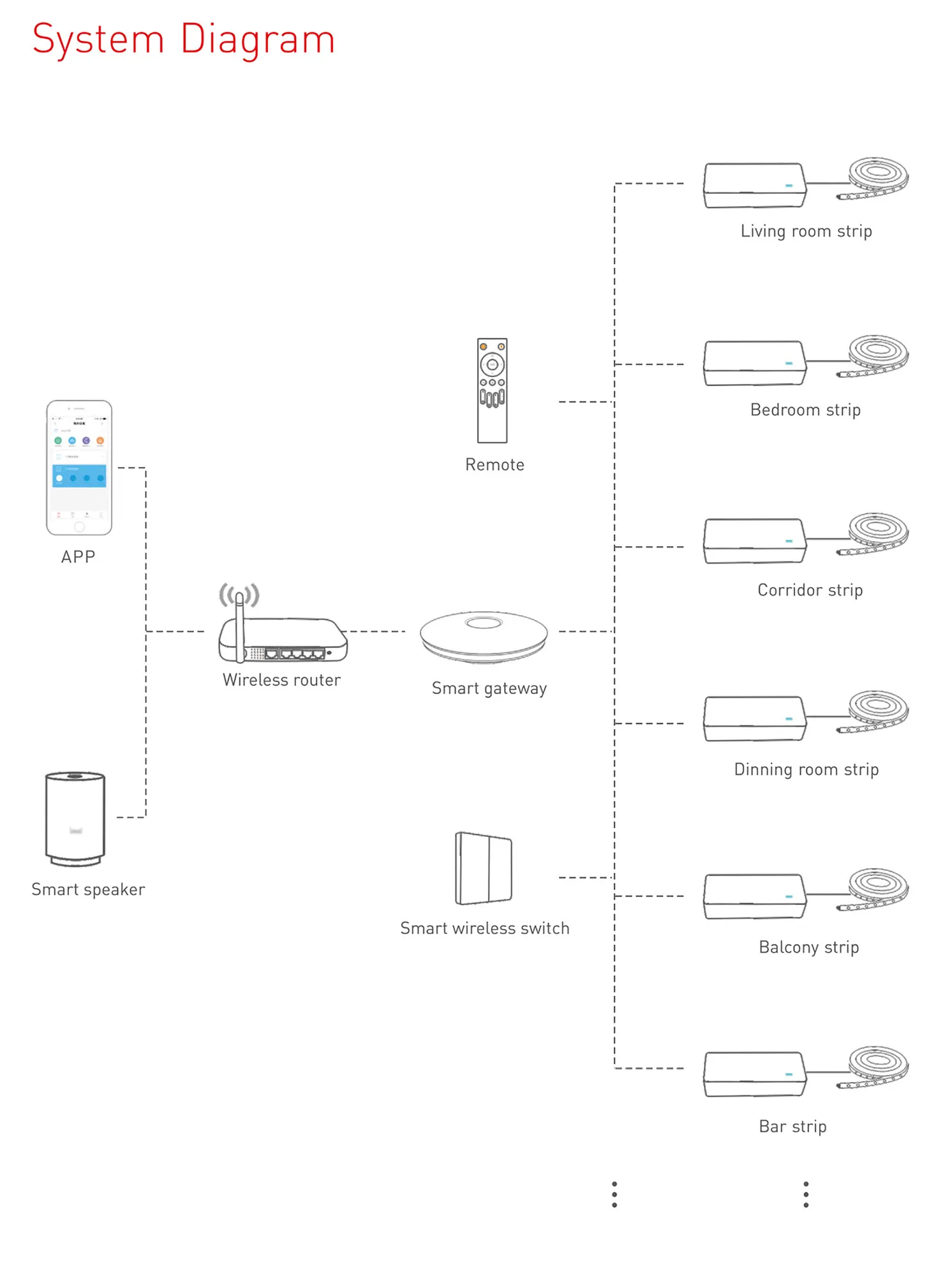

Intelligent Smart home solution with RF 2.4Ghz technology. Stepless dimming, Flicker free and achieve high frequency exemption assessment level. Controlled by wireless panel, Mobile APP, remote and intelligent gateway via RF signal. Multiple driver's effect synchronization can be achieved. Wide Dimming Range. Active power factor correction circuit. Class 2 power supply for safe operation.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionRF2.4GHz, CV 60W 12Vdc 1.67A x 3CH O/P, PWM Dimming, 0-100% Dim, Active PFC, Synchronization, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.43kg

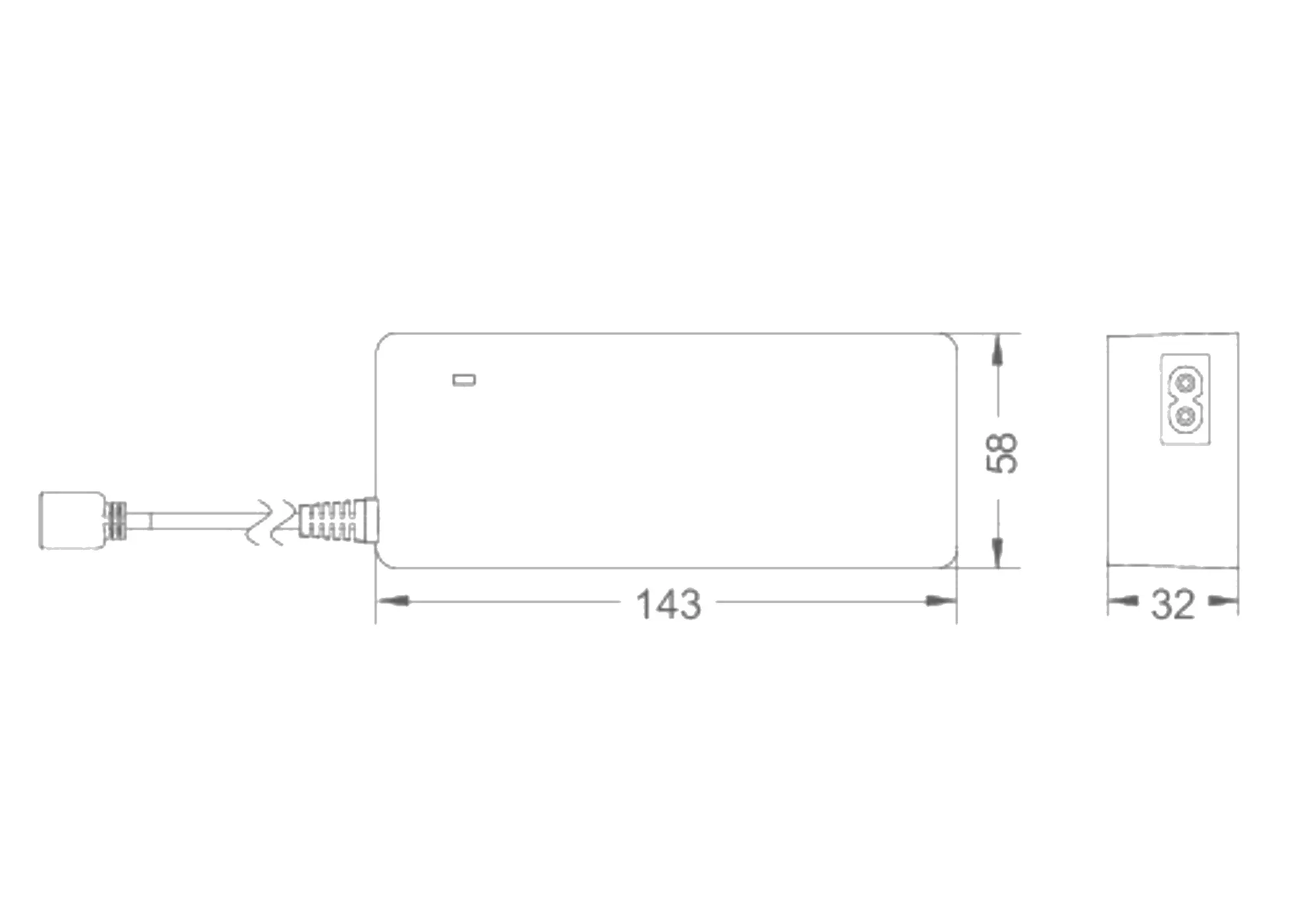

Length (mm)143mm
Width (mm)58mm
Height (mm)32mm
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)2yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupSmart Home
Barcode
OverviewIntelligent Smart home solution with RF 2.4Ghz technology. Stepless dimming, Flicker free and achieve high frequency exemption assessment level. Controlled by wireless panel, Mobile APP, remote and intelligent gateway via RF signal. Multiple driver’s effect synchronization can be achieved. Wide Dimming Range. Active power factor correction circuit. Class 2 power supply for safe operation.
Brief DescriptionRF2.4GHz, CV 60W 12Vdc 1.67A x 3CH O/P, PWM Dimming, 0-100% Dim, Active PFC, Synchronization, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.43kg
Length (mm)143mm
Width (mm)58mm
Height (mm)32mm
Type of DriverConstant Voltage
Dimming Range (%)0-100%
Power Factor (?)>0.95 (±5%) ( ±5%)
Constant Voltage Output (V)12V DC
Max. Current Output (A)5A(1.67A x 3CH)
Load Range (W)60W
Maximum Output Distance (m)2m
Ta (°C)-30°C to 50°C
Tc (°C)75°C
Casing MaterialPolycarbonate
Dimming Protocol2.4GHz RF, PWM
Efficiency>0.91
Input Voltage (V)100-240V~50/60Hz
Input Current (A)0.77A
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)2yrs
UKCA/CEYes
RohsYes
SELVYes
EMV/EMCYes
Additional CertificationIEEE-PAR 1789
IEC CompliantIEC/EN61347-1, IEC/EN61347-2-13
Number of Cartons1
Carton Length (cm)16.8cm
Carton Width (cm)12.3cm
Carton Height (cm)3.5cm
Carton CBM0.0007
Carton Nett Weight (kg)0.43kg (±5%) ( ±5%)
Carton Gross Weight (kg)0.43kg (±5%) ( ±5%)

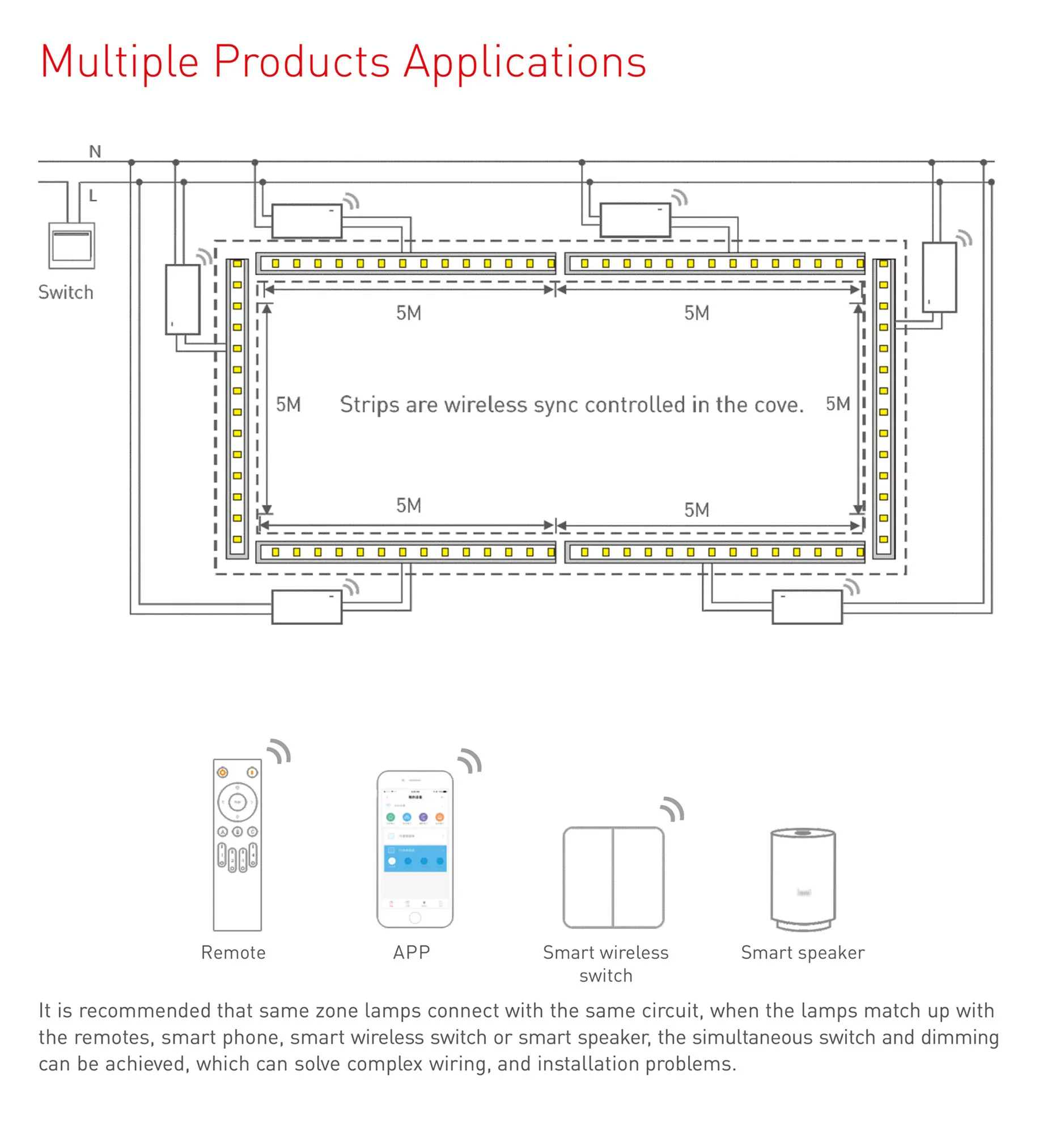

Additional DetailsOver-heat/Over voltage/Overload/Short circuit protection, Recover automatically. Compliant with Safety Extra LowVoltage standard. Flicker-free Dimming. Multiple driver's effect synchronization can be achieved.
UK Commodity Code8543709990
Country of OriginChina
