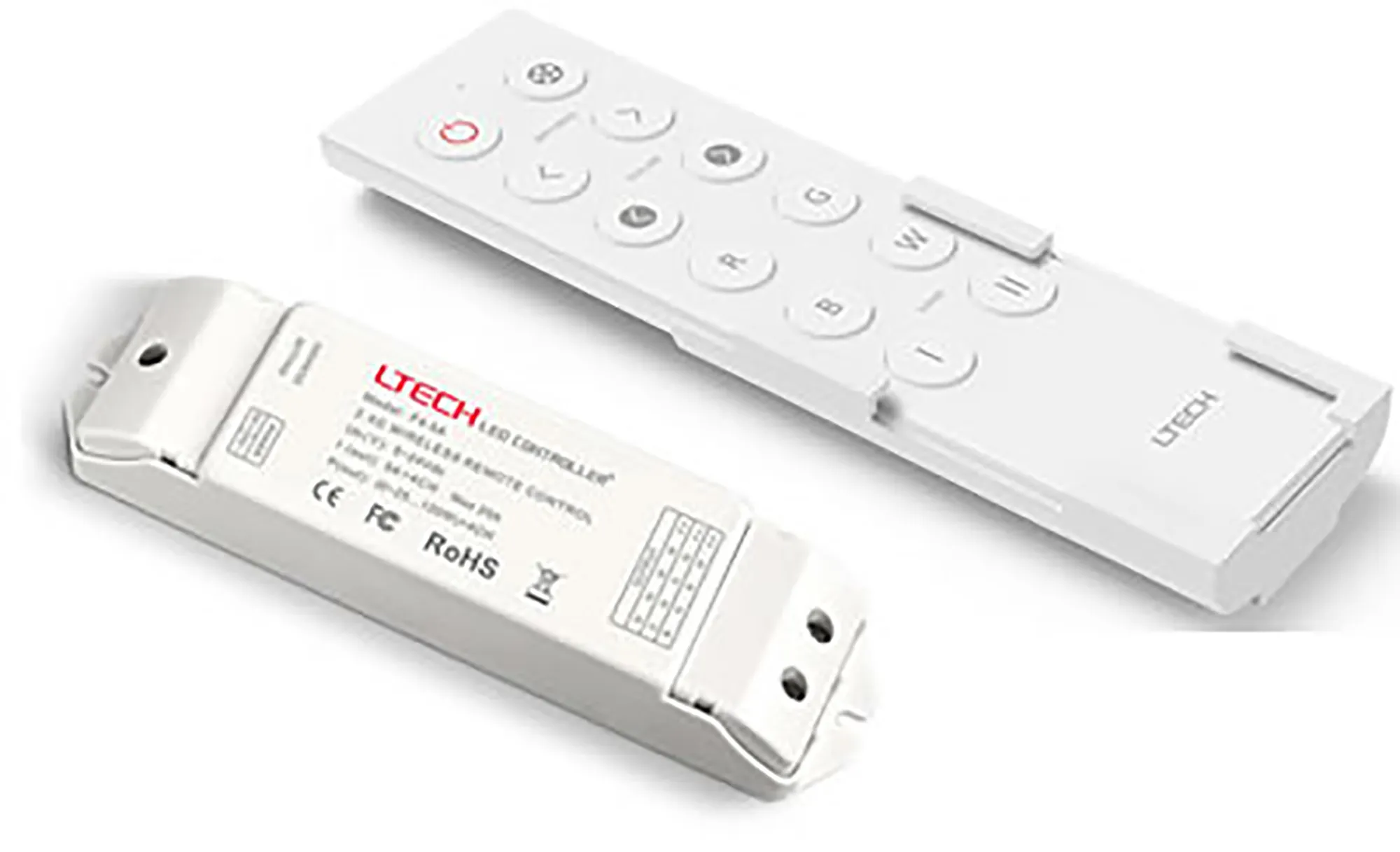

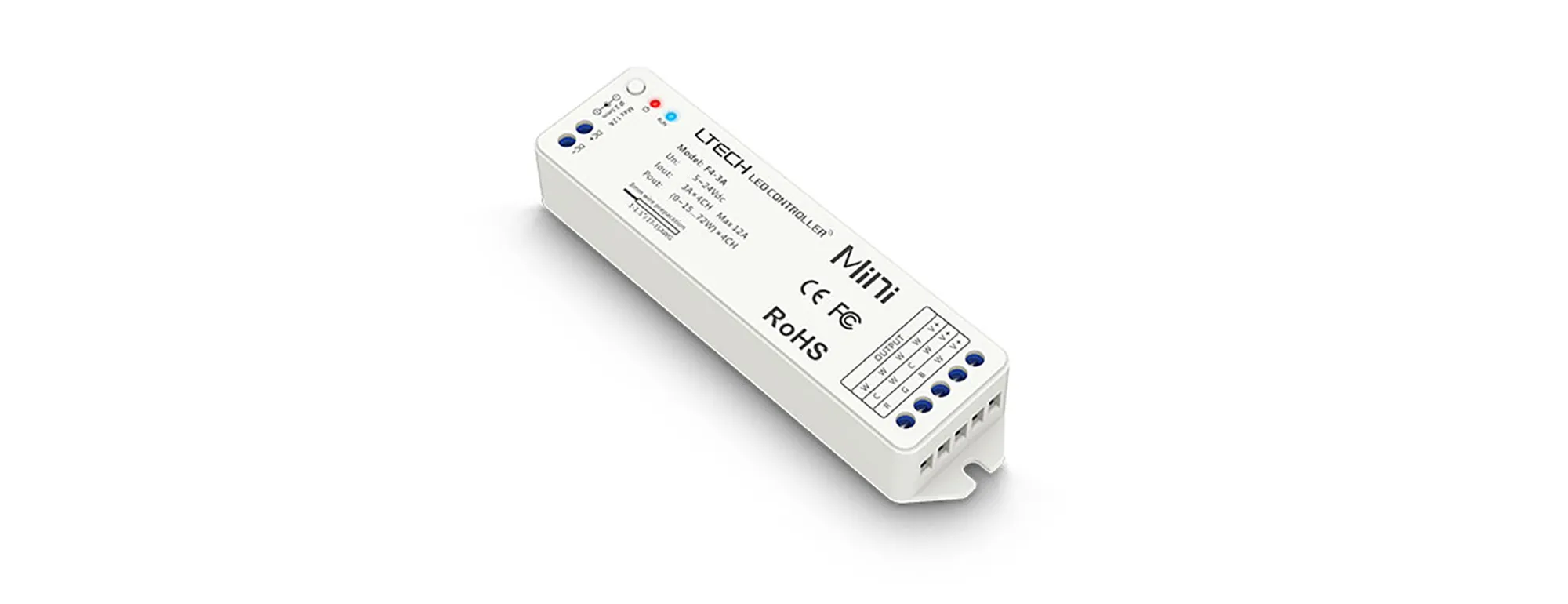

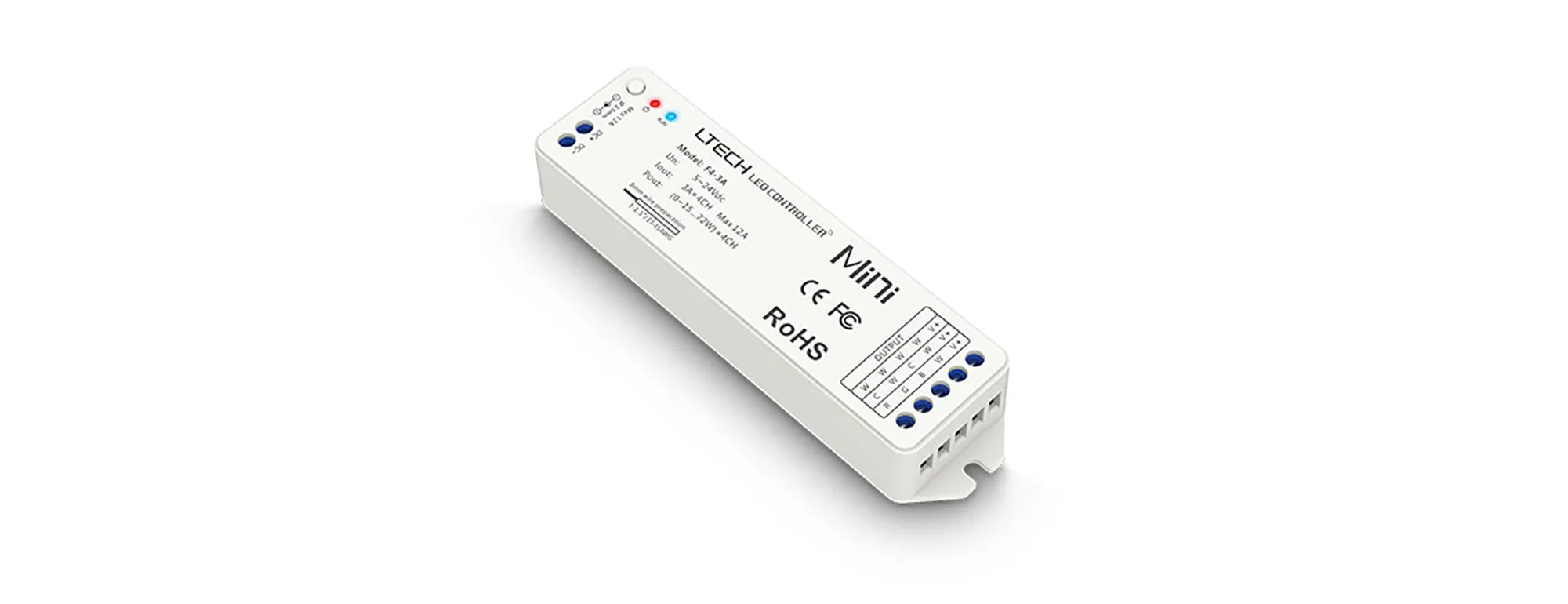

CV RF 2.4GHz Wireless Receiver 5/12/24V DC, 12Amax. 3A × 4CH, 0-100 Dimming level, IP20.

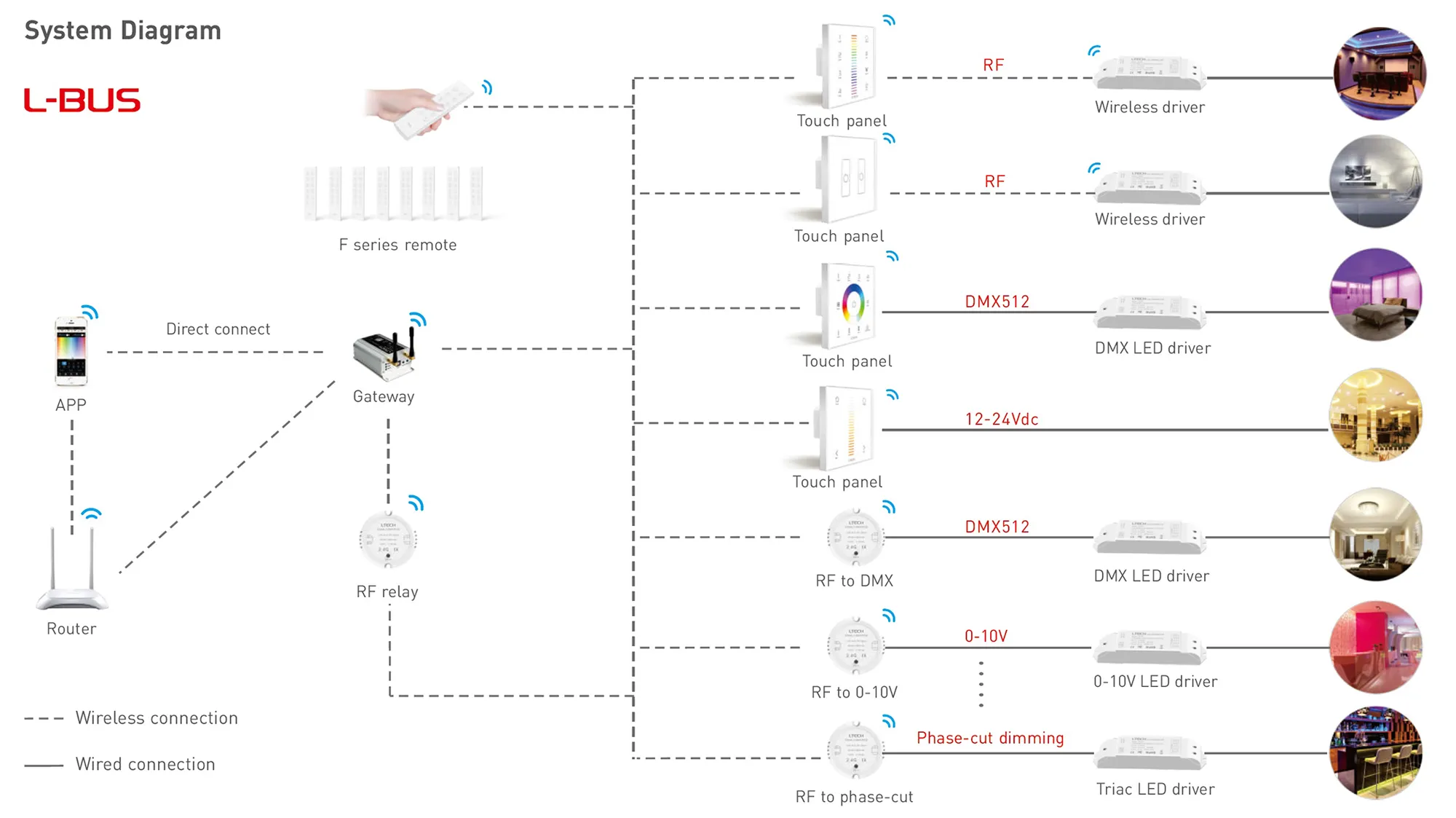

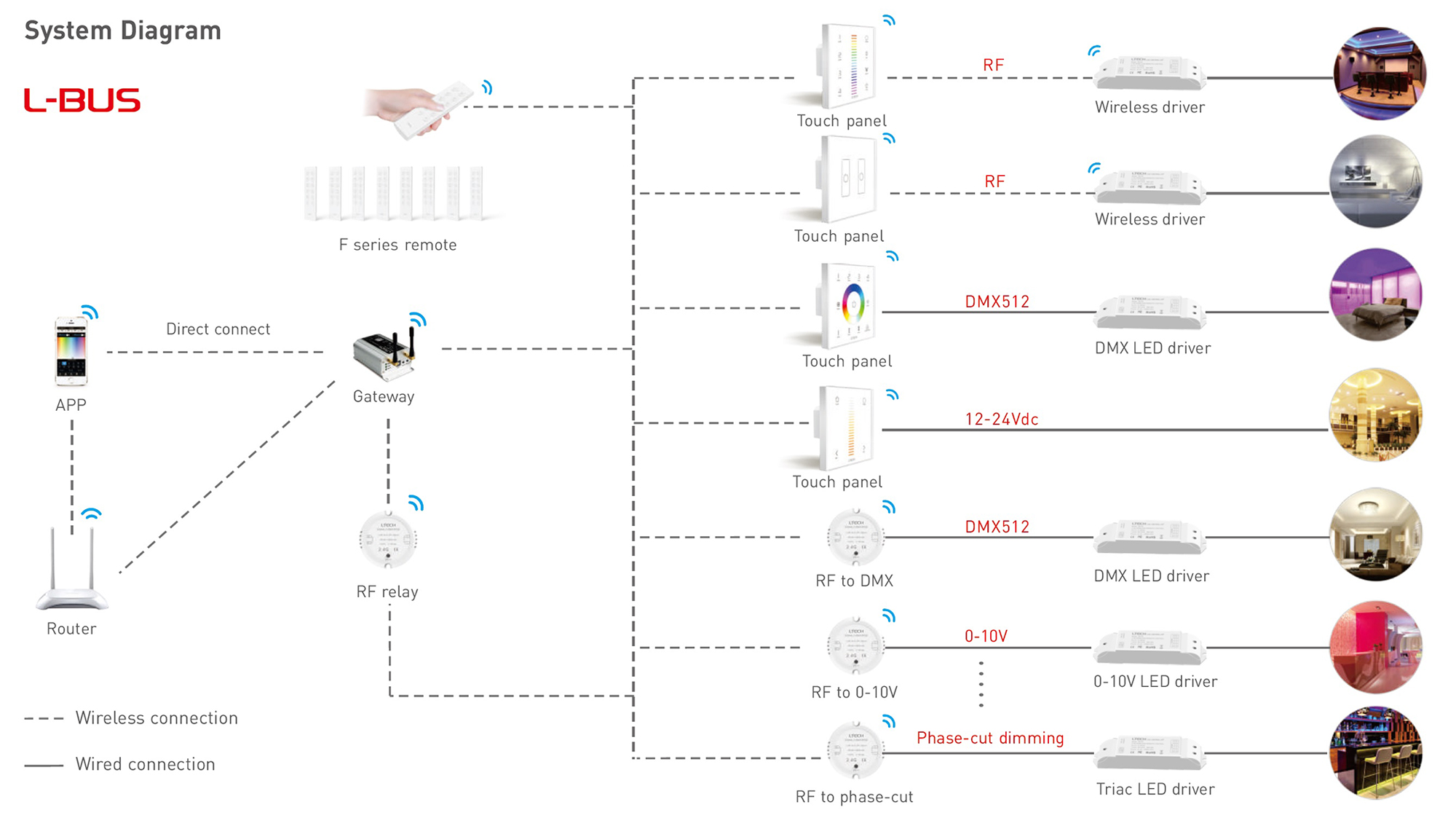

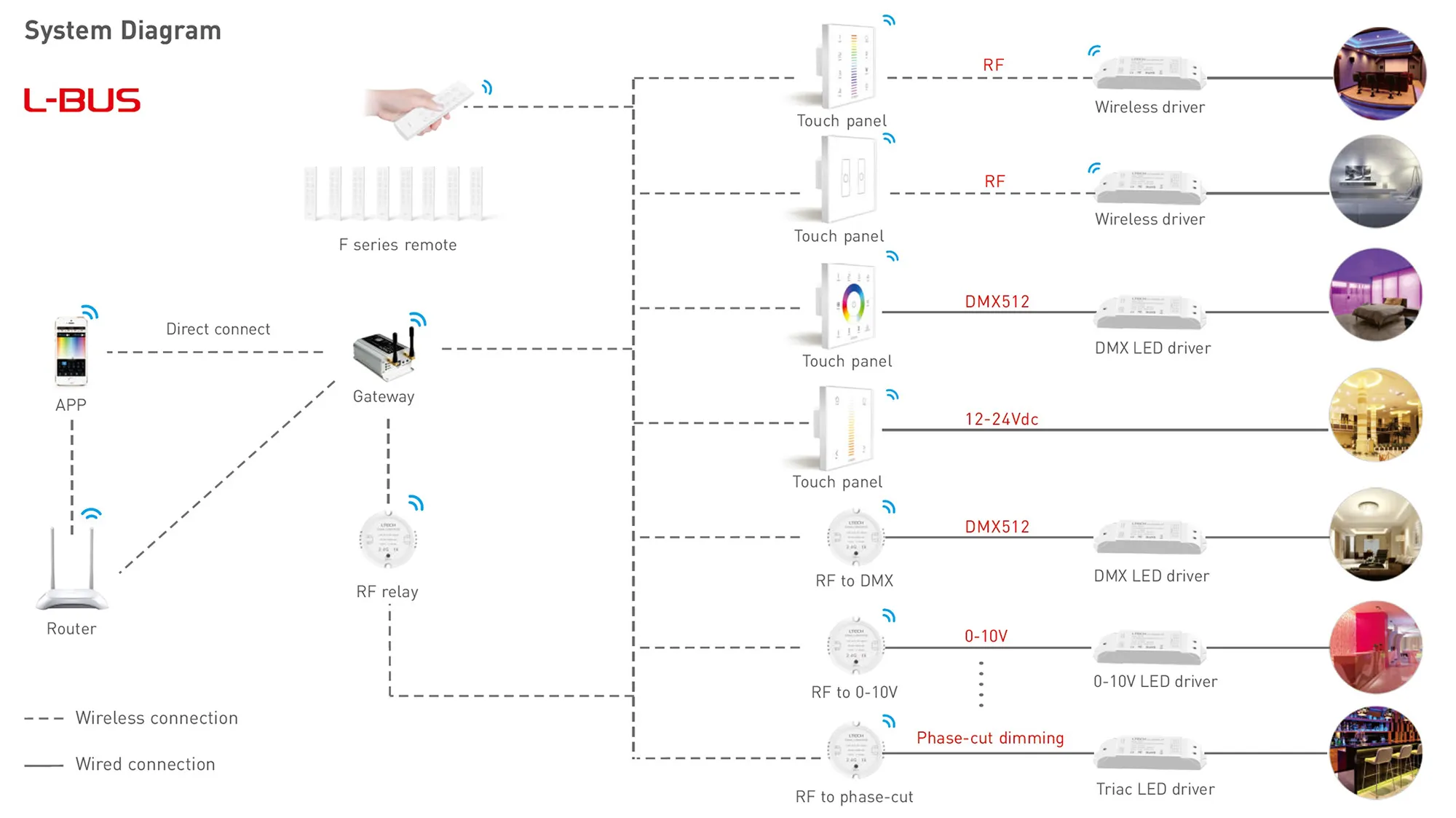

CV Wireless Receiver, 5/12/24V DC, 100/240/480W, 12A (3A x 4CH), Compatible With EX Series Touch Panels, WiFi-106 gateway & F Series Remotes.

F4-3A

Colour Finish :
White

Qty: Order Item Add to Wishlist

RF2.4GHz wireless signal, Dimming, CT, RGB, RGBW LED lights can be controlled. Reverse connection protection, 0-100% Dimming .
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionCV RF 2.4GHz Wireless Receiver 5/12/24V DC, 12Amax. 3A × 4CH, 0-100 Dimming level, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.06kg

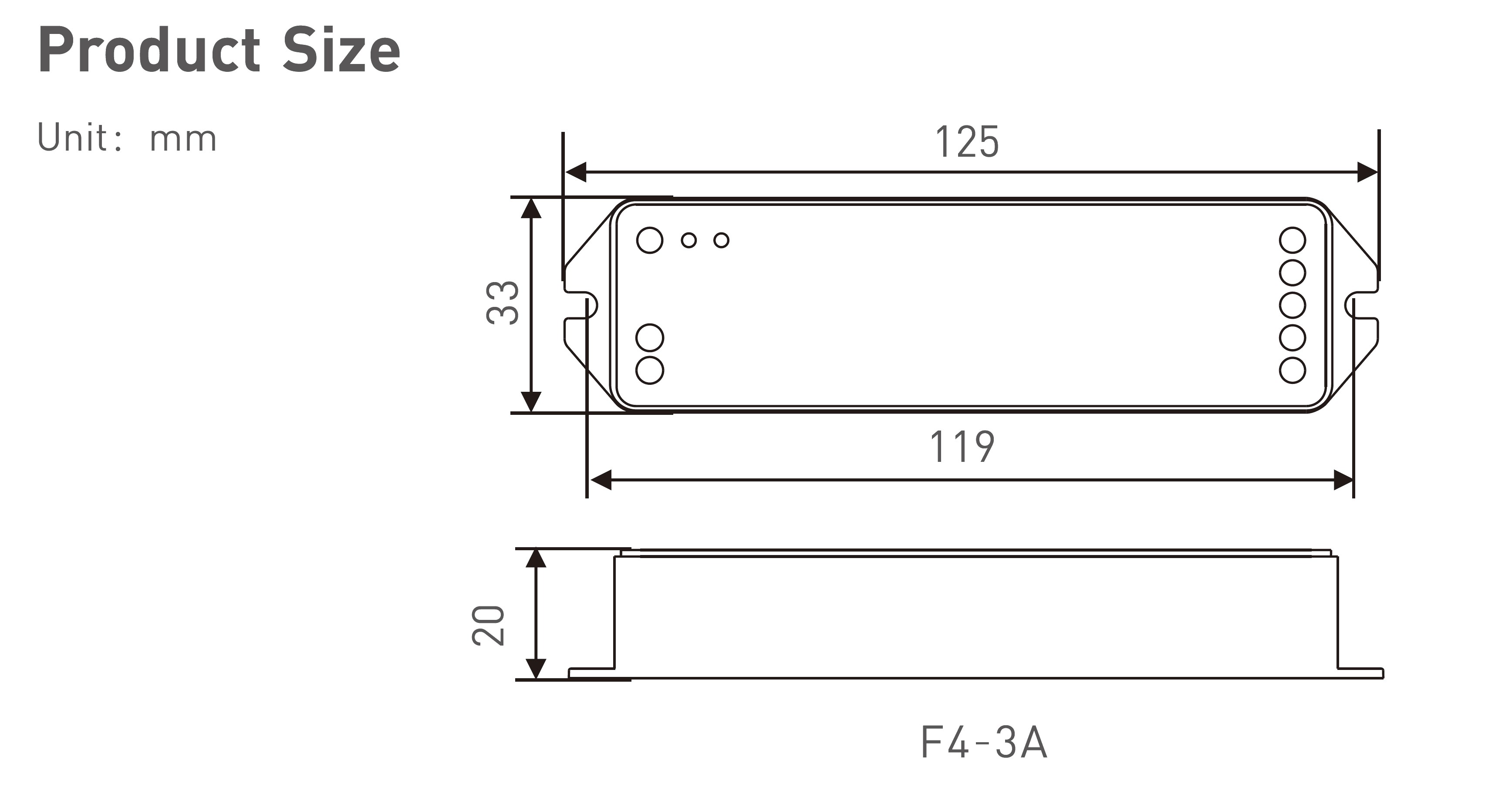

Length (mm)125mm
Width (mm)33mm
Height (mm)20mm
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupSmart Home
Barcode
OverviewRF2.4GHz wireless signal, Dimming, CT, RGB, RGBW LED lights can be controlled. Reverse connection protection, 0-100% Dimming .
Brief DescriptionCV RF 2.4GHz Wireless Receiver 5/12/24V DC, 12Amax. 3A × 4CH, 0-100 Dimming level, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.06kg
Length (mm)125mm
Width (mm)33mm
Height (mm)20mm
Type of DriverConstant Voltage
Dimming Range (%)0-100%
Constant Voltage Output (V)5/12/24V DC
Max. Current Output (A)12A(3A x 4 CH)
Load Range (W)288W
Maximum Output Distance (m)2m
Ta (°C)-30°C to 55°C
Tc (°C)75°C
Casing MaterialPolycarbonate

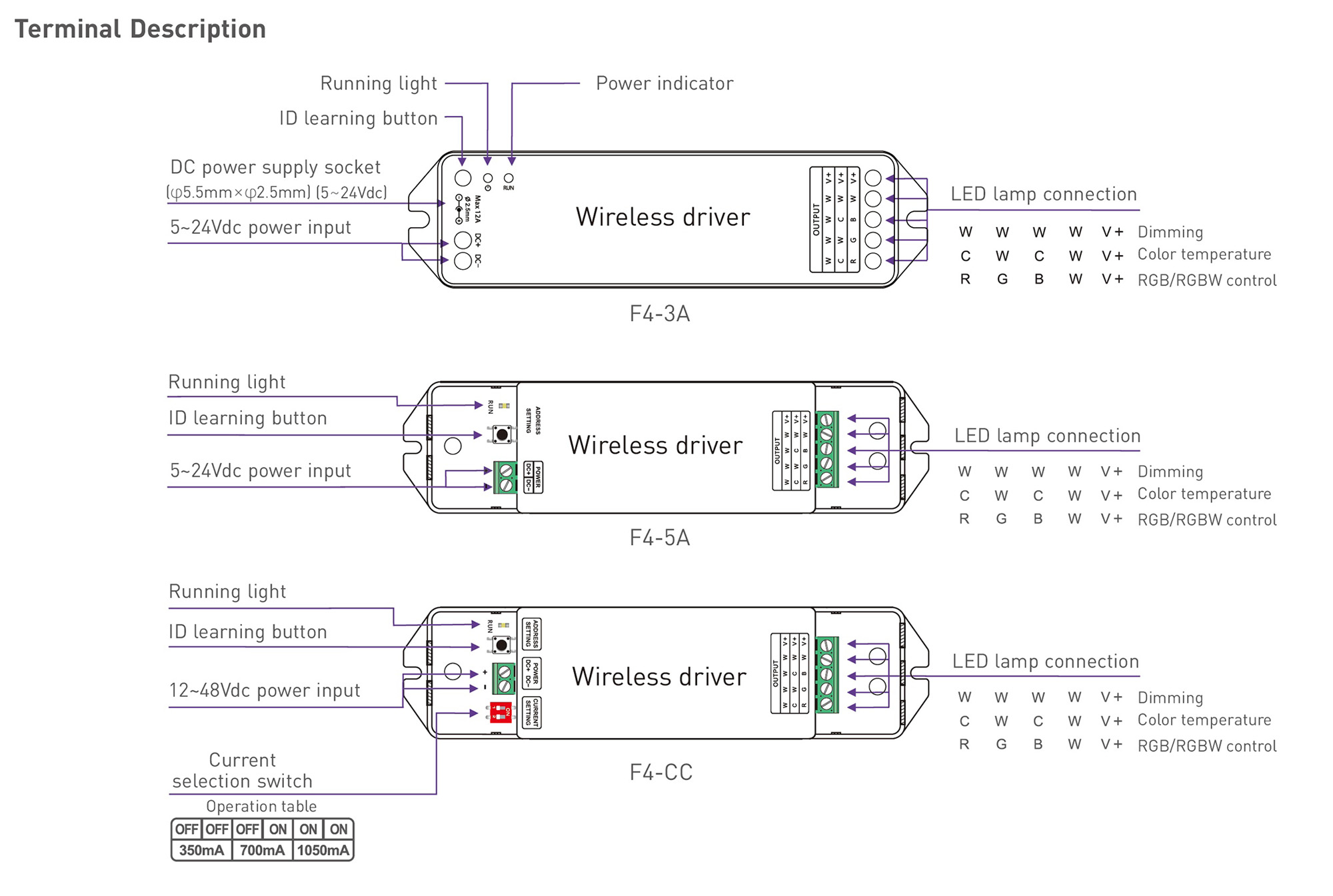

Connection TerminalScrew Terminal
Dimming Protocol2.4GHz RF
Input Voltage (V)5-24V DC
Input Current (A)12A
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
Additional CertificationFCC
Number of Cartons1
Carton Length (cm)12.7cm
Carton Width (cm)3.5cm
Carton Height (cm)2.2cm
Carton CBM0.0001
Carton Nett Weight (kg)0.06kg (±5%) ( ±5%)
Carton Gross Weight (kg)0.06kg (±5%) ( ±5%)
Additional DetailsCompact Size, Easy installation, Wide RF range .
UK Commodity Code8537109990
Country of OriginChina
