DALI, Push Dim, 1.5-15W, C. Current Dimmable Driver, 100/180/300/350/450/500/600/700mA, DC:10-54V, EFF>82%, 5yrs Warranty.

DALI-15-100-700-U1P1

Colour Finish :

White

Qty: Order Item Add to Wishlist

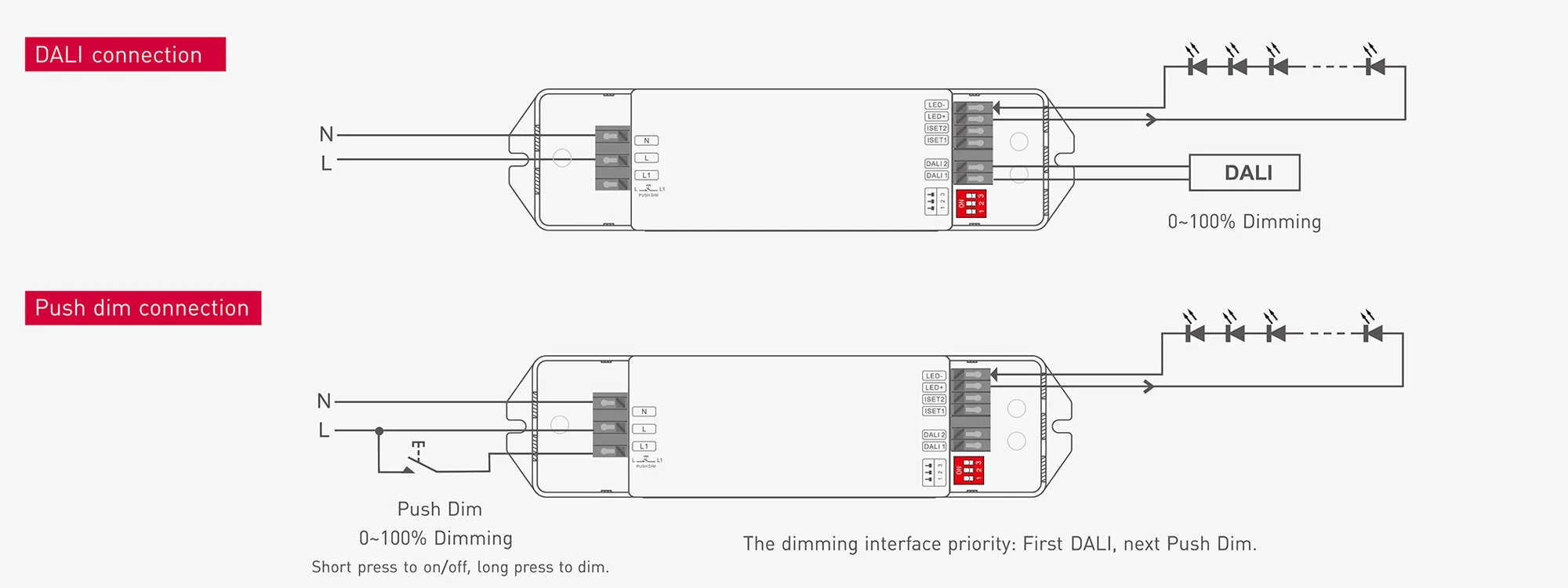

Constant Current DALI, Push Dim LED Driver, Multiple current adjustment, PWM digital dimming, Class 2 power supply. Wide voltage range. Dimming range: 0 to 100%.Low THD, DALI bus standard: IEC62386-101, 102, 207.DALI dimming curve can be either linear or logarithmic. High Power factor.

LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...

To Follow

Quick Spec

Brief Description	DALI, Push Dim 1-15W Current Dimmable Driver.100-700mA adjustable, Class II, 0-100% Dim, PWM digital dimming, IP20.
Colour Finish	White
Item Nett Weight (kg)	0.175kg
Length (mm)	175mm
Width (mm)	44mm
Height (mm)	30mm
Protection Class	Class 2 - Double Insulated
Dimmable	Yes - Suitable Dimmer Required
Dimmer Included	No
IP Rating	IP20
Working Humidity (%RH)	20~95%RH
Average Life (hrs)	50000hrs
Warranty (yrs)	5yrs

Features

Features, Will be added soon

Full Specifications

Marketing Information

Collection Group	DALI Constant Current
Overview	Constant Current DALI, Push Dim LED Driver, Multiple current adjustment, PWM digital dimming, Class 2 power supply. Wide voltage range. Dimming range: 0 to 100%.Low THD, DALI bus standard: IEC62386-101, 102, 207.DALI dimming curve can be either linear or logarithmic. High Power factor.
Brief Description	DALI, Push Dim 1-15W Current Dimmable Driver.100-700mA adjustable, Class II, 0-100% Dim, PWM digital dimming, IP20.

Physical Characteristics

Colour Finish	White

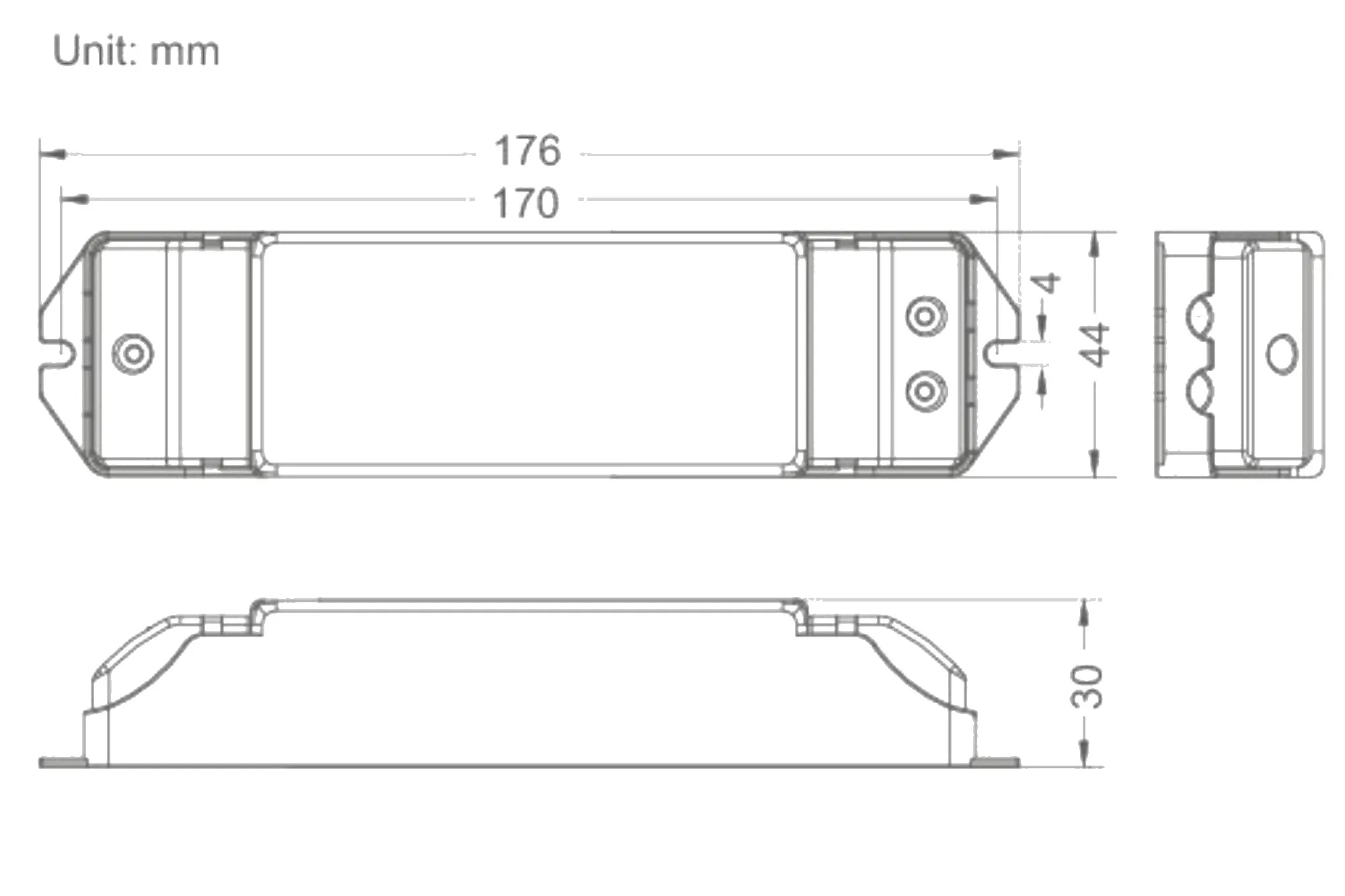

Mechanical Specification

Item Nett Weight (kg)	0.175kg
Length (mm)	175mm
Width (mm)	44mm
Height (mm)	30mm

Driver Specification

Type of Driver	Constant Current
Dimming Range (%)	0-100%
Power Factor (?)	>0.90 (±5%)
Constant Current Output (mA)	100-700mA
Min/Max. Voltage Output (V)	10-54V
Load Range (W)	1-15W
Typical Current Ripple (%)	=2%
Ta (°C)	-30°C to 55°C
Tc (°C)	75°C
Casing Material	Polycarbonate
Connection Terminal	Push Terminal
Average Life Of Driver (hrs)	50000hrs
Dimming Protocol	DALI, Push Dim, PWM
Efficiency	0.82

Electrical & Safety Specification

Protection Class	Class 2 - Double Insulated
Input Voltage (V)	100-270V~50/60Hz
Input Current (A)	0.15A
Dimmable	Yes - Suitable Dimmer Required
Dimmer Included	No
IP Rating	IP20

Sensor Specification

Working Humidity (%RH)	20~95%RH

Quality Standards

Average Life (hrs)	50000hrs
Warranty (yrs)	5yrs
UKCA/CE	Yes
Rohs	Yes
SELV	Yes
EMV/EMC	Yes
Additional Certification	FCC
IEC Compliant	IEC/EN61347-1, IEC/EN61347-2-13

Carton Information

Number of Cartons	1
Carton Length (cm)	17.8cm
Carton Width (cm)	4.8cm
Carton Height (cm)	3.3cm
Carton CBM	0.0003
Carton Nett Weight (kg)	0.175kg (±5%)
Carton Gross Weight (kg)	0.175kg (±5%)

Additional Information

Additional Details	8 output currents optional, Over-heat Protection, Overload Protection, Short Circuit Protection and Non-load Protection. Withstand Voltage I/P-O/P: 3750Vac, Isolation Resistance I/P-O/P: 100MO/500VDC/25°C/70%RH,Vibration 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
UK Commodity Code	8543709990
Country of Origin	China
