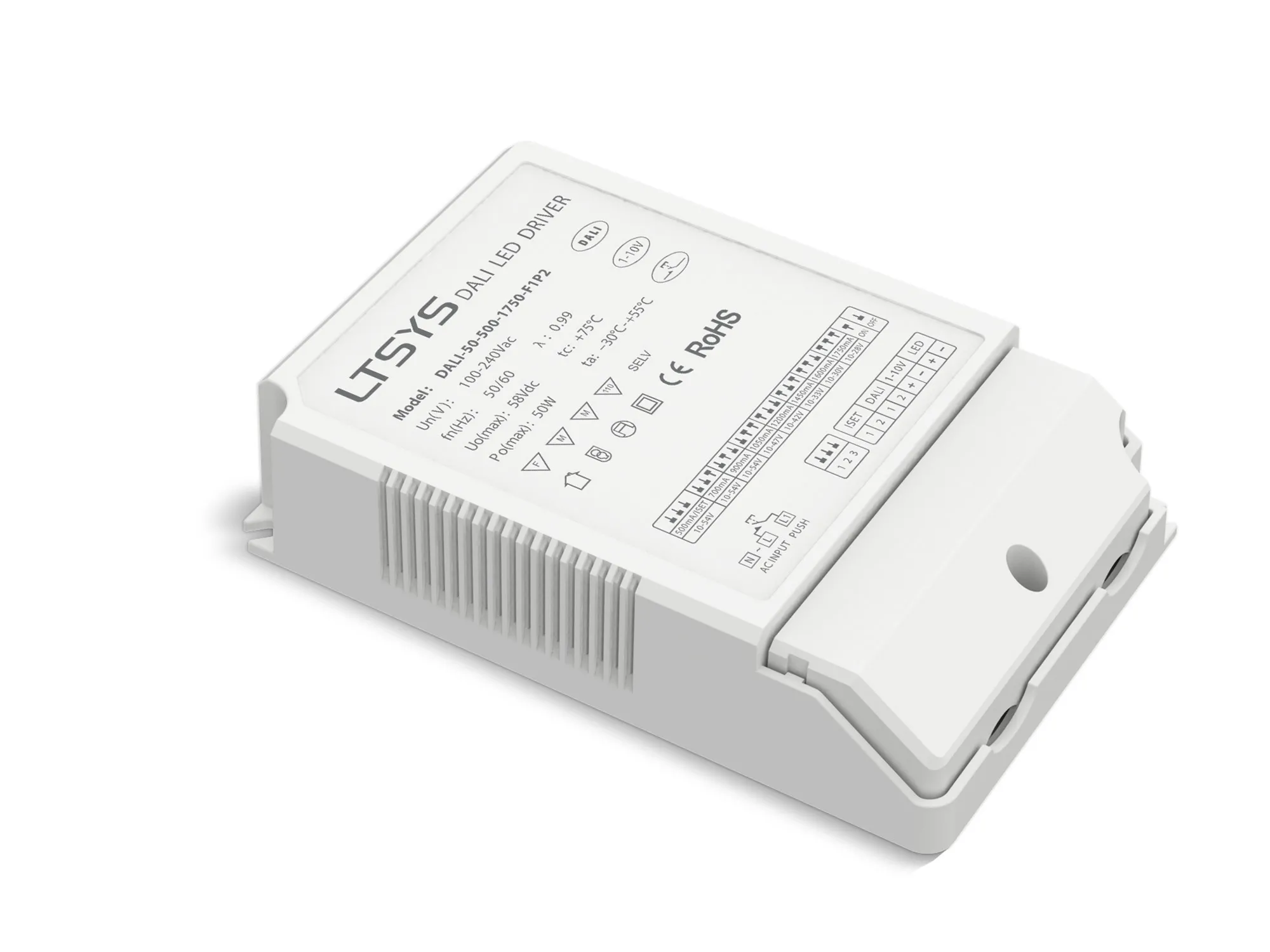

DALI, 0/1-10V, PWM, Push Dim, 5-50W Current Dimmable Drive DC 10-54V

DALI, 0/1-10V, Resistor, PWM, Push Dim, 5-50W, CC Dimmable Driver, 500/700/900/1050/1200/1450/1600/1750mA, DC:10-54V, EFF>85%, 3yrs Warranty

DALI-50-500-1750-F1P2

Qty: Order Item Add to Wishlist

LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionDALI, 0/1-10V, PWM, Push Dim, 5-50W Current Dimmable Drive DC 10-54V
Colour FinishWhite
Item Nett Weight (kg)0.31kg

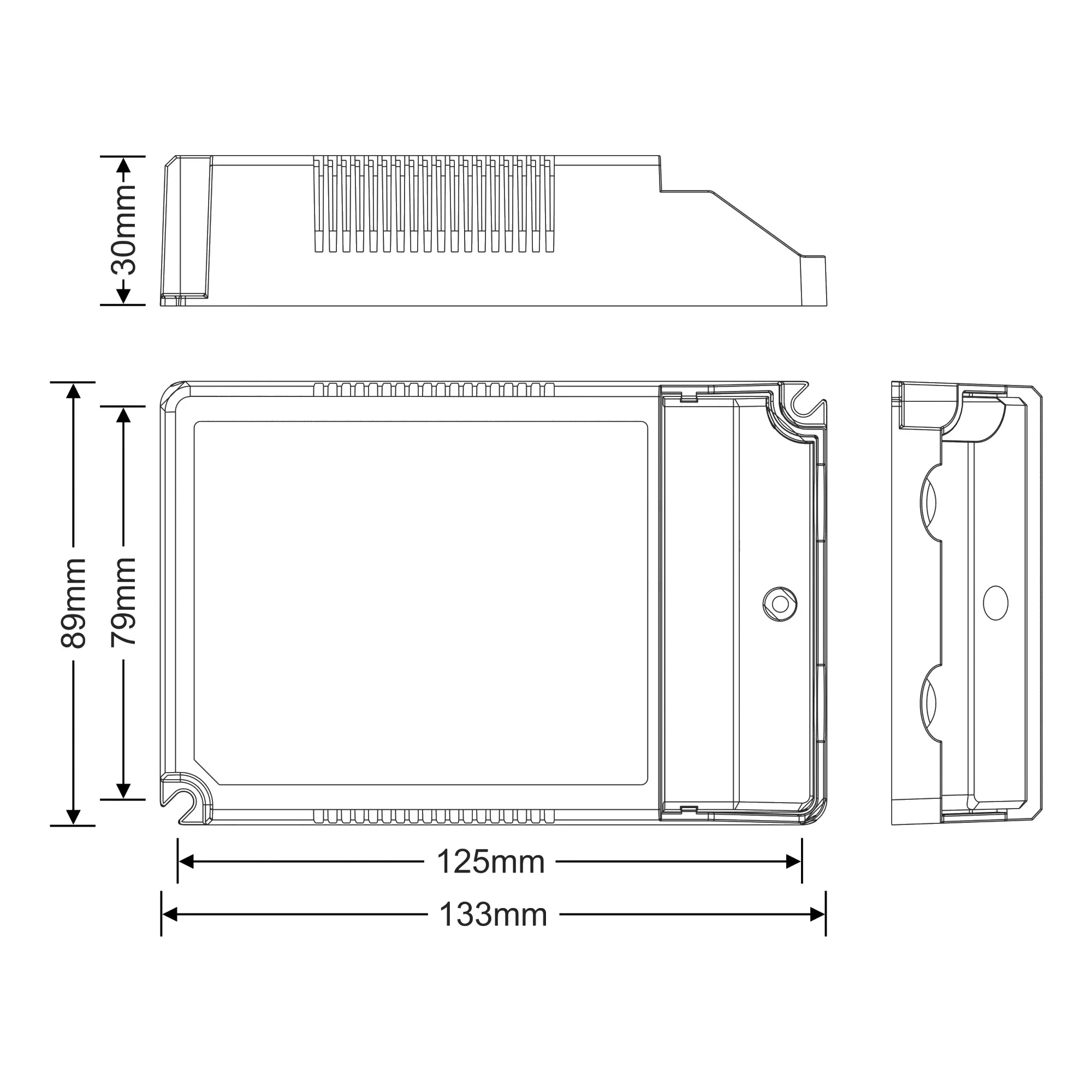

Length (mm)133mm
Width (mm)89mm
Height (mm)30mm
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupDali Constant Current
Barcode5056037129752
Brief DescriptionDALI, 0/1-10V, PWM, Push Dim, 5-50W Current Dimmable Drive DC 10-54V
Colour FinishWhite
Item Nett Weight (kg)0.31kg
Length (mm)133mm
Width (mm)89mm
Height (mm)30mm
Type of DriverConstant Current
Dimming Range (%)0-100%
Power Factor (?)>0.99 (±5%)
Constant Current Output (mA)500/700/900/1050/1200/1450/1600/1750mA
Min/Max. Voltage Output (V)10-54V
Load Range (W)5-50W
Connection TerminalPush Terminal

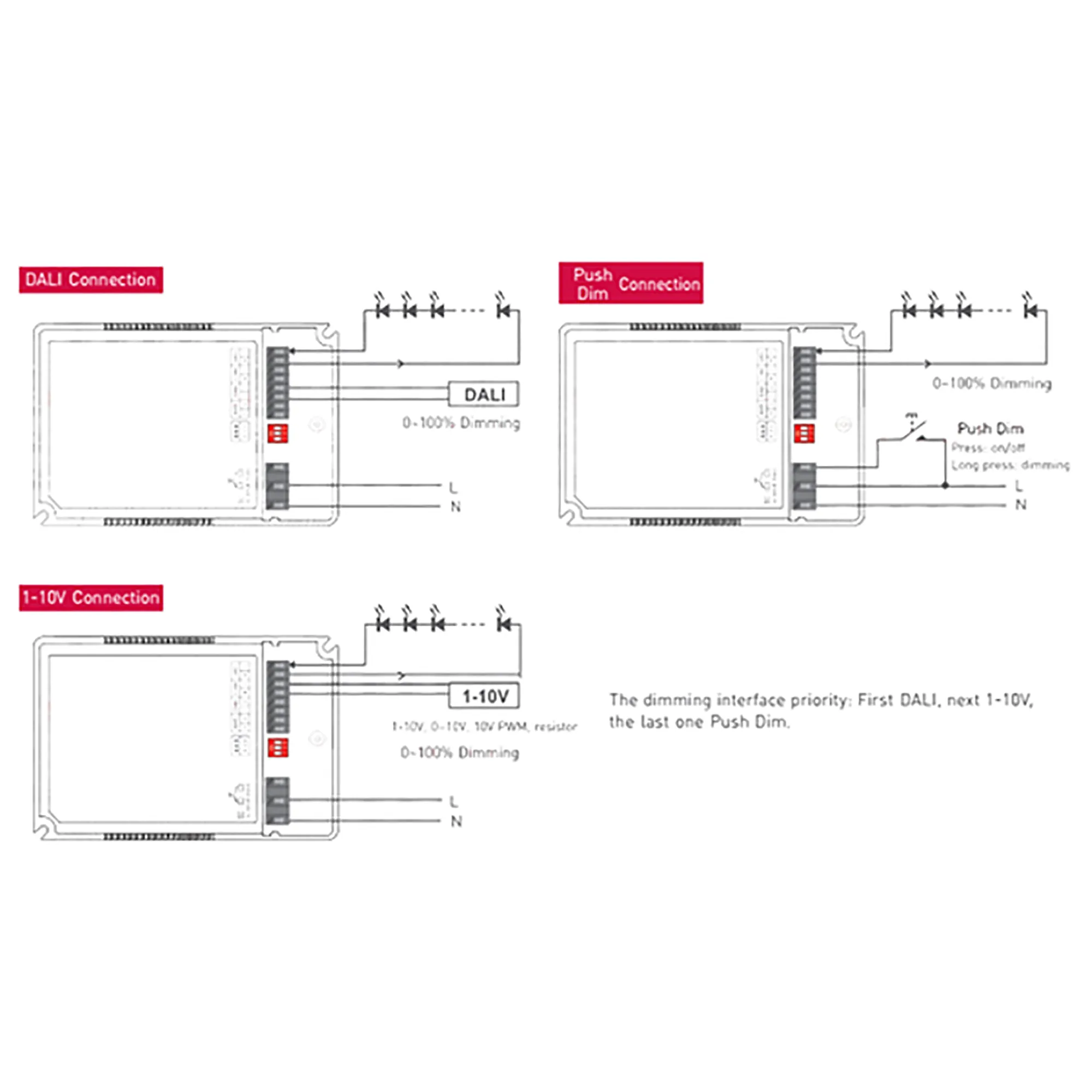

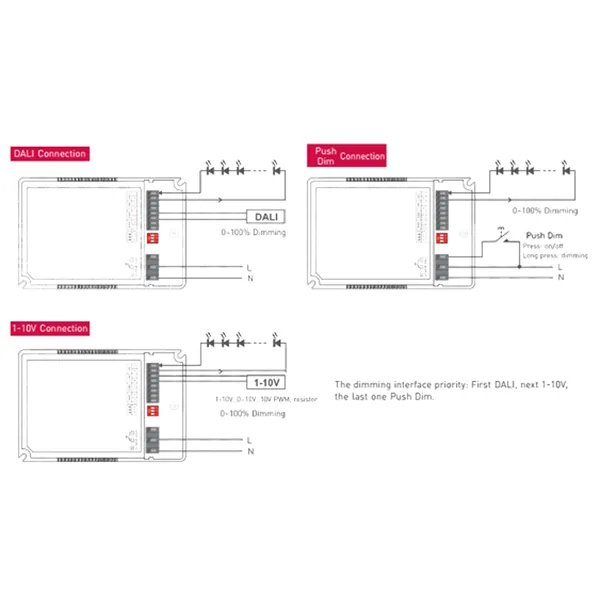

Dimming ProtocolDALI, 0/1-10V, PWM, Resistor, Push Dim
Efficiency>85%
Protection ClassClass 2 - Double Insulated
Input Voltage (V)100-240V~50/60Hz
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
SELVYes
EMV/EMCYes
Number of Cartons1
Carton Length (cm)13.5cm
Carton Width (cm)9cm
Carton Height (cm)3.5cm
Carton CBM0.0004
Carton Nett Weight (kg)0.31kg (±5%)
Carton Gross Weight (kg)0.320kg (±5%)
Additional Details8 output currents optional, or set up any output current by connecting a resistor.
UK Commodity Code8504401400
Country of OriginChina
