DALI 0-100% Dim, PWM Digital Dim,DALI DT6, CC 40W 300-1050mA 9-42Vdc.

Intelligent LED Driver, DALI 0-100% Dim, PWM Digital Dim,DALI DT6, CC 40W 300-1050mA 9-42Vdc 100-240Vac , IP20, 5yrs Warrenty.

SE-40-300-1050-W1D

Qty: Order Item Add to Wishlist

LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionDALI 0-100% Dim, PWM Digital Dim,DALI DT6, CC 40W 300-1050mA 9-42Vdc.
Colour FinishWhite
Item Nett Weight (kg)0.170kg

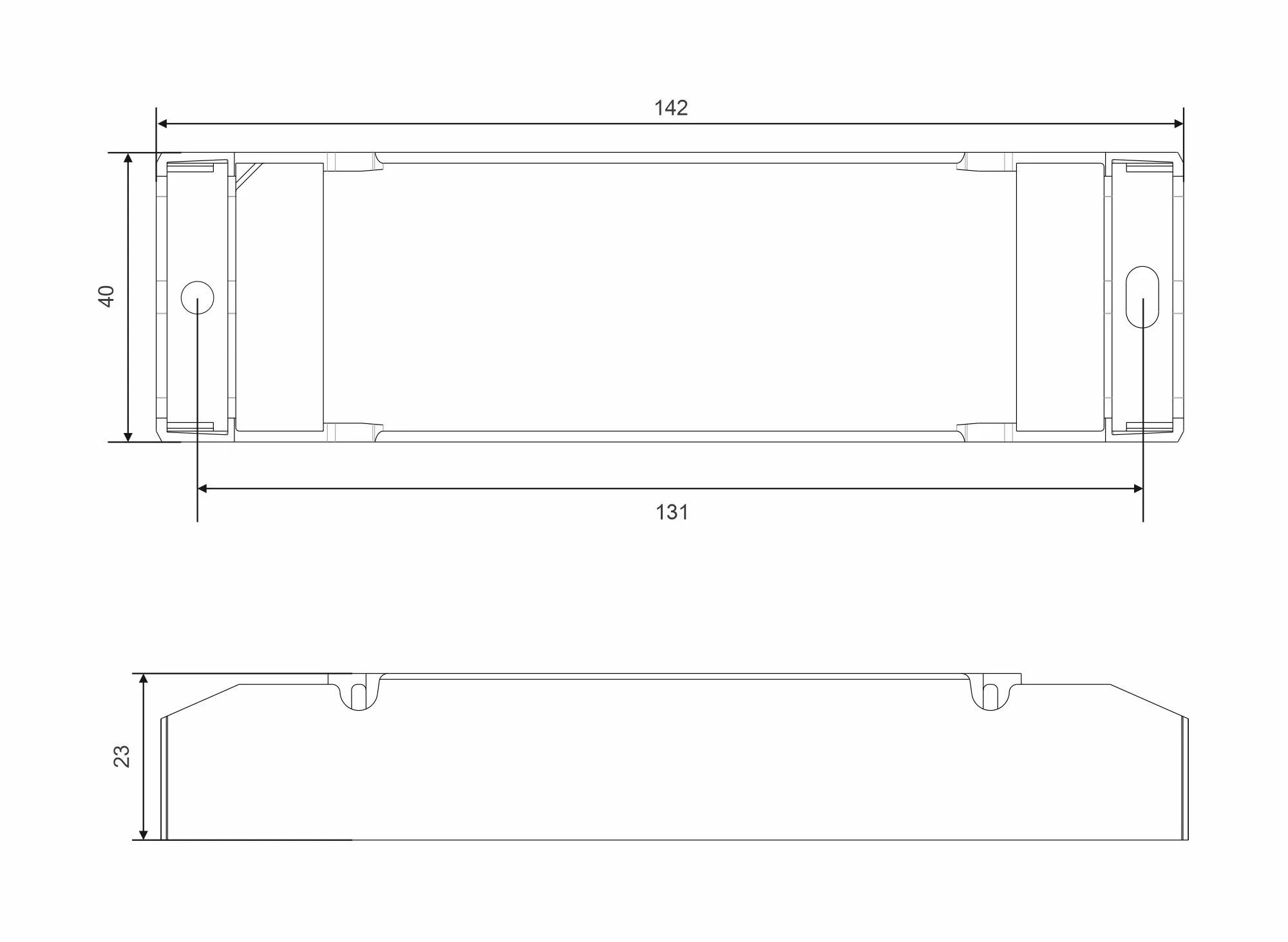

Length (mm)142mm
Width (mm)40mm
Height (mm)23mm
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP44
Working Humidity (%RH)20 - 95%RH
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupDali Constant Current
Brief DescriptionDALI 0-100% Dim, PWM Digital Dim,DALI DT6, CC 40W 300-1050mA 9-42Vdc.
Colour FinishWhite
Item Nett Weight (kg)0.170kg
Length (mm)142mm
Width (mm)40mm
Height (mm)23mm
Type of DriverConstant Current
Dimming Range (%)0-100%
Constant Current Output (mA)300/350/400/450/500/550/600/650/700/750/800/850/900/950/1000/1050mA
Load Range (W)2.7-40W
Ta (°C)-20°C to 45°C
Tc (°C)90°C
Casing MaterialPolycarbonate
Connection TerminalScrew Terminal
Dimming ProtocolDALI 2 ,DT6,T-PWM
Total Power Consumption (W)40W (±5%)
Input Voltage (V)200-240V~50/60Hz
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP44
Working Humidity (%RH)20 - 95%RH
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Additional CertificationFCC
Number of Cartons1
UK Commodity Code8543709990
Country of OriginChina
