Intelligent LED Driver, DALI  0-100% Dim, PWM Digital Dim,DALI DT6, CC 10W 350-700mA 2-12Vdc  Out put Range.0.7-8.4W , IP20, 5yrs Warrenty.

Intelligent LED Driver, DALI 0-100% Dim, PWM Digital Dim,DALI DT6, CC 10W 350-700mA 2-12Vdc Out put Range.0.7-8.4W , IP20, 5yrs Warrenty.

SE-10-350-700-W1DS

Qty: Order Item Add to Wishlist

LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Colour FinishWhite

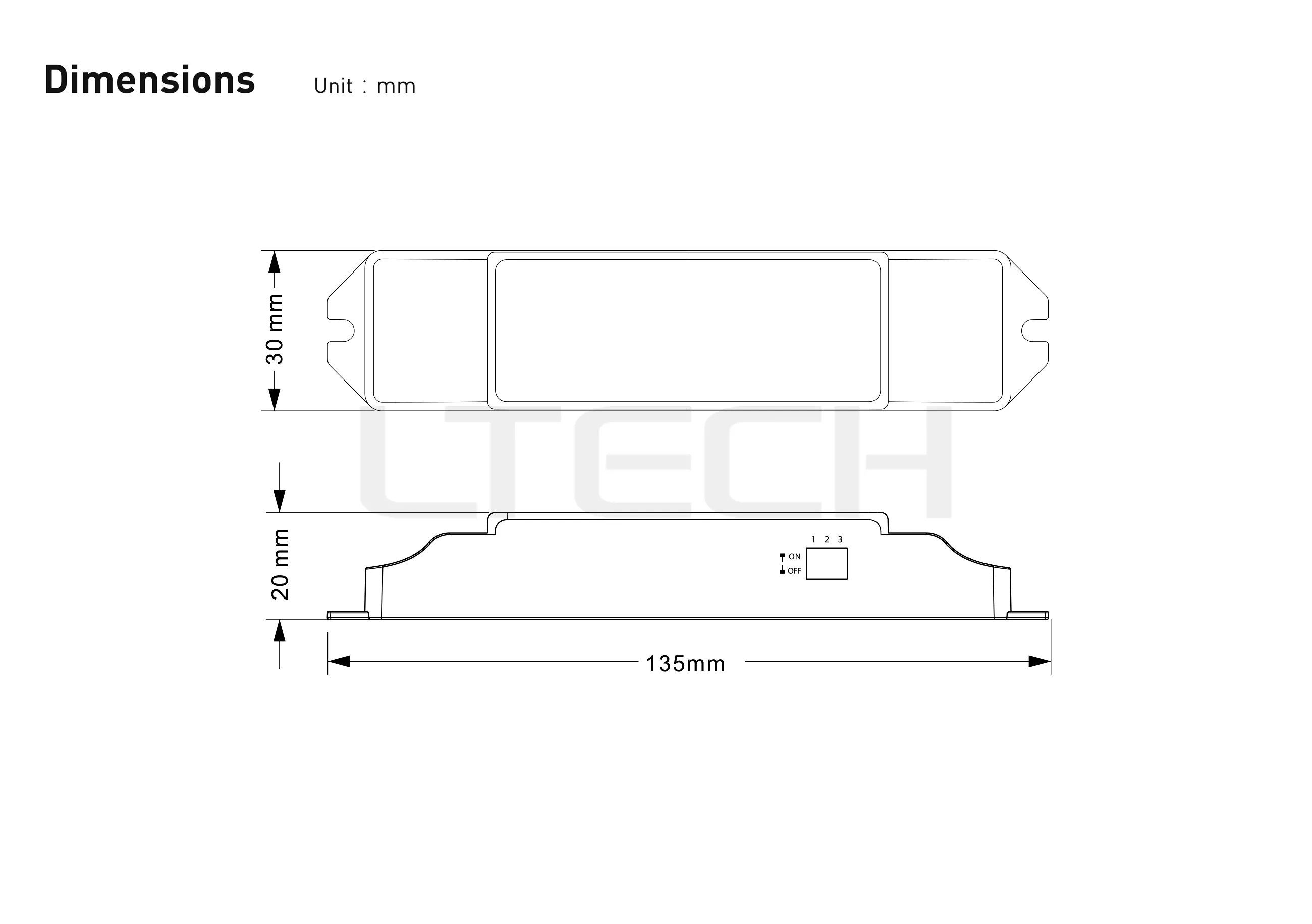

Length (mm)135mm
Width (mm)30mm
Height (mm)20mm
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupDALI Constant Current
Barcode5056037237129
Colour FinishWhite
Length (mm)135mm
Width (mm)30mm
Height (mm)20mm
Type of DriverConstant Current
Dimming Range (%)0-100%
Constant Current Output (mA)350-700mA
Load Range (W)0.7-8.4W
Ta (°C)-20°C to 55°C
Tc (°C)80°C
Casing MaterialPolycarbonate
Connection TerminalScrew Terminal
Average Life Of Driver (hrs)50000hrs
Dimming ProtocolDALI DT6
Total Power Consumption (W)10W (±5%)
Input Voltage (V)200-240V~50/60Hz
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Number of Cartons1
UK Commodity Code8543709990
Country of OriginChina
