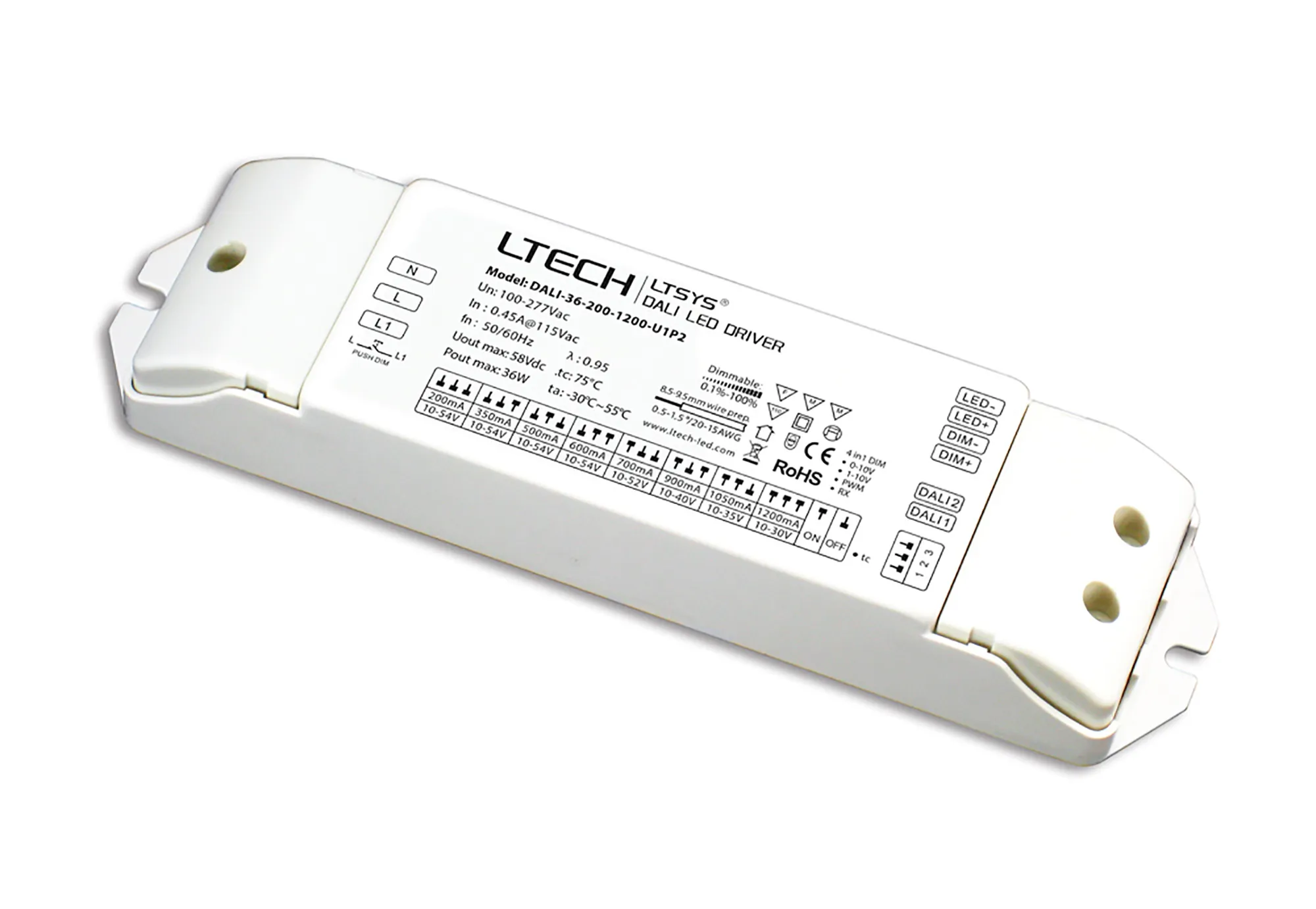

DALI 0/1-10V PWM Push Dim 2-36W Current Dimmable Driver DC:10-54V

DALI, 0/1-10V, PWM, Resistor, Push Dim, 2-36W, CC Dimmable Driver, 200/350/500/600/700/900/1050/1200mA, DC:10-54V, EFF>88%, 5yrs Warranty

DALI-36-200-1200-U1P2

Qty: Order Item Add to Wishlist

LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionDALI 0/1-10V PWM Push Dim 2-36W Current Dimmable Driver DC:10-54V
Colour FinishWhite
Item Nett Weight (kg)0.165kg

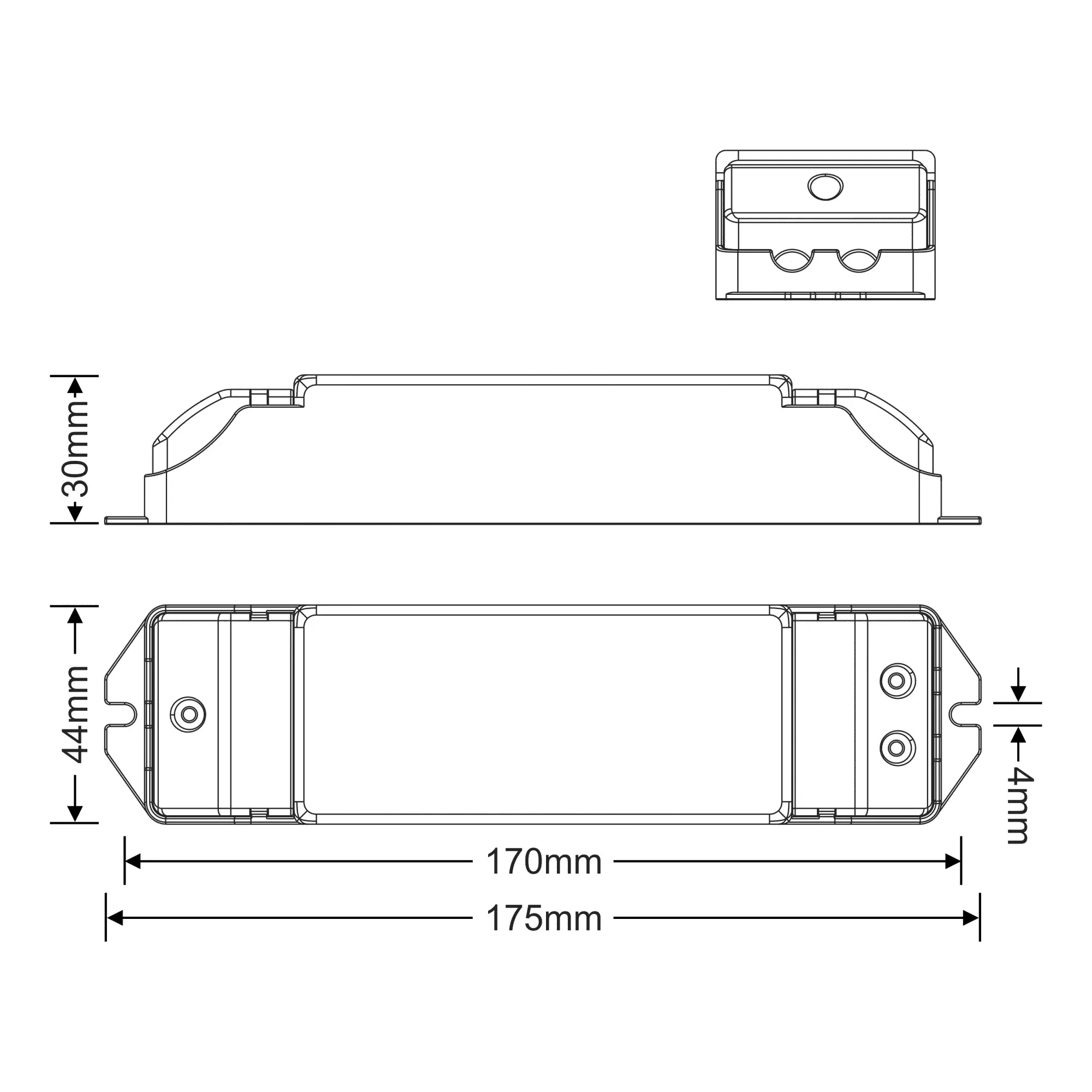

Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupDali Constant Current
Brief DescriptionDALI 0/1-10V PWM Push Dim 2-36W Current Dimmable Driver DC:10-54V
Colour FinishWhite
Item Nett Weight (kg)0.165kg
Length (mm)175mm
Width (mm)44mm
Height (mm)30mm
Type of DriverConstant Current
Dimming Range (%)0-100%
Power Factor (?)>0.97 (±5%)
Constant Current Output (mA)200/350/500/600/700/900/1050/1200mA
Min/Max. Voltage Output (V)10-54V
Load Range (W)2-36W
Connection TerminalPush Terminal
Dimming ProtocolDALI, 0/1-10V, PWM, Resistor, Push Dim
Efficiency>88%
Protection ClassClass 2 - Double Insulated
Input Voltage (V)100-270V~50/60Hz
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
SELVYes
EMV/EMCYes
Number of Cartons1
Carton Length (cm)17.8cm
Carton Width (cm)4.8cm
Carton Height (cm)3.3cm
Carton CBM0.0002
Carton Nett Weight (kg)0.165kg (±5%)
Carton Gross Weight (kg)0.175kg (±5%)
Additional Details8 output currents optional
UK Commodity Code8504401400
Country of OriginChina
