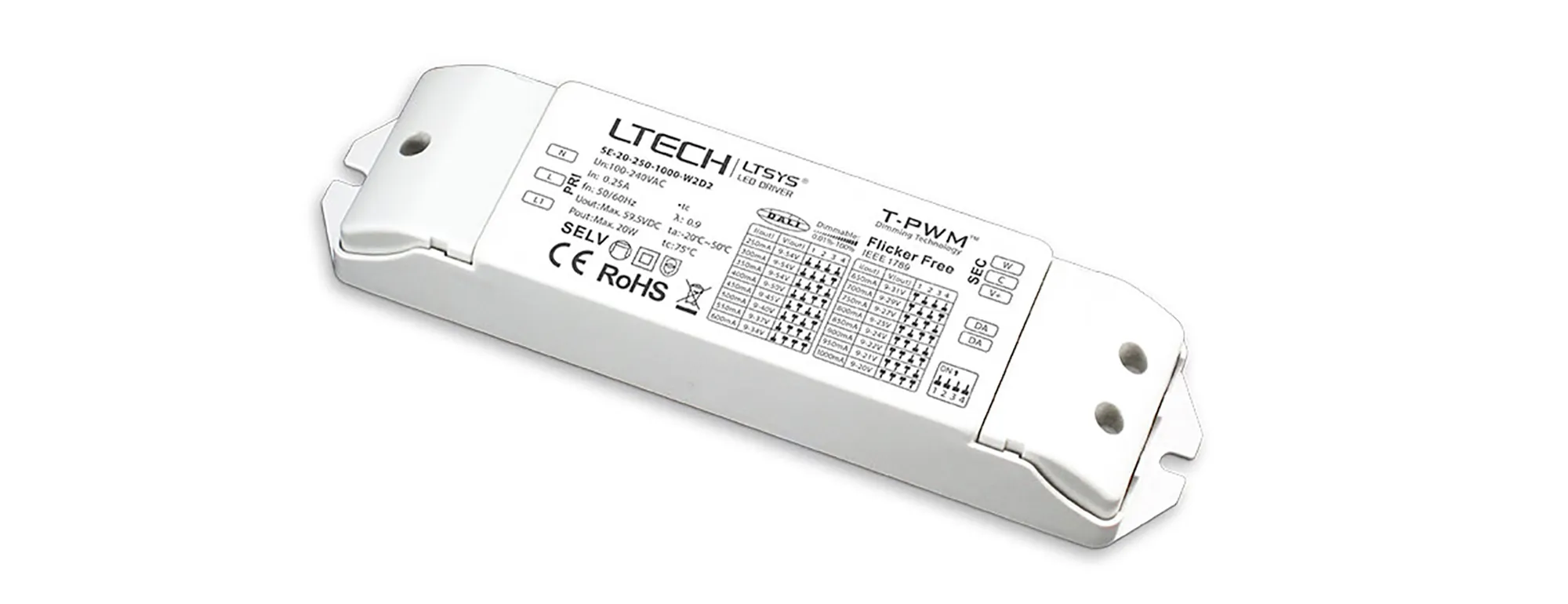

DALI DT8 CT adjustment driver, 0-100% Dim, T-PWM digital dimming, CC 20W, 250-1000mA output, 100-240Vac I/P, Class 2, IP20.

Intelligent LED CT Driver, DALI DT8 0-100% Diming range, T-PWM Dim, CC 20W 9-54Vdc 250-1000mA O/P, 100-240Vac I/P, IP20, 5yrs Warrenty.

SE-20-250-1000-W2D2

Qty: Order Item Add to Wishlist

DALI Dimming Constant Current LED Driver, T-PWM digital dimming, Wide Dimming range. Linear curve or Logarithmic dimming curve.0-100% flicker-free, achieve the level of high frequency exemption assessment. Class 2 power supply, Suitable for indoor use.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionDALI DT8 CT adjustment driver, 0-100% Dim, T-PWM digital dimming, CC 20W, 250-1000mA output, 100-240Vac I/P, Class 2, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.16kg

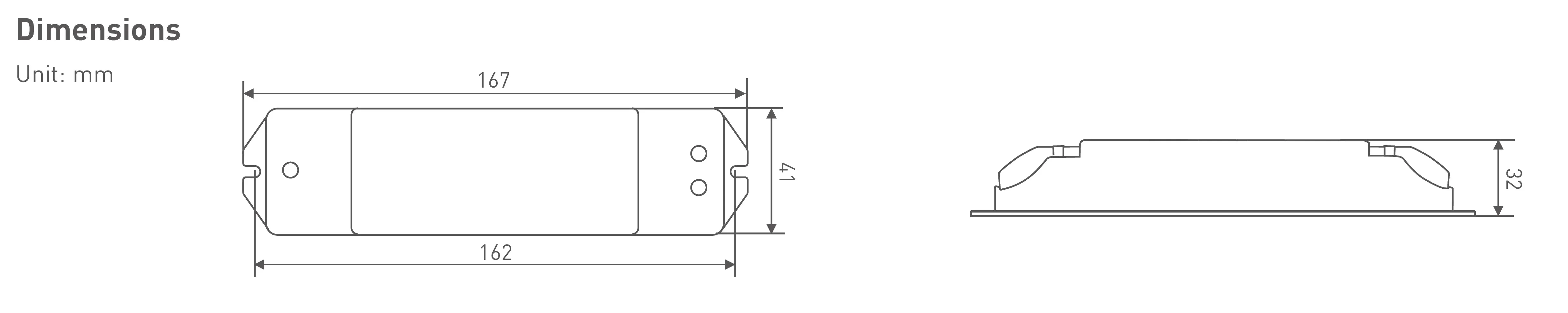

Length (mm)167mm
Width (mm)41mm
Height (mm)32mm
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupDali Constant Current
Brief DescriptionDALI DT8 CT adjustment driver, 0-100% Dim, T-PWM digital dimming, CC 20W, 250-1000mA output, 100-240Vac I/P, Class 2, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.16kg
Length (mm)167mm
Width (mm)41mm
Height (mm)32mm
Type of DriverConstant Current
Dimming Range (%)0-100%
Power Factor (?)>0.90 (±5%)

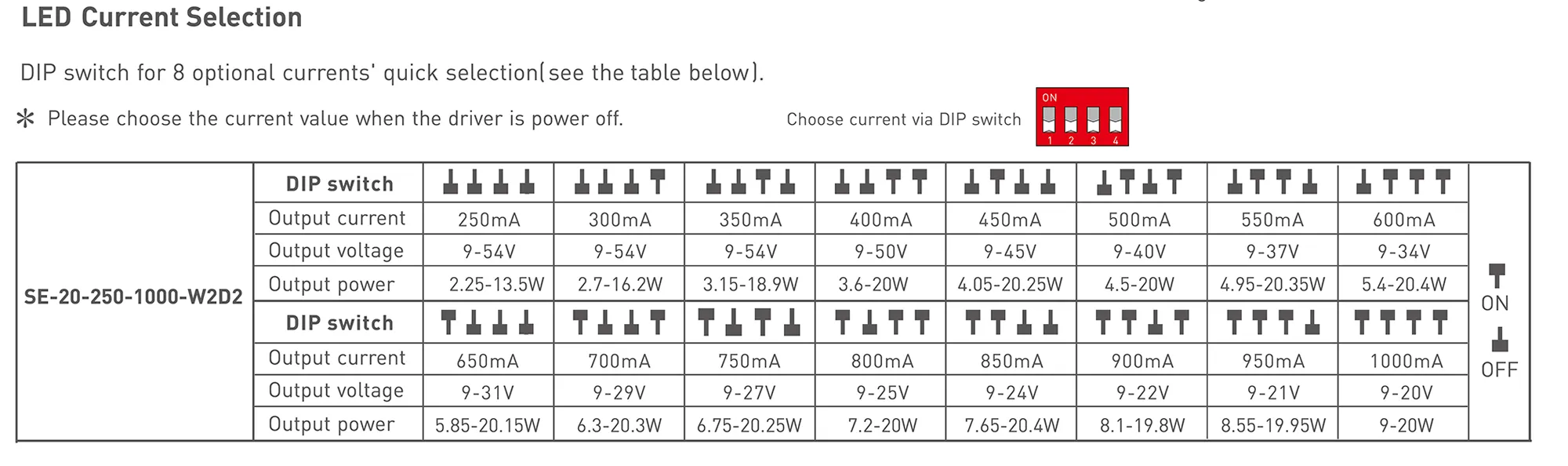

Constant Current Output (mA)250-1000mA
Min/Max. Voltage Output (V)9-54V
Load Range (W)2.25-20W
Typical Current Ripple (%)<2%
Maximum Output Distance (m)2m
Ta (°C)-30°C to 50°C
Tc (°C)75°C
Casing MaterialPolycarbonate
Connection TerminalScrew Terminal

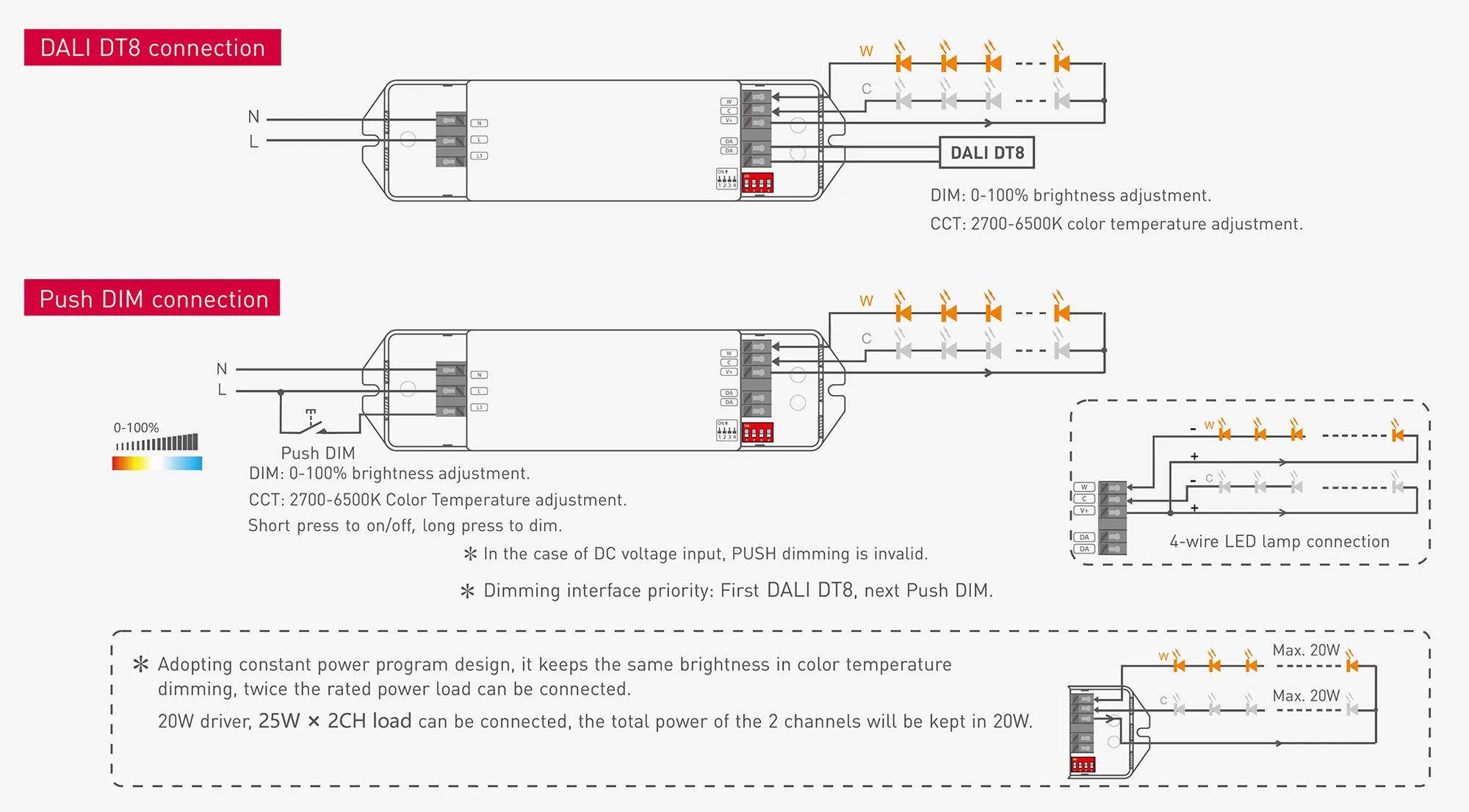

Dimming ProtocolDALI, PWM
Efficiency>0.73
Input Voltage (V)100-240V~50/60Hz
Input Current (A)0.13A
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
SELVYes
EMV/EMCYes
Additional CertificationIEEE-PAR 1789
IEC CompliantIEC/EN61347-1, IEC/EN61347-2-13
Number of Cartons1
Carton Length (cm)16.7cm
Carton Width (cm)4.1cm
Carton Height (cm)3.2cm
Carton CBM0.0002
Carton Nett Weight (kg)0.16kg (±5%)
Carton Gross Weight (kg)0.16kg (±5%)
InstallationRequires Installation By Qualified Electrician
Additional DetailsOver-heat/Over voltage/Overload/Short circuit protection, Recover automatically. Compliant with Safety Extra LowVoltage standard. DALI bus standard: IEC62386-101,102, 207.Flicker-free Dimming.
UK Commodity Code8543709990
Country of OriginChina
