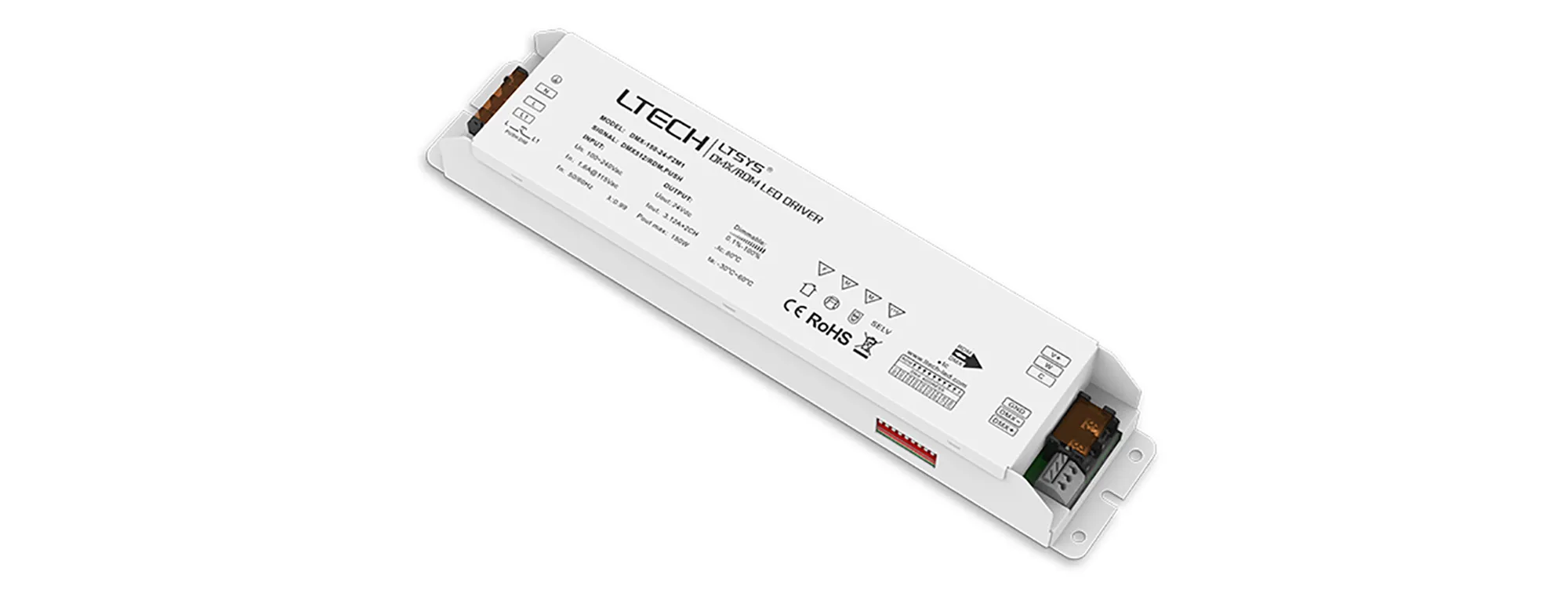

DMX512/RDM, Push Dim, PWM, 150W, C.Voltage Dimmable Driver, 24V 3.12A x 2CH, EFF>91%, 3yrs Warranty.

Push Dim, PWM, 150W, Constant Voltage Dimmable Driver, 24V, Max Current Output:3.12A x 3CH, EFF>91%, 3yrs Warranty

DMX-150-24-F2M1

Qty: Order Item Add to Wishlist

LED Intelligent Driver, RDM remote device management protocol, 2CH PWM output. Flicker-free Dimming, Compliant with Safety Extra LowVoltage standard.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionDMX512/RDM, Push Dim, PWM, 150W, C.Voltage Dimmable Driver, 24V 3.12A x 2CH, EFF>91%, 3yrs Warranty.
Colour FinishWhite
Item Nett Weight (kg)0.79kg

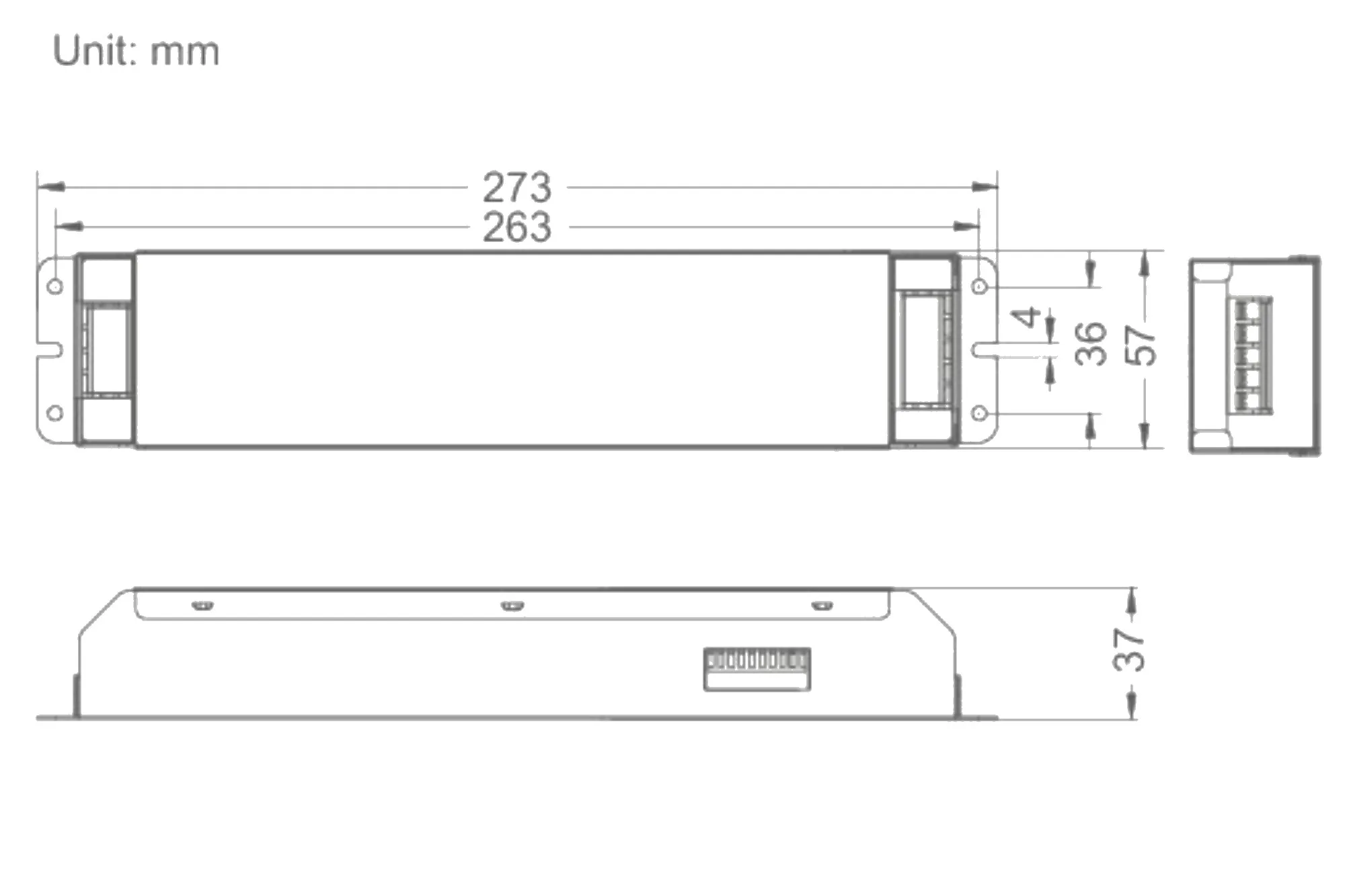

Length (mm)273mm
Width (mm)57mm
Height (mm)37mm
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupDMX Constant Voltage
OverviewLED Intelligent Driver, RDM remote device management protocol, 2CH PWM output. Flicker-free Dimming, Compliant with Safety Extra LowVoltage standard.
Brief DescriptionDMX512/RDM, Push Dim, PWM, 150W, C.Voltage Dimmable Driver, 24V 3.12A x 2CH, EFF>91%, 3yrs Warranty.
Colour FinishWhite
Item Nett Weight (kg)0.79kg
Length (mm)273mm
Width (mm)57mm
Height (mm)37mm
Type of DriverConstant Voltage
Dimming Range (%)0-100%
Power Factor (?)>0.95 (±5%)
Constant Voltage Output (V)24V DC
Max. Current Output (A)6.25A(3.125A x 2CH)
Load Range (W)150W
Ta (°C)-30°C to 60°C
Tc (°C)85°C
Casing MaterialPolycarbonate
Connection TerminalScrew Terminal

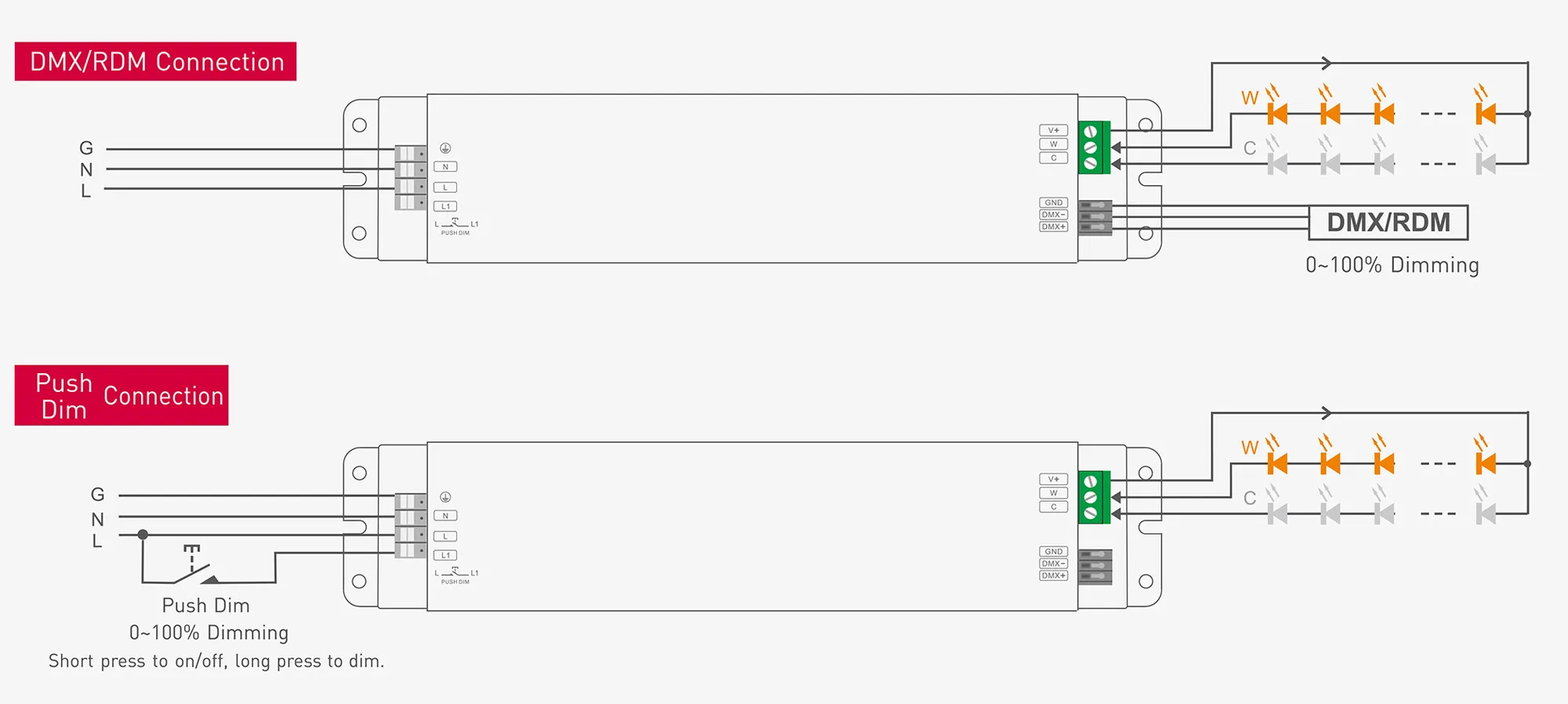

Dimming ProtocolDMX512/RDM, Push DIM, PWM
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)150W (±5%)
Input Voltage (V)100-240V~50/60Hz
Input Current (A)0.65A
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
SELVYes
EMV/EMCYes
Additional CertificationIEEE-PAR 1790
IEC CompliantIEC/EN61347-1, IEC/EN61347-2-13
Number of Cartons1
Carton Length (cm)28.5cm
Carton Width (cm)6.3cm
Carton Height (cm)4.3cm
Carton CBM0.0008
Carton Nett Weight (kg)0.79kg (±5%)
Carton Gross Weight (kg)0.79kg (±5%)
Additional DetailsHigh Power Factor and Efficiency, Control dimming/CT lamps. Low THD, OverVoltage/Over Current/Overload /Over Heat and Short circuit protections. Flicker free dimming.
UK Commodity Code8543709990
Country of OriginChina
