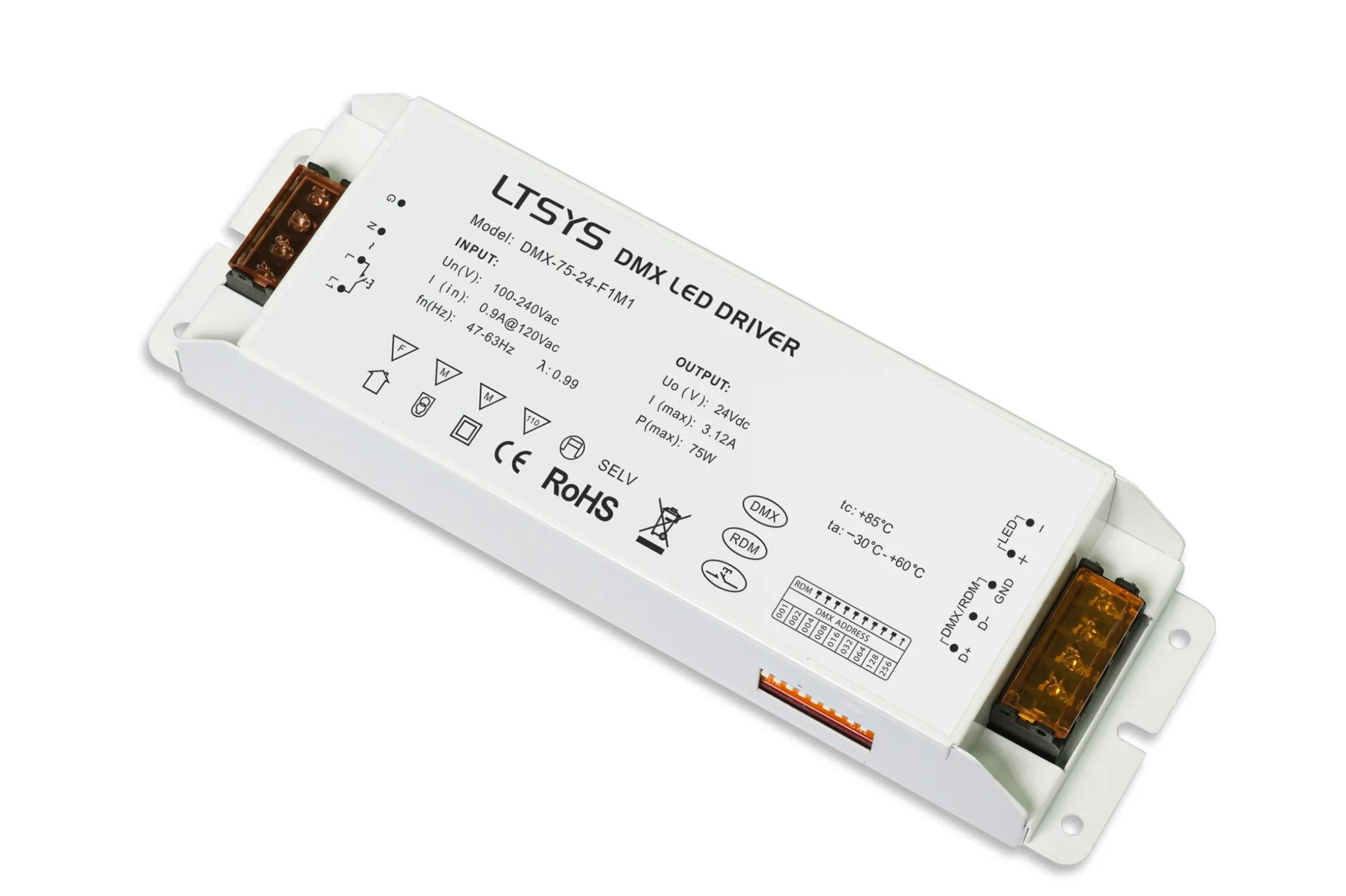

Push Dim PWM 75W Voltage Dimmable Driver 12V

Push Dim, PWM, 75W, C. Voltage Dimmable Driver, 24V, Max Current Output:3.12A, EFF>87%, 3yrs Warranty

DMX-75-24-F1M1

Qty: Order Item Add to Wishlist

LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionPush Dim PWM 75W Voltage Dimmable Driver 12V
Colour FinishWhite
Item Nett Weight (kg)0.48kg

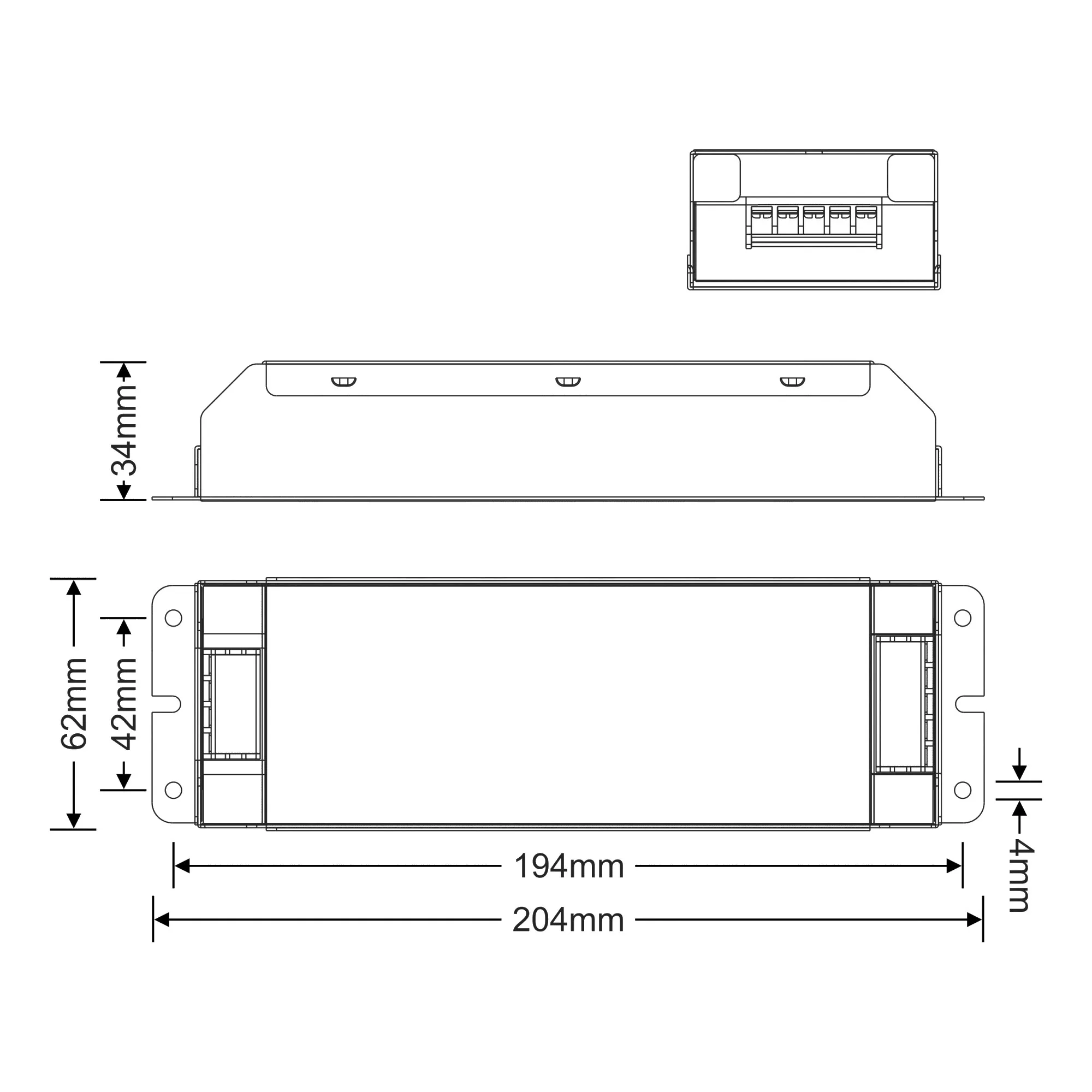

Length (mm)204mm
Width (mm)62mm
Height (mm)34mm
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Warranty (yrs)3yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupDMX Constant Voltage
Brief DescriptionPush Dim PWM 75W Voltage Dimmable Driver 12V
Colour FinishWhite
Item Nett Weight (kg)0.48kg
Length (mm)204mm
Width (mm)62mm
Height (mm)34mm
Type of DriverConstant Voltage
Dimming Range (%)0-100%
Power Factor (?)>0.99 (±5%)
Constant Voltage Output (V)24V DC
Max. Current Output (A)3.12A
Load Range (W)0-75W
Connection TerminalScrew Terminal

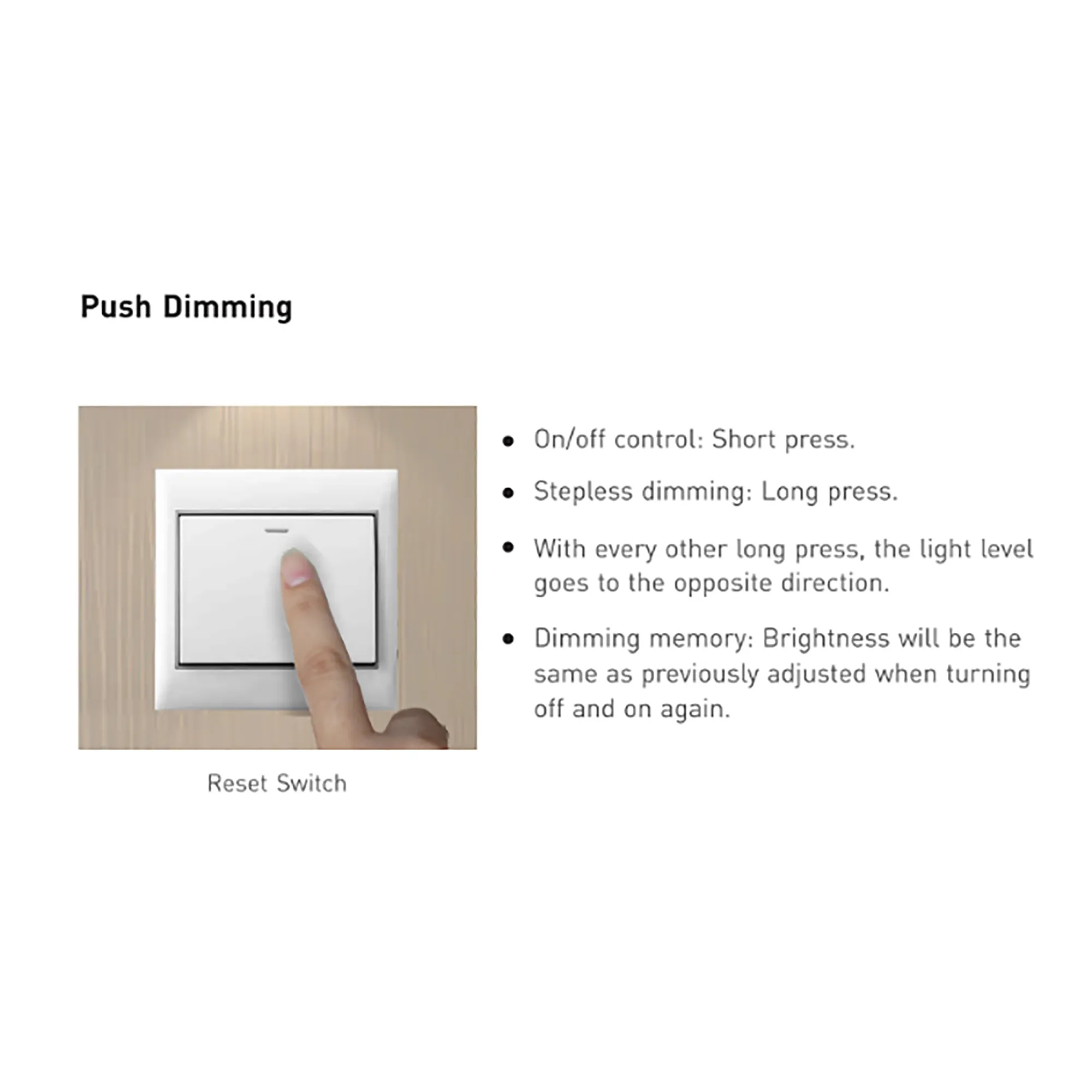

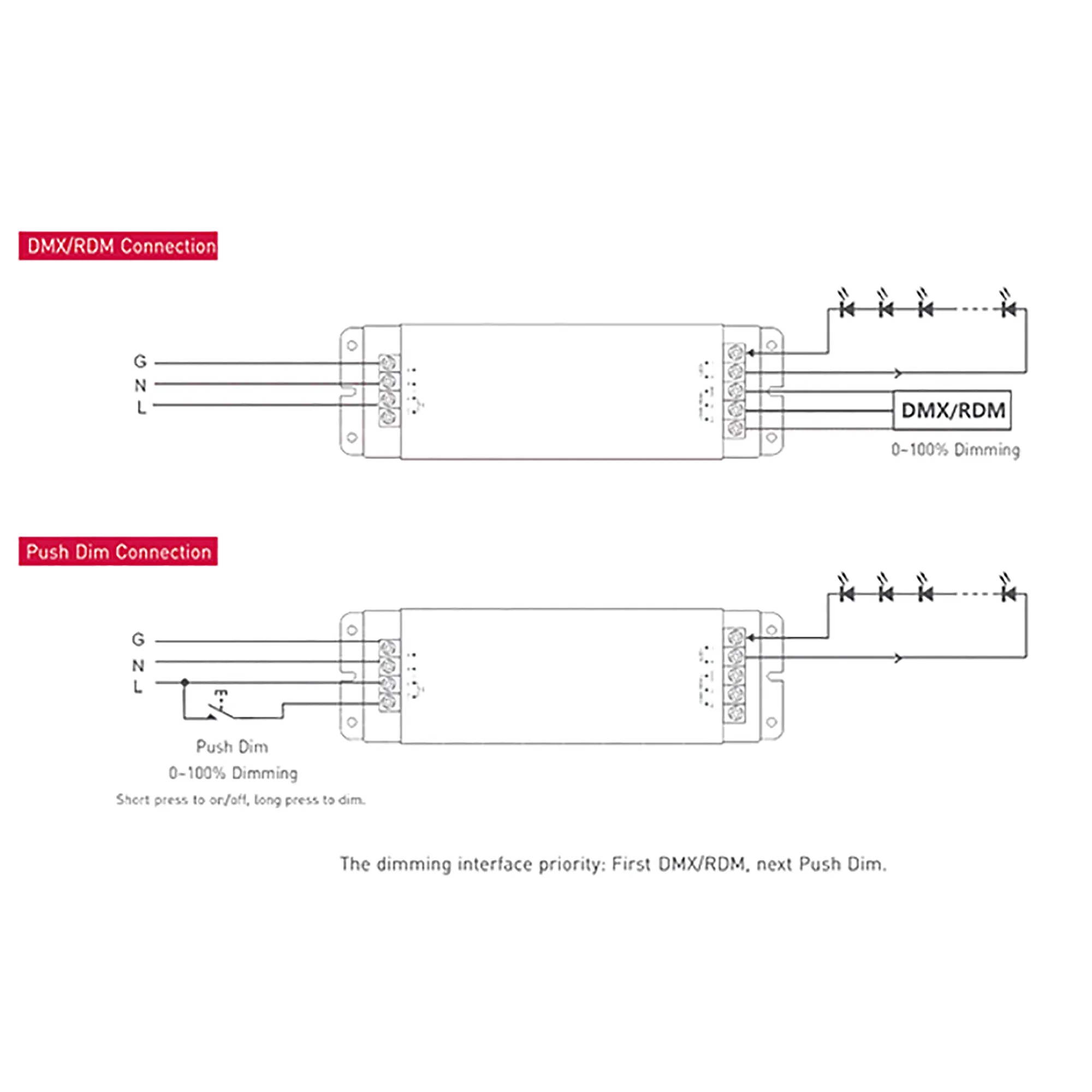

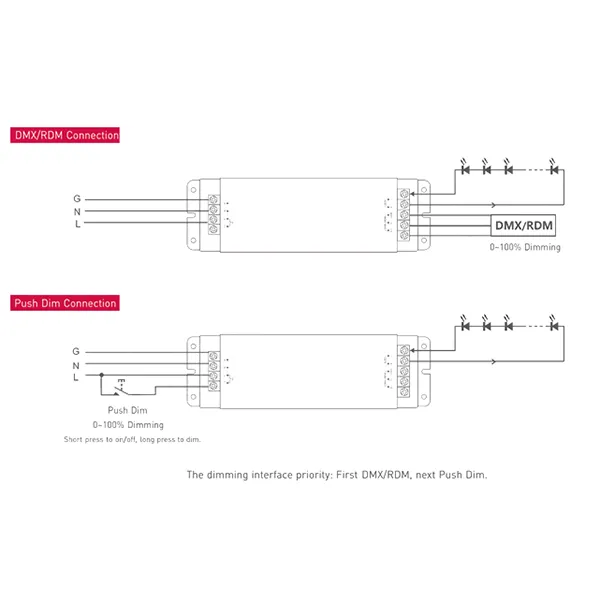

Dimming ProtocolDMX512/RDM, Push Dim, PWM
Efficiency>87%
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)75W (±5%)
Input Voltage (V)100-240V~50/60Hz
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Warranty (yrs)3yrs
UKCA/CEYes
RohsYes
SELVYes
EMV/EMCYes
Number of Cartons1
Carton Length (cm)20.6cm
Carton Width (cm)6.4cm
Carton Height (cm)3.9cm
Carton CBM0.0005
Carton Nett Weight (kg)0.48kg (±5%)
Carton Gross Weight (kg)0.490kg (±5%)
UK Commodity Code8504401400
Country of OriginChina
