DMX512/RDM/Push DIM/CCT, 0-100% Dim, CV 150W, 12Vdc 12.5A, 200-240Vac, IP20, 5yrs Warranty.

Intelligent LED driver, DMX512/RDM/Push DIM/CCT, 0-100% Dim, CV 150W, CCT Adjusting 2700-6500K, 12V DC 12.5A O/P, 200-240Vac I/P, IP20, 5yrs Warrenty.

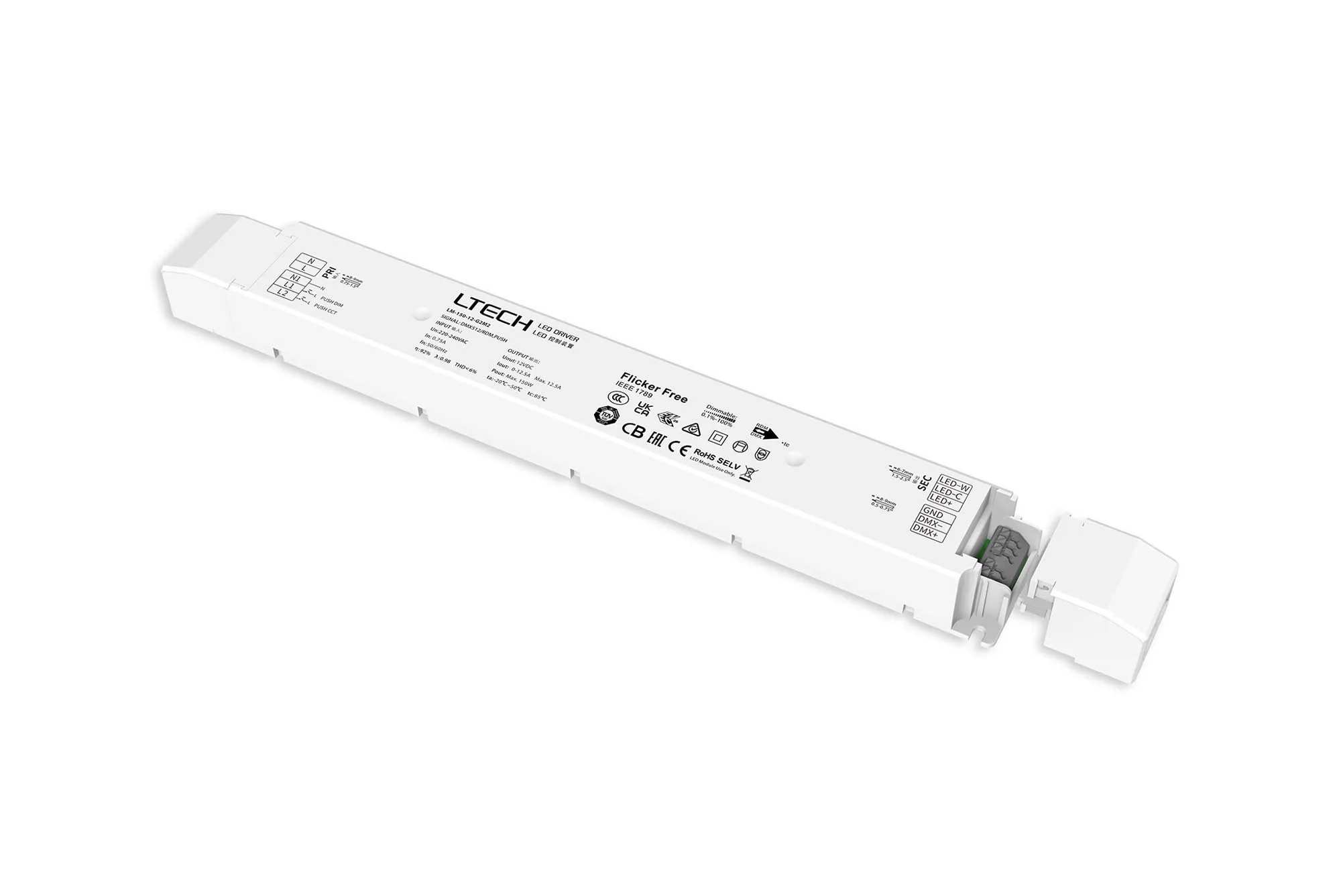

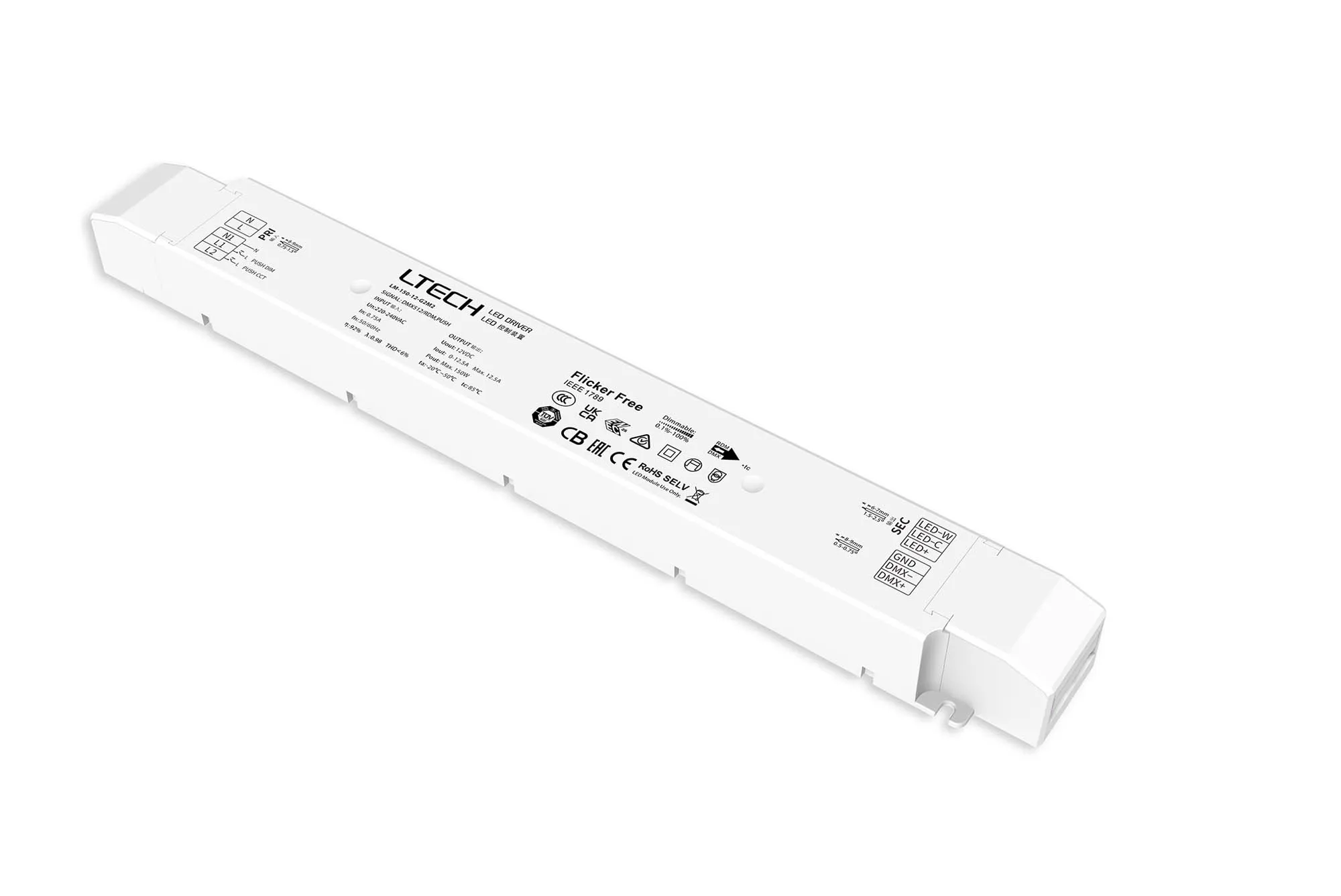

LM-150-12-G2M2

Qty: Order Item Add to Wishlist

DMX512/RDM/Push DIM/CCT, Flicker-free 0-100% dimming, 2 independently SELV constant voltage output channels, DMX/RDM DIM and Colour temperature adjusting driver, Colour temperature adjusting range: 2700-6500K, Supports RDM remote device management protocol. Standby Power Loss < 0.5W.Over-heat/Over voltage/Overload/Short circuit protection, Recover automatically.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionDMX512/RDM/Push DIM/CCT, 0-100% Dim, CV 150W, 12Vdc 12.5A, 200-240Vac, IP20, 5yrs Warranty.
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupDMX Constant Voltage
Brief DescriptionDMX512/RDM/Push DIM/CCT, 0-100% Dim, CV 150W, 12Vdc 12.5A, 200-240Vac, IP20, 5yrs Warranty.
Type of DriverDMX Constant Voltage
Load Range (W)0-150W
Average Life Of Driver (hrs)50000hrs
Dimming ProtocolDMX512/RDM/Push DIM/CCT
Total Power Consumption (W)150W (±5%)
Input Voltage (V)200-240V~50/60Hz
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Number of Cartons1
UK Commodity Code8537109990
Country of OriginChina
