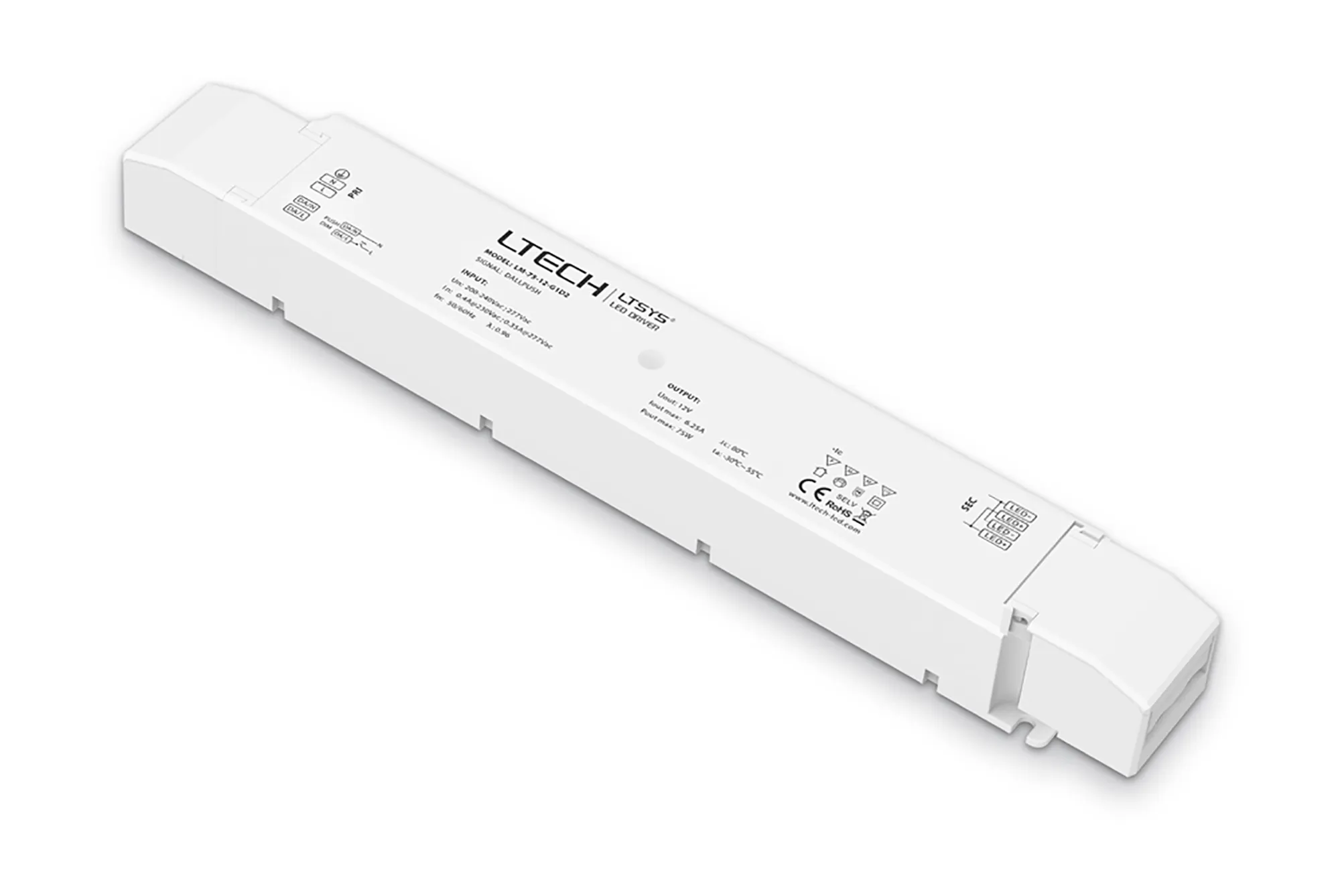

DALI Push Dim PWM 75W C. Voltage Linear Dimmable Driver 12V

DALI, Push Dim, PWM, 75W, C. Voltage Linear Dimmable Driver, 12V, Max Current Output:6.25A, EFF>91.5%, 5yrs Warranty

LM-75-12-G1D2

Qty: Order Item Add to Wishlist

0-100% flicker-free, High frequency exemption level, High Efficicient driver, Innovative thermal management technology, intelligent power life protection.Over-heat / Over voltage / Over load / Short circuit protection, recover automatically. DALI bus standard: IEC62386-101,102, 207. Suitable for internal lights application for I/II/III.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionDALI Push Dim PWM 75W C. Voltage Linear Dimmable Driver 12V
Colour FinishWhite
Item Nett Weight (kg)0.28kg
Length (mm)292mm
Width (mm)43mm
Height (mm)30mm
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupDMX Constant Voltage
Brief DescriptionDALI Push Dim PWM 75W C. Voltage Linear Dimmable Driver 12V
Colour FinishWhite
Item Nett Weight (kg)0.28kg
Length (mm)292mm
Width (mm)43mm
Height (mm)30mm
Type of DriverConstant Voltage
Dimming Range (%)0-100%
Power Factor (?)>0.96 (±5%)
Constant Voltage Output (V)12V DC
Max. Current Output (A)6.25A
Load Range (W)0-75W
Connection TerminalPush Terminal

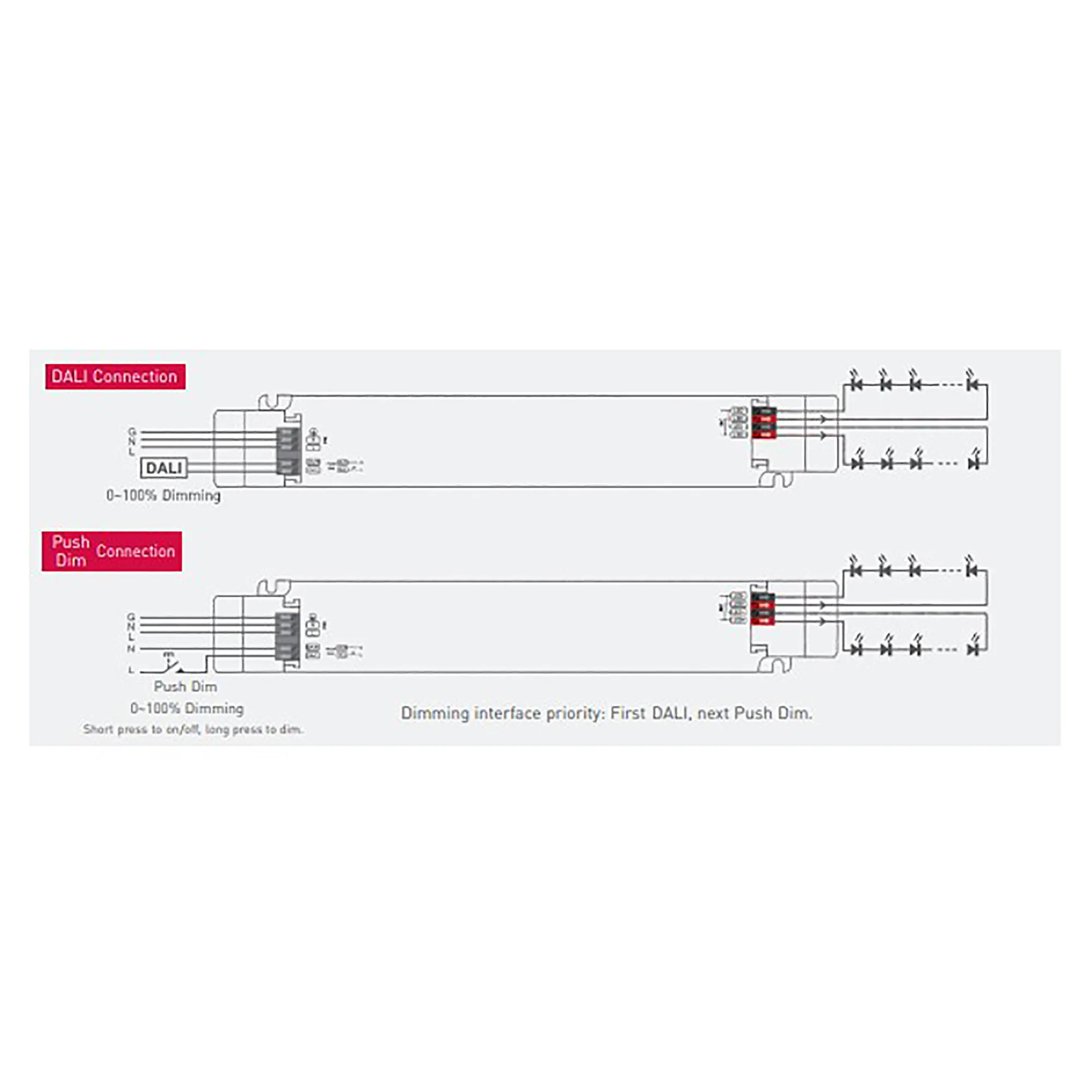

Dimming ProtocolDALI, Push Dim, PWM
Efficiency>91.5%
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)75W (±5%)
Input Voltage (V)200-240V~50/60Hz
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
SELVYes
EMV/EMCYes
Number of Cartons1
Carton Length (cm)29.6cm
Carton Width (cm)4.4cm
Carton Height (cm)3.3cm
Carton CBM0.0004
Carton Nett Weight (kg)0.28kg (±5%)
Carton Gross Weight (kg)0.30kg (±5%)
UK Commodity Code8504401400
Country of OriginChina
