DMX512/RDM, 0-100% Dim, CC 10W, 2-12Vdc 350-700mA O/P, 100-240Vac input, IP20, 5yrs Warranty.

Intelligent LED driver, DMX512/RDM, 0-100% Dimming, CC 10W, 2-12Vdc 350/400/450/500/550/600/650/700mA output, 100-240Vac input, IP20, 5yrs Warrenty.

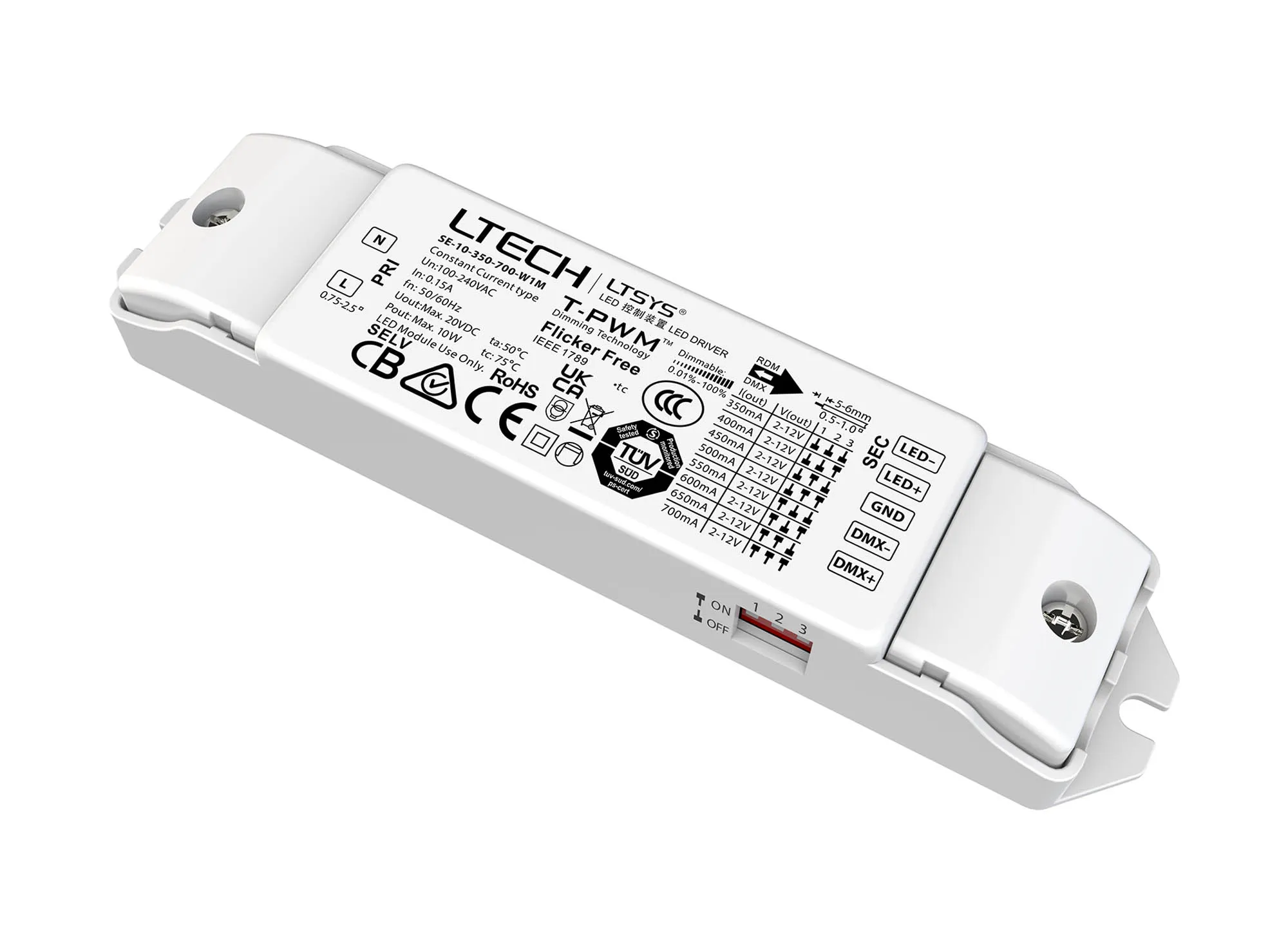

SE-10-350-700-W1M

Qty: Order Item Add to Wishlist

DMX/RDM Dimming Constant Current LED Driver, RDM remote device management protocol, PWM digital dimming, Wide Dimming range.0-100% flicker-free, achieve the level of high frequency exemption assessment. Class 2 power supply, Suitable for indoor use.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionDMX512/RDM, 0-100% Dim, CC 10W, 2-12Vdc 350-700mA O/P, 100-240Vac input, IP20, 5yrs Warranty.
Colour FinishWhite
Item Nett Weight (kg)0.08kg

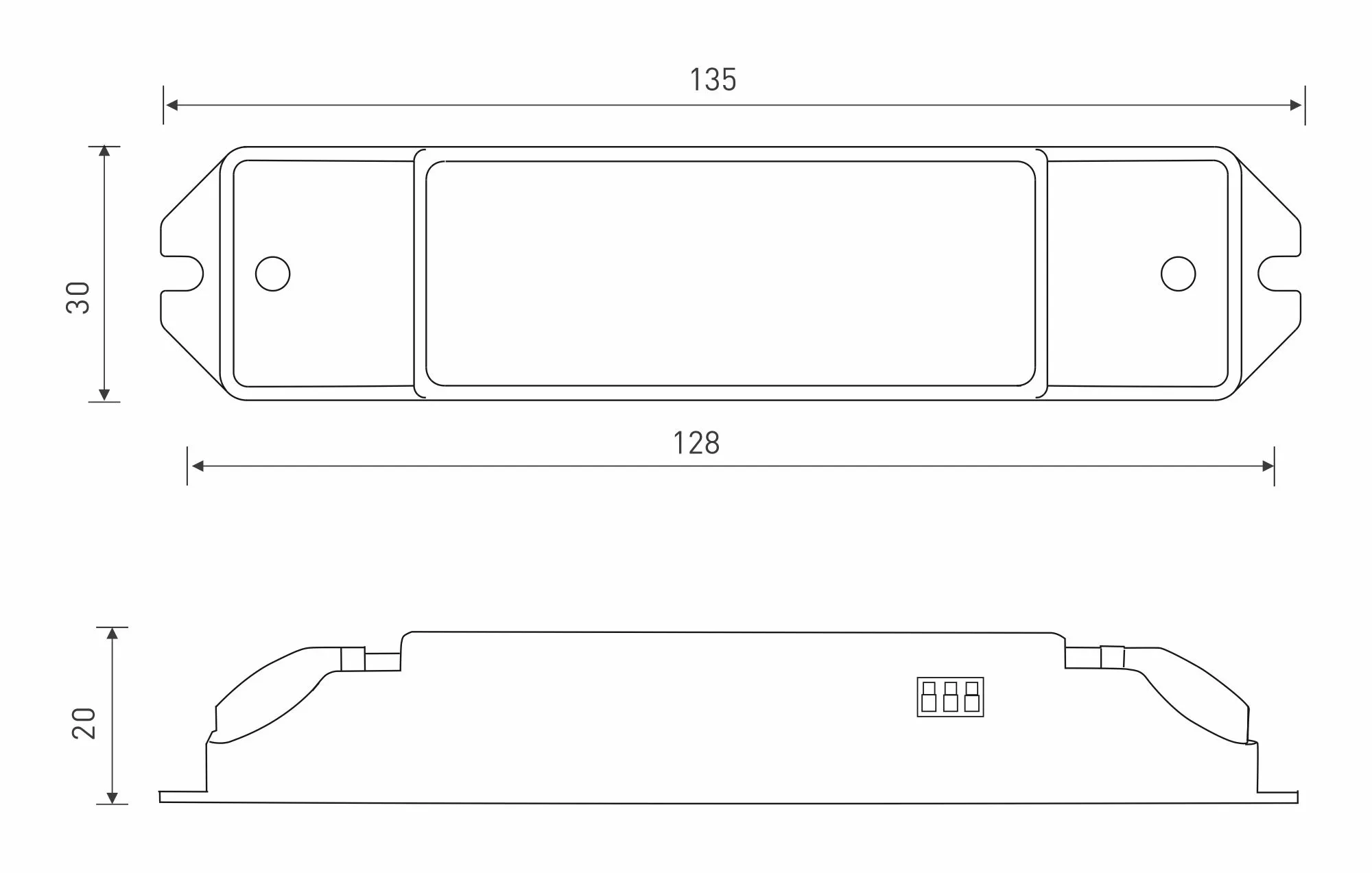

Length (mm)135mm
Width (mm)30mm
Height (mm)20mm
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupDMX Constant Voltage
Brief DescriptionDMX512/RDM, 0-100% Dim, CC 10W, 2-12Vdc 350-700mA O/P, 100-240Vac input, IP20, 5yrs Warranty.
Colour FinishWhite
Item Nett Weight (kg)0.08kg
Length (mm)135mm
Width (mm)30mm
Height (mm)20mm
Type of DriverDMX Constant Current
Dimming Range (%)0-100%
Power Factor (?)>0.95? (±5%)
Ta (°C)-20° to +50°C
Tc (°C)90°C
Casing MaterialPolycarbonate
Connection TerminalPush Terminal
Average Life Of Driver (hrs)50000hrs
Dimming ProtocolDMX512/RDM, PWM
Efficiency>0.75
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)10W (±5%)
Input Voltage (V)200-240V~50/60Hz
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Additional CertificationIEEE-PAR 1789
IEC CompliantIEC/EN61347-1, IEC/EN61347-2-13
Number of Cartons1
UK Commodity Code8543709990
Country of OriginChina
