DMX512/RDM, DALI-2 DT6/DT8, Push DIM/RGB, 0-100% Dim  Constant voltage  24V 150W 6.25A,200-240Vac , IP20, 5yrs Warranty

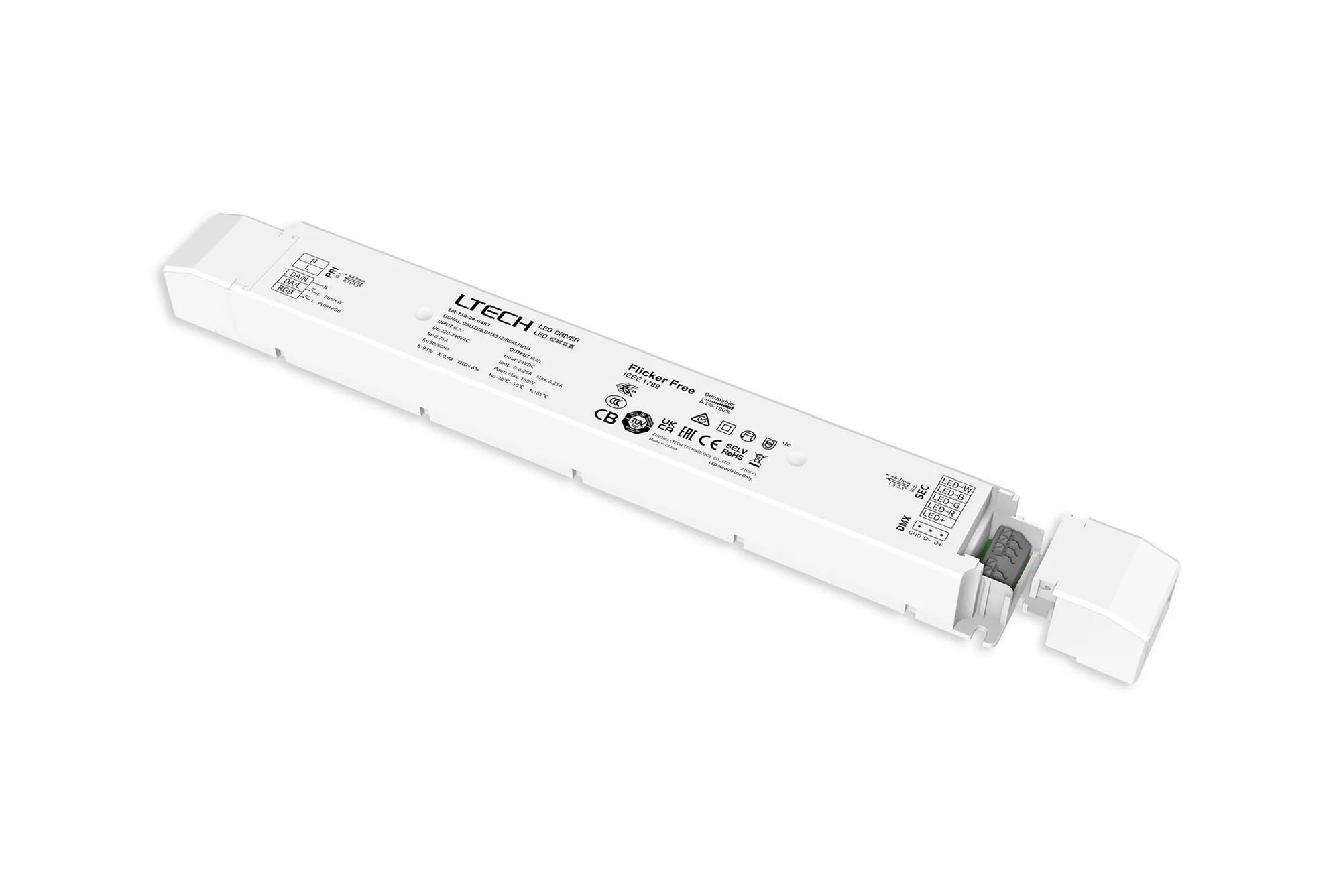

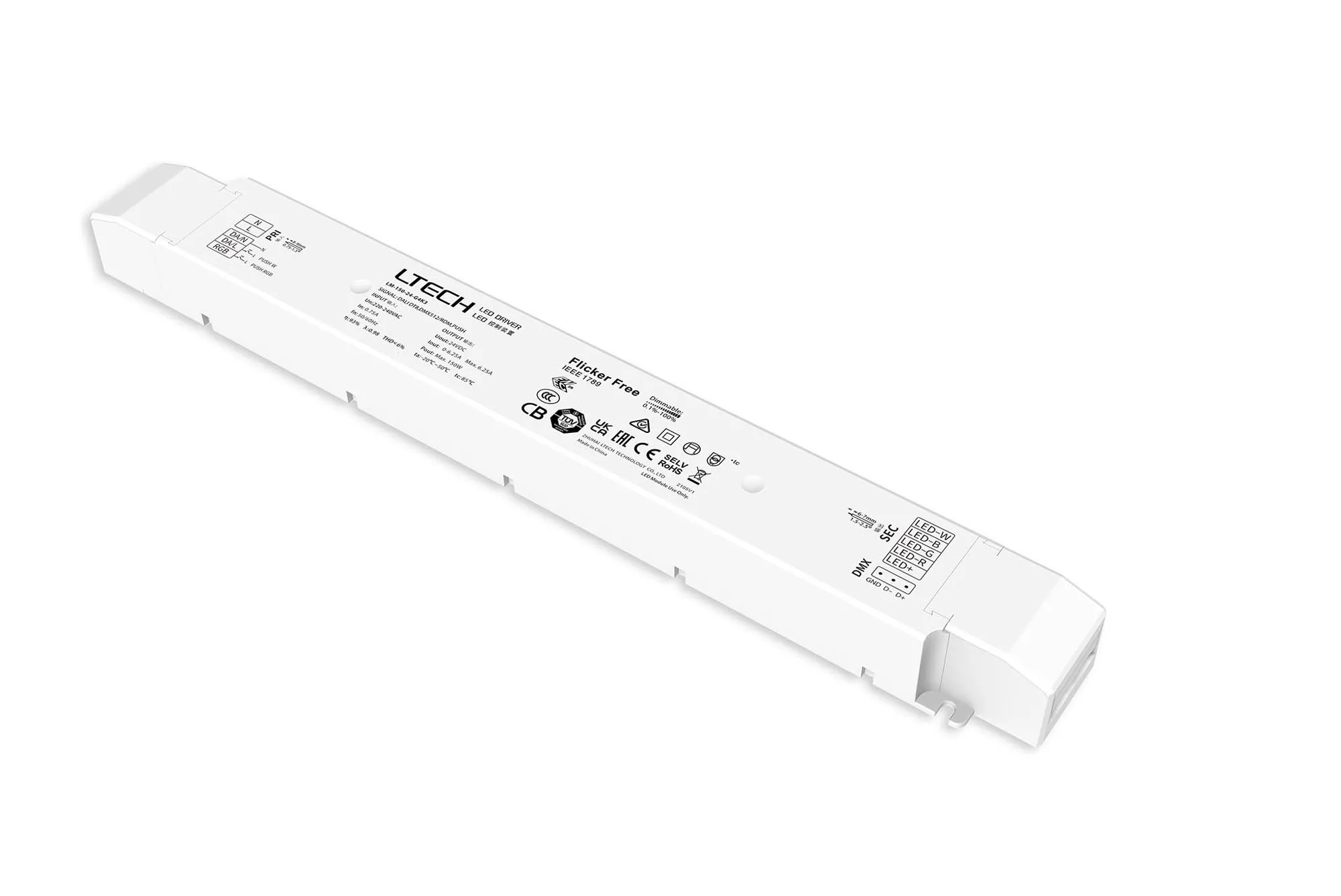

Intelligent Full Color RGBW LED driver DMX512/RDM,DALI-2 DT6/DT8,Push Dim/RGB PWM,150W,C.Voltage,24V,DC 6.25A x 4CH, EFF>93%, IP20, 5 Years Warranty

LM-150-24-G4K3

Qty: Order Item Add to Wishlist

Multiple Dimming Interface, Dimming from 0~100%, down to 0.1% ,Energy-efficient driver: Effeciency 93%, PF>0.98, THD<6%.The secure and reliable design for signal isolation, Innovative thermal management technology intelligently protects the life of the LED driver.
LTECH is a front-runner in the field of LED lighting controller. As the first high-end manufacturer in China and one of the leading suppliers in the world, they have engaged in R&D of LED lighting control technology since 2001. As an intelligent lighting technology enabler, LTECH has developed hundreds of intelligent LED controlling technologies, which creates a more efficient, energy-saving, healthy and comfortable lighting life. Widely applied to the global lighting industry, innovative produc Show More...
To Follow
Quick Spec
Brief DescriptionDMX512/RDM, DALI-2 DT6/DT8, Push DIM/RGB, 0-100% Dim Constant voltage 24V 150W 6.25A,200-240Vac , IP20, 5yrs Warranty
Item Nett Weight (kg)0.43kg
Length (mm)352mm
Width (mm)43mm
Height (mm)30mm
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupDMX Constant Voltage
Brief DescriptionDMX512/RDM, DALI-2 DT6/DT8, Push DIM/RGB, 0-100% Dim Constant voltage 24V 150W 6.25A,200-240Vac , IP20, 5yrs Warranty
Item Nett Weight (kg)0.43kg
Length (mm)352mm
Width (mm)43mm
Height (mm)30mm
Type of DriverDMX Constant Voltage
Dimming Range (%)0-100%
Load Range (W)0-150W
Casing MaterialPlastic
Average Life Of Driver (hrs)50000hrs
Dimming ProtocolDMX512/RDM, DALI-2 DT6/DT8, Push DIM/RGBW
Total Power Consumption (W)150W (±5%)
Input Voltage (V)200-240V~50/60Hz
Input Current (A)?0.75A/230Vac
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Working Humidity (%RH)20~95%RH
Average Life (hrs)50000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
EMV/EMCYes
Number of Cartons1
Carton Length (cm)37cm
Carton Width (cm)35cm
Carton Height (cm)10.5cm
Carton CBM0.0136
Carton Nett Weight (kg)8.9kg (±5%)
Carton Gross Weight (kg)9.2kg (±5%)
UK Commodity Code8537109990
Country of OriginChina
