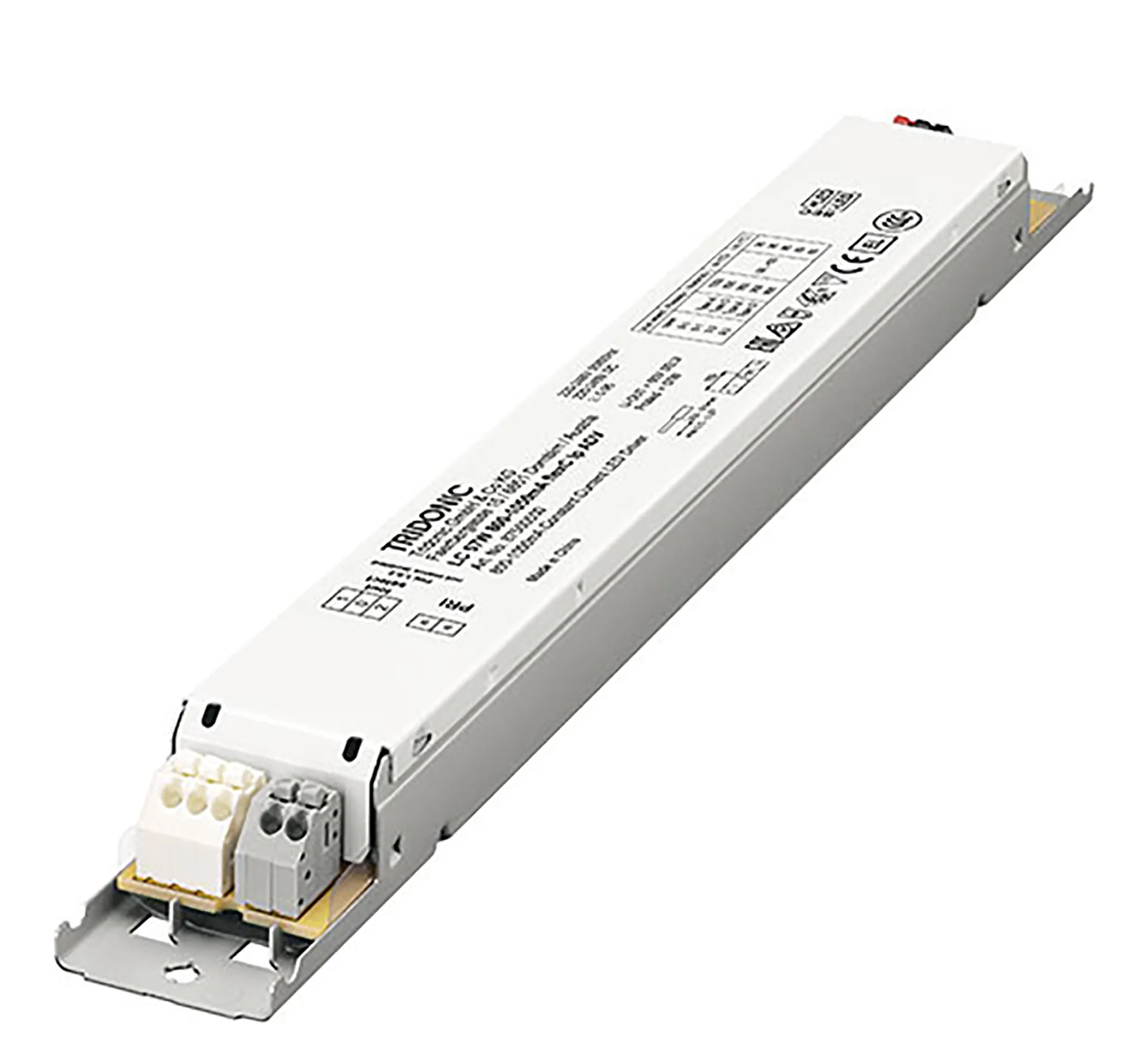

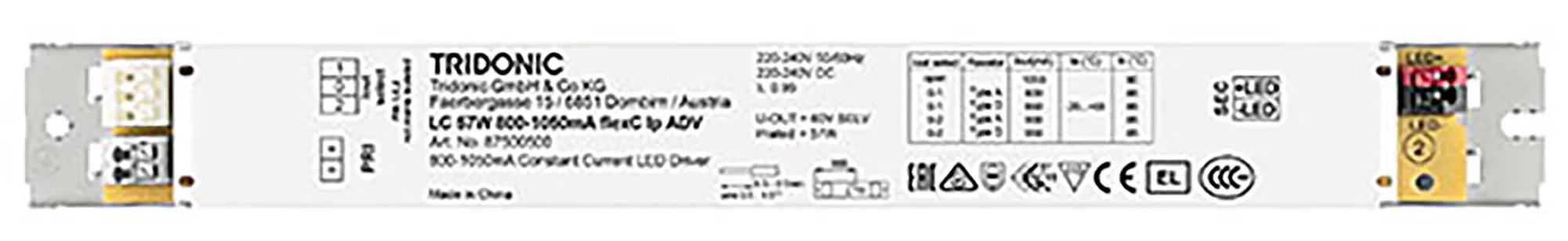

57W 800-1050mA fixC SR SNC ESSENCE Constant Current LED Driver

Tridonic, LC 57W 800/850/900/950/1050mA fixC SR SNC, LED Converter Compact SNC - ESSENCE, Made In PRC, 5yrs Warranty

87500500

Qty: Order Item Add to Wishlist

Built-in constant current LED Driver, New version DC operating with EL marking, Adjustable output current between 800 and 1050 mA, Long life time and high efficiency, For luminaires of protection class I and protection class II, Temperature protection as per EN 61347-2-13 C5e.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description57W 800-1050mA fixC SR SNC ESSENCE Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.191kg
Length (mm)268mm
Width (mm)30mm
Height (mm)21mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
Features
Overload protection, Short-circuit protection, Over temperature protection and No-load protection.Burst protection voltage 1 kV. Surge protection voltage 1 kV (L to N), Surge protection voltage 2 kV (L/N toE arth).Suitable for emergency lighting systems acc. to EN 50172.
Full Specifications
Collection GroupLC
BarcodeTo Follow
Brief Description57W 800-1050mA fixC SR SNC ESSENCE Constant Current LED Driver
Colour FinishWhite
Item Nett Weight (kg)0.191kg
Length (mm)268mm
Width (mm)30mm
Height (mm)21mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Type of DriverConstant Current
Dimming Range (%)Non Dimmable
Power Factor (?)>0.95 (±5%)
Constant Current Output (mA)800-1050mA
Min/Max. Voltage Output (V)20-54V
Load Range (W)43.2-57W
Typical Current Ripple (%)±5%
Maximum Output Distance (m)2m
Ta (°C)-20° to 45°C
Tc (°C)90°C
Casing MaterialMetal Body
Connection TerminalPush-Fit
Dimming ProtocolON/OFF
Efficiency0.83
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)57W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.32A
DimmableNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Number of Cartons1
Carton Length (cm)26.8cm
Carton Width (cm)3.0cm
Carton Height (cm)2.0cm
Carton CBM0.0002
Carton Nett Weight (kg)0.191kg (±5%)
Carton Gross Weight (kg)0.191kg (±5%)
Additional DetailsTridonic, LC 57W 800-1050mA fixC SR SNC
UK Commodity Code85044090
Country of OriginChina
