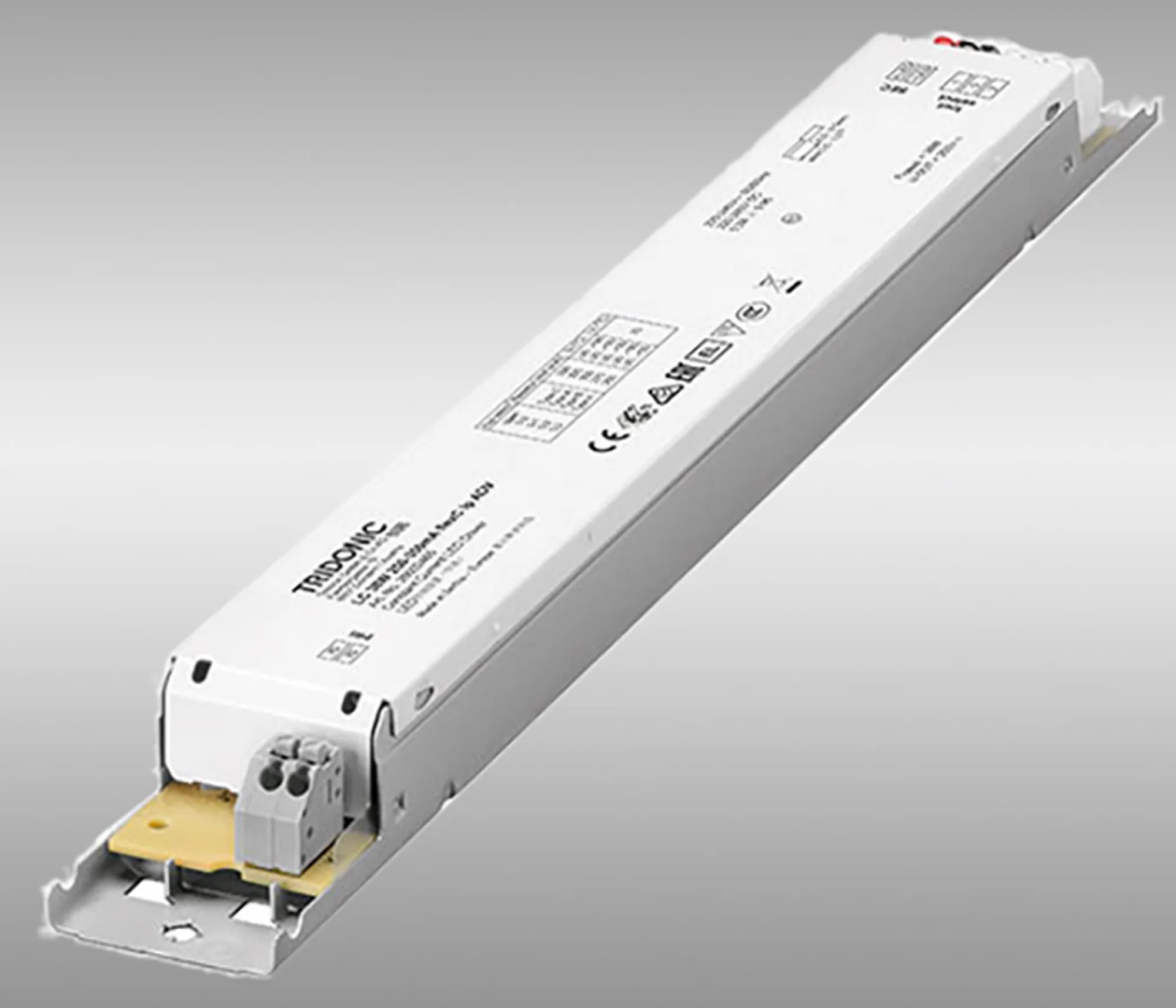

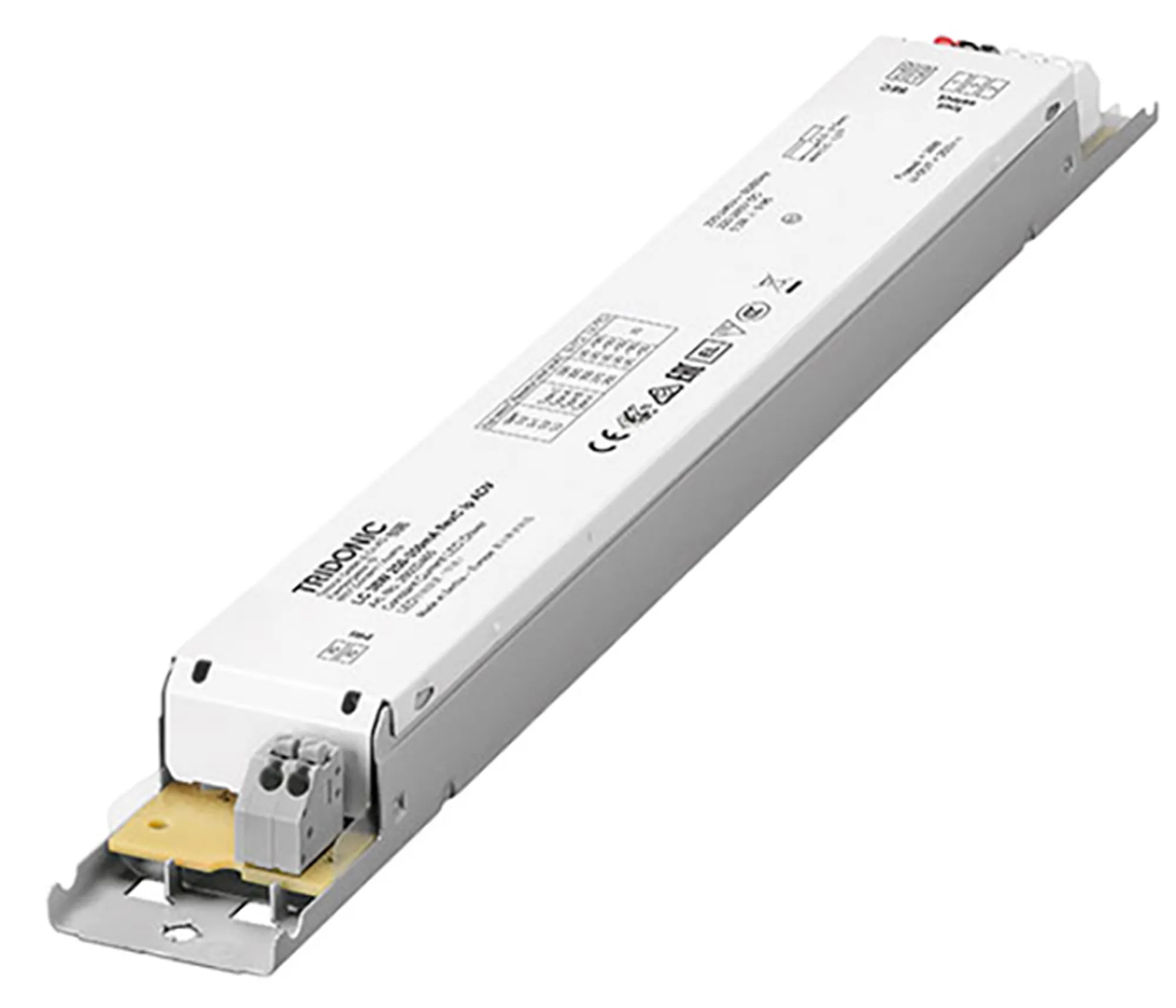

38W 250-350mA flexC lp ADV Constant Current Fixed current LED Driver, 51V-109Vdc out put, IP20.

Tridonic, LC 38W 250/275/300/325/350mA flexC lp ADV, Fixed LED Converter Compact advanced series non-SELV, 5yrs Warranty.

28002465

Colour Finish :
White

Qty: Order Item Add to Wishlist

Built-in constant current LED Driver, Long life time and high efficiency, For luminaires of protection class I and protection class II, Temperature protection as per EN 61347-2-13 C5e.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description38W 250-350mA flexC lp ADV Constant Current Fixed current LED Driver, 51V-109Vdc out put, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.161kg

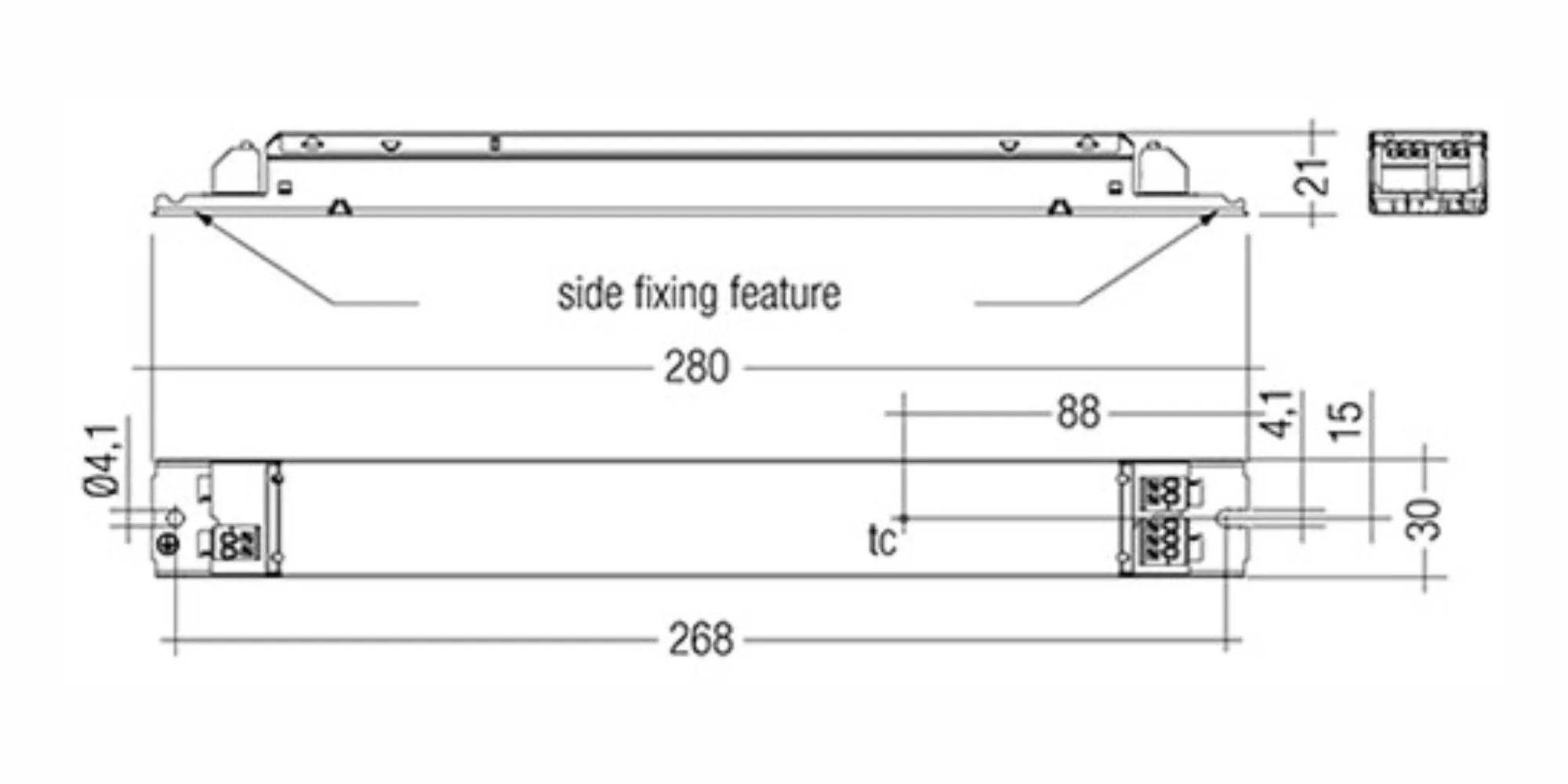

Length (mm)268mm
Width (mm)30mm
Height (mm)21mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
Features
Features, Will be added soon
Full Specifications
Collection GroupLC
Brief Description38W 250-350mA flexC lp ADV Constant Current Fixed current LED Driver, 51V-109Vdc out put, IP20.
Colour FinishWhite
Item Nett Weight (kg)0.161kg
Length (mm)268mm
Width (mm)30mm
Height (mm)21mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80hrs (±5%)
Type of DriverConstant Current
Dimming Range (%)Non Dimmable
Power Factor (?)>0.95? (±5%)
Constant Current Output (mA)250-350mA
Min/Max. Voltage Output (V)51-109V
Load Range (W)27.3-38.2W
Typical Current Ripple (%)(±5%)
Maximum Output Distance (m)2m
Ta (°C)-20° to 50°C
Tc (°C)70°C
Casing MaterialMetal Body
Connection TerminalPush-Fit
Dimming ProtocolON/OFF
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)38W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.2A
DimmableNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVNo
Number of Cartons50
Carton Length (cm)26.8cm
Carton Width (cm)3.0cm
Carton Height (cm)2.1cm
Carton Nett Weight (kg)0.161kg (±5%)
Carton Gross Weight (kg)0.161kg (±5%)
UK Commodity Code8504318050
Country of OriginSerbia
