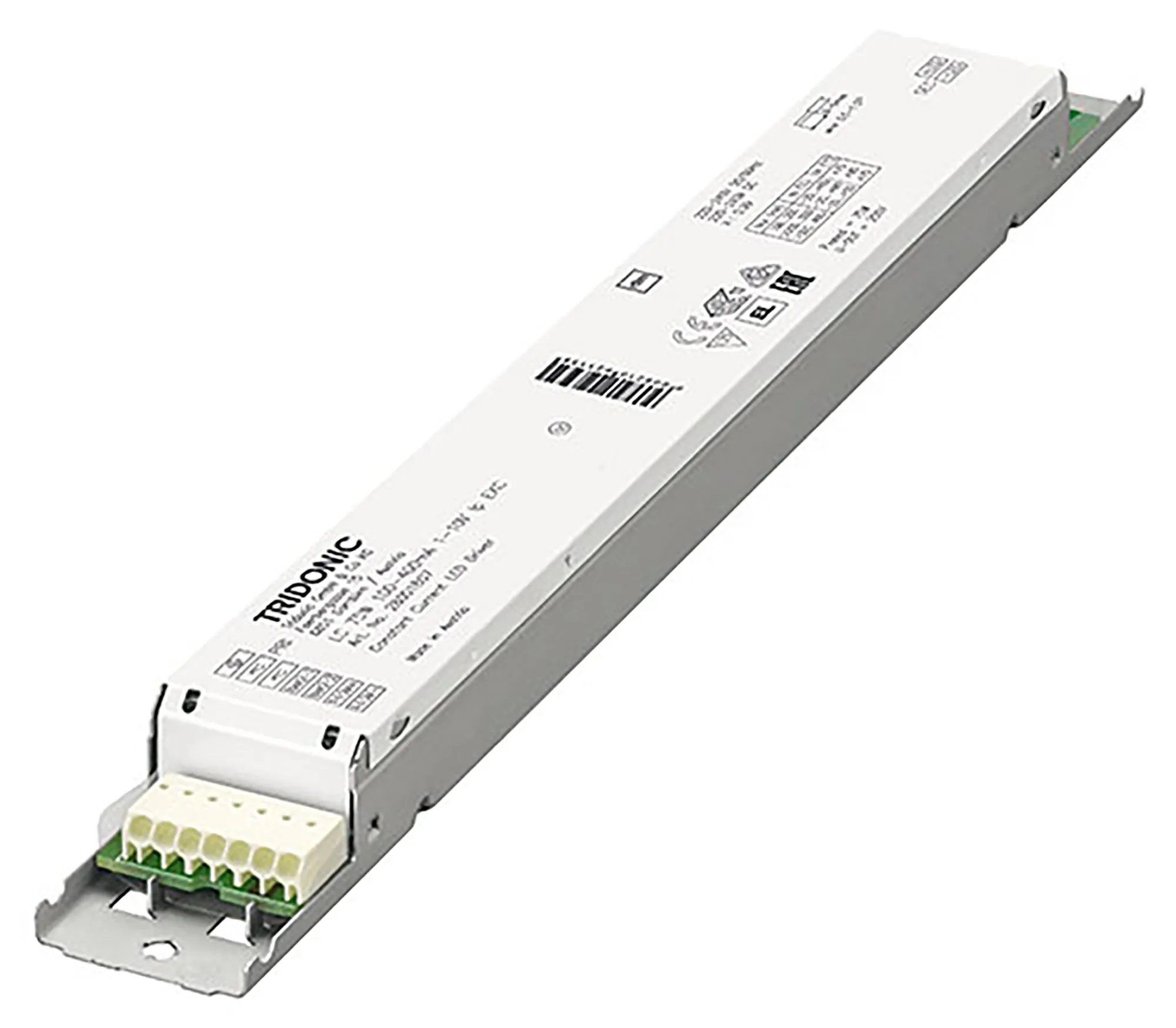

75W 75W 100–400mA 1-10V lp EXC Constant Current 1-10V Dimming LED Driver, Dimming range 10 – 100 %, IP20, 5yrs Warranty.

Tridonic, LC 75W 100–400mA 1-10V lp EXC, Constant Current LED Converter Linear Excite 1–10V Dimmable non-SELV series, Made In Austria, 5yrs Warranty

28001807

Colour Finish :
White

Qty: Order Item Add to Wishlist

Constant current LED Driver, Adjustable output current , 1-10V dimmable, High efficency and life time, Suitable for luminaires of protection class I and protection class II. Metal cover, Push terminal for easy installation.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description75W 75W 100–400mA 1-10V lp EXC Constant Current 1-10V Dimming LED Driver, Dimming range 10 – 100 %, IP20, 5yrs Warranty.
Colour FinishWhite
Item Nett Weight (kg)0.189kg

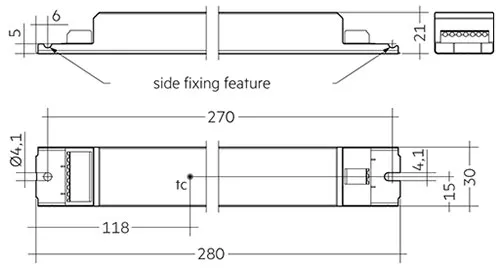

Length (mm)280mm
Width (mm)30mm
Height (mm)21mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
Features
Adjustable output current (ready2mains, I-SELECT2), Protective features (Over temperature, short-circuit, overload, noload, input voltage range), Suitable for emergency escape lighting systems acc. to EN 50172.
Full Specifications
Collection GroupLC
Brief Description75W 75W 100–400mA 1-10V lp EXC Constant Current 1-10V Dimming LED Driver, Dimming range 10 – 100 %, IP20, 5yrs Warranty.
Colour FinishWhite
Item Nett Weight (kg)0.189kg
Length (mm)280mm
Width (mm)30mm
Height (mm)21mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80hrs (±5%)
Type of DriverConstant Current
Dimming Range (%)10-100%
Power Factor (?)>0.99 (±5%)
Constant Current Output (mA)100-400mA
Min/Max. Voltage Output (V)50-220V
Load Range (W)22-75W
Typical Current Ripple (%)(±5%)
Maximum Output Distance (m)2m
Ta (°C)-25° to +55°C
Tc (°C)75°C
Casing MaterialMetal Body
Connection TerminalTerminal Block
Dimming Protocol1-10V
Efficiency0.94
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)75W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.360A
DimmableYes - Suitable Dimmer Required
Dimmer IncludedNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVNo
Number of Cartons1
Carton Length (cm)28.0cm
Carton Width (cm)3.0cm
Carton Height (cm)2.1cm
Carton CBM0.0002
Carton Nett Weight (kg)0.189kg (±5%)
Carton Gross Weight (kg)0.191kg (±5%)
Additional DetailsTridonic, LC 75W 100-400mA 1-10V lp EXC
UK Commodity Code8504318050
Country of OriginAustria
