38W 500-700mA flexC lp ADV, Constant Current LED driver

Tridonic LC 38W 500-700mA flexC lp ADV ,Linear Constant Current, Fixed Output-SELV

87500498

Qty: Order Item Add to Wishlist

Constant current LED Driver, Adjustable output current , High efficency and life time, Suitable for luminaires of protection class I and protection class II. Metal cover, Push terminal for easy installation.
Tridonic is a world-leading supplier of lighting technology, supporting its customers with intelligent hardware and software and offering the highest level of quality, reliability and energy savings. As a global driver of innovation in the field of lighting-based network technology, Tridonic develops scalable, future-oriented solutions that enable new business models for lighting manufacturers, building managers, systems integrators, planners and many other types of customers. Tridonic has been Show More...
To Follow
Quick Spec
Brief Description38W 500-700mA flexC lp ADV, Constant Current LED driver
Colour FinishWhite
Item Nett Weight (kg)0.188kg

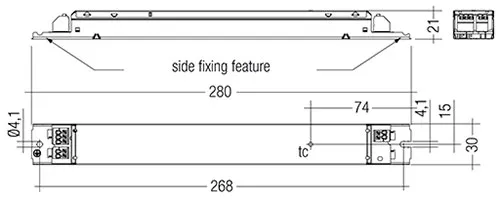

Length (mm)268mm
Width (mm)30mm
Height (mm)21mm
Energy ClassA++ to A
Protection ClassClass 2 - Double Insulated
DimmableNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
Features
Overload protection, Short-circuit protection, Over temperature protection and No-load protection.Burst protection voltage 1 kV. Surge protection voltage 1 kV (L to N), Surge protection voltage 2 kV (L/N toE arth).Suitable for emergency lighting systems acc. to EN 50172.
Full Specifications
Collection GroupLC
BarcodeTo Follow
Brief Description38W 500-700mA flexC lp ADV, Constant Current LED driver
Colour FinishWhite
Item Nett Weight (kg)0.188kg
Length (mm)268mm
Width (mm)30mm
Height (mm)21mm
Energy ClassA++ to A
Max Energy ClassA++
Min Energy ClassA
Lumen Maintenance (hrs)50000hrs / LM80 (±5%)
Type of DriverConstant Current
Dimming Range (%)Non Dimmable
Power Factor (?)>0.95 (±5%)
Constant Current Output (mA)500-700mA
Min/Max. Voltage Output (V)20-54V
Load Range (W)27-38W
Typical Current Ripple (%)±5%
Maximum Output Distance (m)2m
Ta (°C)-20° to +50°C
Tc (°C)80°C
Casing MaterialMetal Body
Connection TerminalPush-Fit
Dimming ProtocolON/OFF
Efficiency0.95
Protection ClassClass 2 - Double Insulated
Total Power Consumption (W)38W (±5%)
Input Voltage (V)220-240V~50/60Hz
Input Current (A)0.22 A
DimmableNo
IP RatingIP20
Average Life (hrs)100000hrs
Warranty (yrs)5yrs
UKCA/CEYes
RohsYes
ENECYes
SELVYes
Number of Cartons1
Carton Length (cm)26.8cm
Carton Width (cm)3.0cm
Carton Height (cm)2.0cm
Carton CBM0.0002
Carton Nett Weight (kg)0.188kg (±5%)
Carton Gross Weight (kg)0.188kg (±5%)
Additional DetailsTridonic LC 38W 500-700mA flexC lp ADV, Constant Current LED driver
UK Commodity Code85044090
Country of OriginChina
